High Precision Tool Setting Machine Test Cnc Calibration Tester Probe

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

PO40 Machine Tool Probes

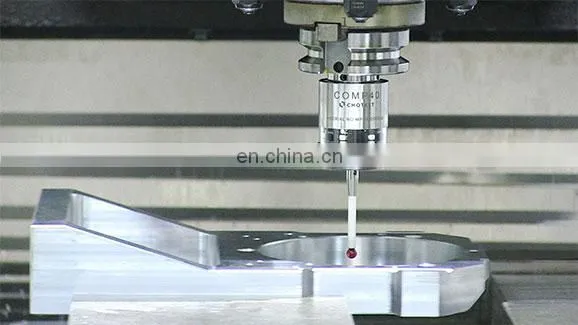

Machine tool probe PO series applies 3-point trigger design which is the most stable structure. There is a trigger unit inside the probe. When the stylus is moved radially or axially by external force, the trigger unit is triggered. Then the circuit inside of probe sends a triggering signal to the receiver, and the receiver transmits it to the machine tool, consequently the present coordinates of each axis of the machine tool are recorded automatically. Finally measurement results are calculated according to the coordinate records of related points.

FEATURES AT A GLANCE

Product Functions

1. Before CNC processing, automatically find the coordinate system and datum point of the workpiece.
2. In CNC processing, automatically measure the key sizes and related coordinates to determine whether compensation is required or not.
3. After CNC processing, automatically measure the sizes, shapes, and positions to qualify finished product.

Products Features

1. High repeatability: One-way repeatability <1μm
2. Long standby time: As long as 6 months
3. Omnidirectional energy-absorbing design: 360° omnidirectional energy-absorbing design, which help to cushion the spindle in
impact when an operating accident occurs
4. Waterproof design: IP67 for probe and receiver
5. Intelligent LED indicators: Show current working status of the probe

PRODUCT SPECIFICATIONS

1. Technical parameters of the probe:
1) Battery: Two 1/2AA 3.6V lithium batteries;
2) Storage temperature: (-25~70)℃;
3) Working temperature: (5~55)℃;

Model No.	COMP40	COMP60	COLP40
Size(Probe)	Dia.40 mm× L50mm	Dia.63 mm× L76mm	Dia.40 mm× L52mm
Weight(Probe Without Holder)	260 g	880 g	280 g
Transmission Type	360° IR	360° IR	360° IR
Transmission Distance	5m	6m	5m
Starting Mode: Code M	Code M	Code M, Revolve	Code M
Rotational Speed	Max 1000rev/min	Max 1000rev/min	Max 1000rev/min
Triggering Direction	±X/±Y/+Z	±X/±Y/+Z	±X/±Y/+Z
Repeatability of One-way triggering 2δ(1)	1um	2um	1um
Max overrun(2)	XY:12.5mm +Z:6mm	XY:12.5mm +Z:6mm	XY:12.5mm +Z:6mm
XY Trigger Force(3)	0.5 N~0.9N	0.5 N~3.5N Adjustable	0.3N~1.6N Adjustable
Z Trigger Force	5.8N	3.5N~14N Adjustable	4N~10N Adjustable

*Note

(1): Test with a 50mm straight stylus under speed 480mm/min.
(2): Test with a 50mm straight stylus
(3): Test with a 50mm straight stylus under speed 480mm/min.

2. Technical parameters of the receiver:

1) Transmission type: IR, 360°;
2) Working range: Max 8m
3) Weight: 926g
4) Input voltage: 12V~30V
5) Input current: <100mA, receiving <40mA;
6) Cable to machine controller: dedicated 13PIN shielded cable, 8 meters or 15 meters;
7) Storage temperature: (-25~70)℃,working temperature: (5~55)℃;

Products Application

1. Coordinate setting: set datum point of workpiece, correct coordinate system of workpiece.
2. Align workpiece: Inspect whether the workpiece is placed accurately, and whether the workpiece is deformed by force of clamping fixture.
3. Dimension measurement: stage height, length, diameter
4. Position measurement: holes distance, perpendicularity, angle, etc.
5. Curved-surface measurement: blade shape, mold surface, complex shape
6. After-processing inspection: Find the over-tolerance, correct tool compensation
7. Check whether the workpiece is placed
