Product Overview
VX3030D Image Dimension Measurement System
Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX3000 series of Flash Measuring Machines achieve fast dimensional measurement by one-key operation. VX3000 series are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.
FEATURES AT A GLANCE
Product Functions
1. Fast, effective
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control
charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range
chart).
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control
charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range
chart).
PRODUCT SPECIFICATIONS
|
Model No.
|
VX3030D
|
||||
|
Image Senor
|
5M CMOS
|
||||
|
Monitor
|
Built-in
|
10.4" LCD (XGA: 1024×768)
|
|||
|
External
|
24" LCD (XGA: 1920×1080)
|
||||
|
Acceptance Lens
|
Double Telecentric Lens
|
||||
|
Illumination system
|
Casting Illumination System
|
Four-segment illumination(White Light)
|
|||
|
Ring directional illumination(Green Light)
|
|||||
|
Transmission Illumination System
|
Telecentric transmission illumination(Green Light)
|
||||
|
Field of View
|
Wide-Field Mode
|
20*L130
|
|||
|
High-Precision Mode
|
6*L116
|
||||
|
Resolution
|
0.1μm
|
||||
|
|
Wide-Field Mode
|
W/o stage movement
|
±0.5μm
|
||
|
With stage movement
|
±1μm
|
||||
|
High-Precision Mode
|
W/o stage movement
|
±0.1μm
|
|||
|
With stage movement
|
±0.5μm
|
||||
|
Accuracy
|
Without binding*1
|
Wide-Field Mode
|
±2μm
|
||
|
High-Precision Mode
|
±0.7μm
|
||||
|
With binding*2
|
Wide-Field Mode
|
±(4+0.02L)μm
|
|||
|
High-Precision Mode
|
±(2+0.02L)μm
|
||||
|
Software
|
VisionX
|
||||
|
Stage
|
X Moving Range
|
110mm(Motorized)
|
|||
|
Y Moving Range
|
----------------
|
||||
|
Z Moving Range
|
35mm(Motorized)
|
||||
|
Loading Capacity
|
2kg
|
||||
|
Size(LxWxH)
|
500×280×670mm
|
||||
|
Weight
|
30kg
|
||||
|
Power supply
|
100-240VAC,50/60Hz,2A, Power 300W
|
||||
|
Working Environment
|
Temp.10℃~35℃, Humidity 20%~80%, Vibration<0.002g, Less than15Hz
|
||||
Note:
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the
moving range of the table (mm).
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the
moving range of the table (mm).

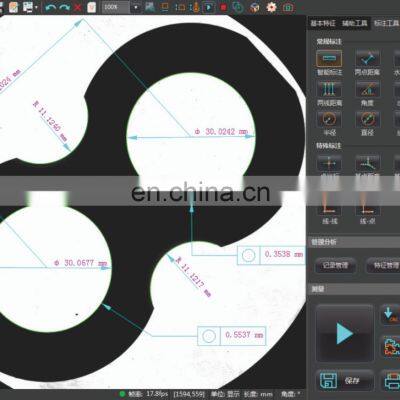

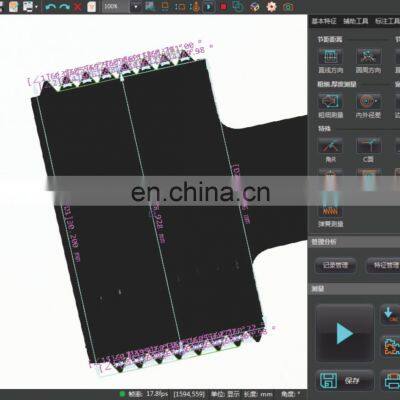

Products Application
More Application
Product packaging
1. VX3000 series of host machine 1pc
2. Built-in monitor 1pc
3. Power adapter 1pc
4. Cables 1set
5. VisionX software 1pc
6. User Manual 1pc
7. Product certificate and warranty card 1set
2. Built-in monitor 1pc
3. Power adapter 1pc
4. Cables 1set
5. VisionX software 1pc
6. User Manual 1pc
7. Product certificate and warranty card 1set
