Product Description

Product Overview

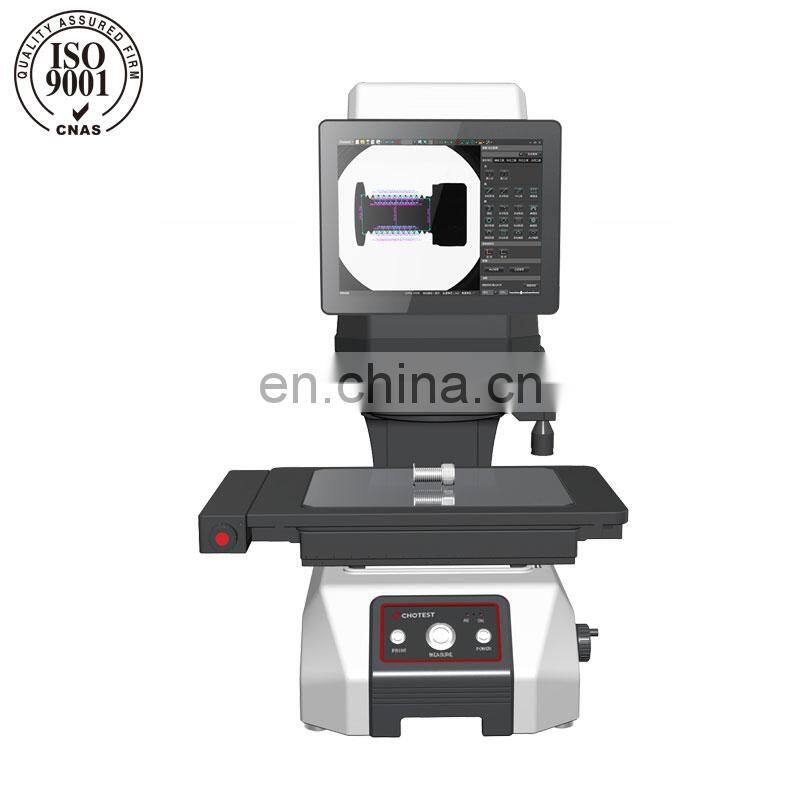

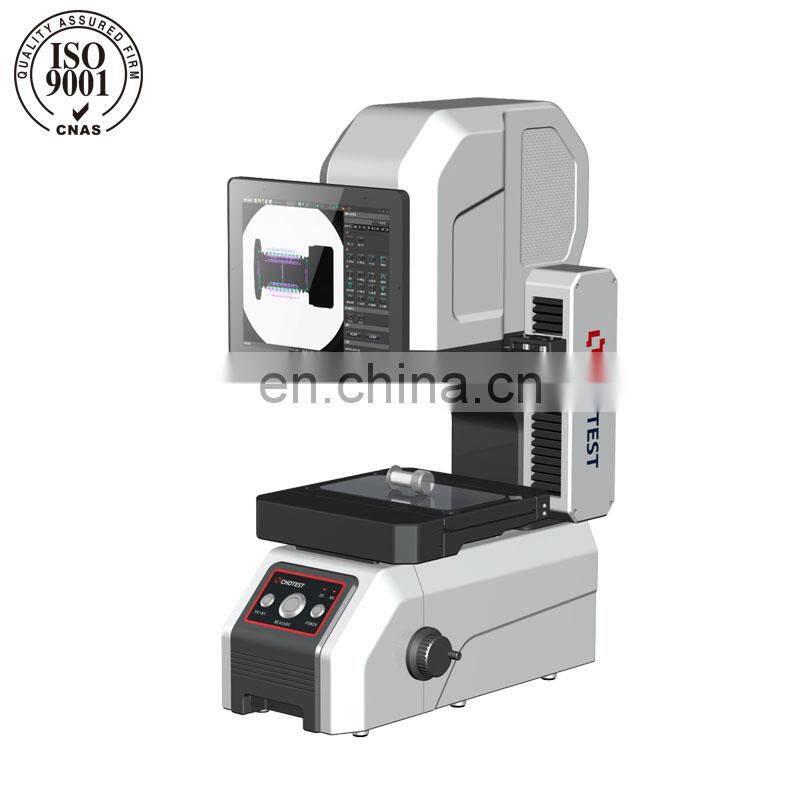

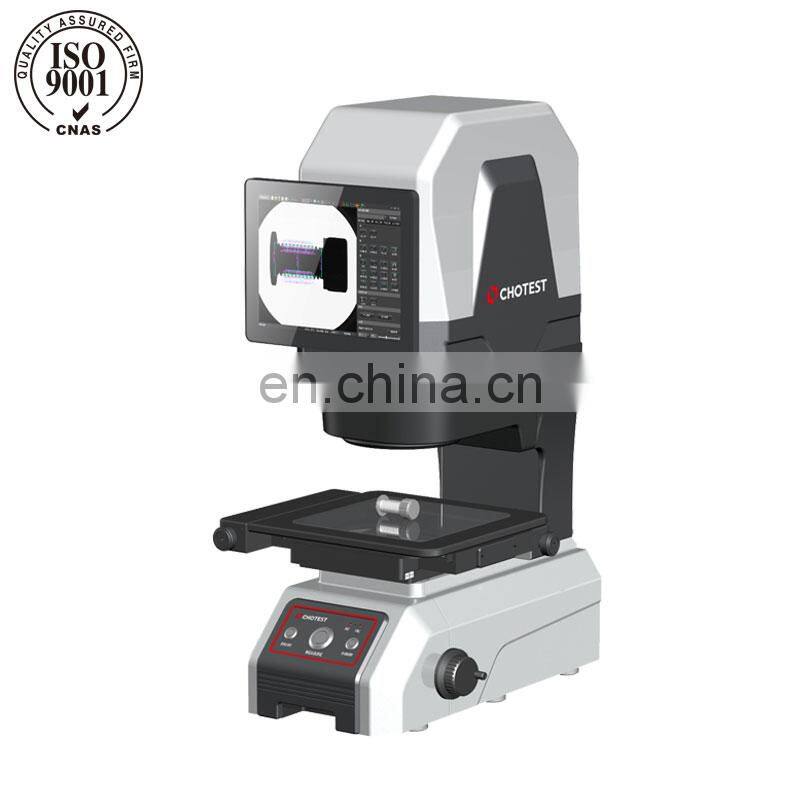

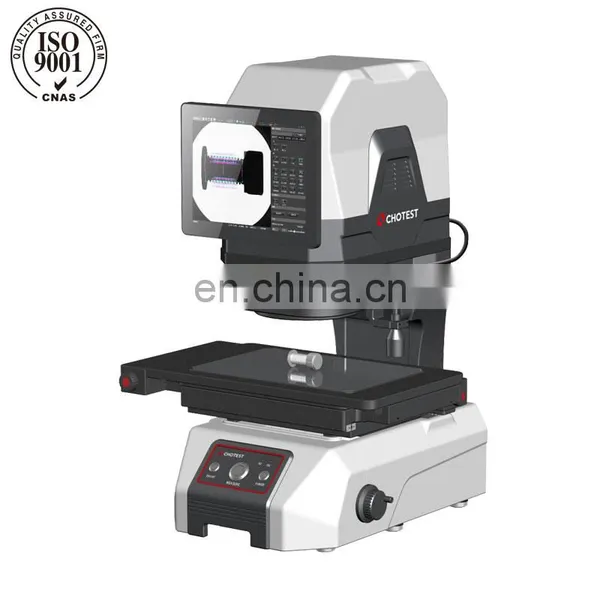

VX3030D Image Dimension Measurement System

Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX3000 series of Flash Measuring Machines achieve fast dimensional measurement by one-key operation. VX3000 series are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.

FEATURES AT A GLANCE

Product Functions

1. Fast, effective
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control
charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range
chart).

PRODUCT SPECIFICATIONS

Model No.					VX3030D
Image Senor					5M CMOS
Monitor	Built-in			10.4" LCD (XGA: 1024×768)
Monitor		External			24" LCD (XGA: 1920×1080)
Acceptance Lens					Double Telecentric Lens
Illumination system	Casting Illumination System			Four-segment illumination(White Light)
	Casting Illumination System					Ring directional illumination(Green Light)
		Transmission Illumination System			Telecentric transmission illumination(Green Light)
Field of View	Wide-Field Mode			20*L130
Field of View		High-Precision Mode			6*L116
Resolution					0.1μm
Repeatability	Wide-Field Mode	W/o stage movement	±0.5μm
	Wide-Field Mode			With stage movement	±1μm
		High-Precision Mode	W/o stage movement	±0.1μm
		High-Precision Mode		With stage movement	±0.5μm
Accuracy	Without binding*1	Wide-Field Mode	±2μm
	Without binding*1			High-Precision Mode	±0.7μm
		With binding*2	Wide-Field Mode	±(4+0.02L)μm
		With binding*2		High-Precision Mode	±(2+0.02L)μm
Software					VisionX
Stage	X Moving Range		110mm(Motorized)
		Y Moving Range			----------------
		Z Moving Range			35mm(Motorized)
		Loading Capacity			2kg
Size(LxWxH)					500×280×670mm
Weight					30kg
Power supply					100-240VAC,50/60Hz,2A, Power 300W
Working Environment					Temp.10℃~35℃, Humidity 20%~80%, Vibration<0.002g, Less than15Hz

Note:
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the
moving range of the table (mm).

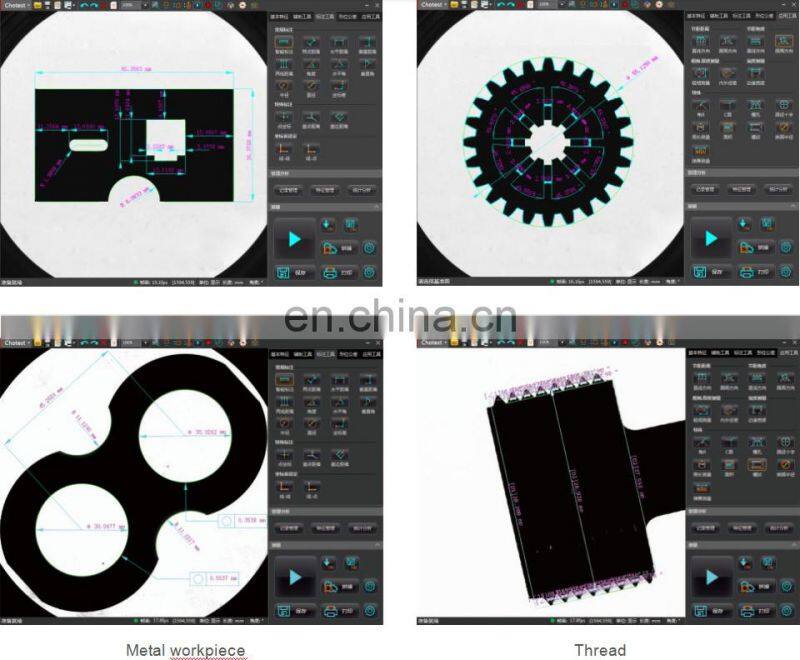

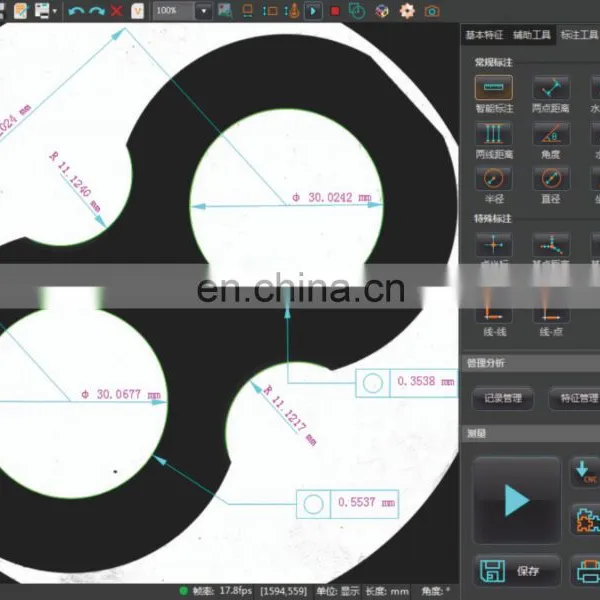

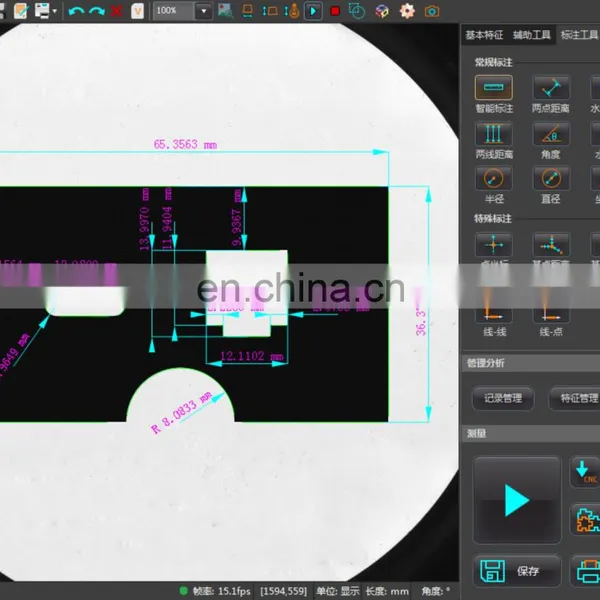

Products Application

More Application

Product packaging

1. VX3000 series of host machine 1pc
2. Built-in monitor 1pc
3. Power adapter 1pc
4. Cables 1set
5. VisionX software 1pc
6. User Manual 1pc
7. Product certificate and warranty card 1set

SIMILAR PRODUCTS

FAQ

1. Are you factory?
Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.

2. How many years experience do you have?
We have 16 years experience on measurement instruments and calibration instruments since 2002.

3. What size of your factory?
We have 5000 square meters of factory and 2,000 square meters of modern office

4. Can you accept OEM and ODM?
No, we only sell the products under Chotest brand.

5. Can I become your distributor of China supplier Chotest laser measuring system for Straightness measurement?
Yes, please contact our sales engineer.

6. What is the lead time?
Lead time is 30-60days in usual.

7. What is your payment term?
30% deposit first, balance payment before delivery.
We accept T/T, L/C.

8. How to install the machine?
We dispatch our engineers to install and debug the machine in site of the customer.

9. What is your warranty term?
We provide 1 year warranty after acceptance inspection by customer.
Free repair or replacement in 1 year warranty in case of any problem.
Response in 12 hours for emails or calls from customers in working days.
