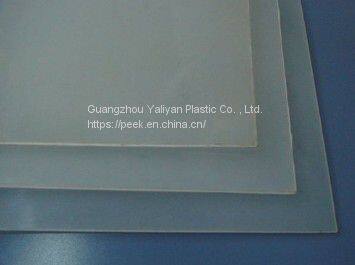

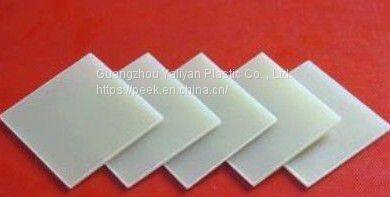

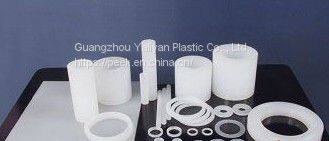

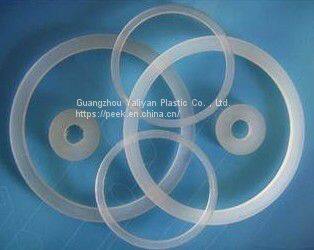

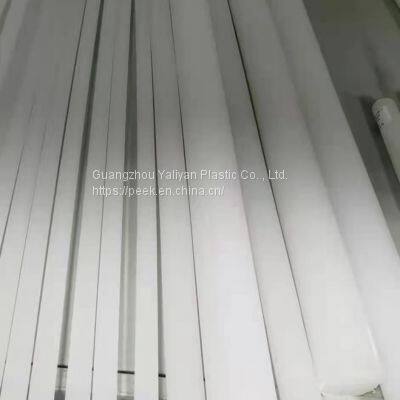

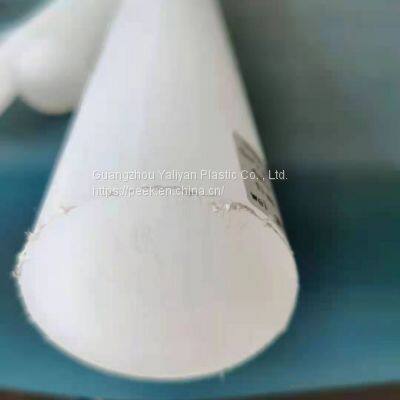

PCTFE Rod Polytrifluoride PCTFE Plate

PCTFE plate PCTFE rod polytrifluoride PCTFE plate PCTFE rod polytrifluoride

PCTFE plate PCTFE rod is a product of trifluorochloroethylene radical initiated polymerization with a linear backbone with a predominantly repeat CF(Cl) -CF2 -unit. PCTFE plate is a crystalline polymer with a melting point of 425F and a density of 2.13g/cc (g/ cubic centimeter). PCTFE plates are inert to most active chemicals at room temperature, but can be dissolved by a few solvents above 212T, and can also be swelled by some solvents, especially chlorinated solvents.

PCTFE plate PCTFE rod has excellent gas barrier ability, and the water vapor permeability of the film product is the lowest among all transparent plastic films. Its electrical properties are similar to those of other perfluoropolymers, but its dielectric constant (2.3 -- 2. The knife and loss factor is slightly higher, especially at high frequencies. PCTFE can produce thick (1/8 inch) optically transparent parts.

Although PCTFE plate PCTFE rod can be processed by melting, it is difficult to process because of the high viscosity of the melt and the degradation trend, which leads to the deterioration of the performance of the processed product. PCTFE plate resin can be made into pellets for molding and extrusion. The film thickness is 0.001 -- 0.010 inches, and can also be made into rods and tubes. The PCTFE resin sold in the U.S. market includes 3M's Kel-FI brand, Daikin's Daiflon brand, and AlliedlSignal's Acfon brand.

PCTFE bar has excellent rigidity, low temperature resistance and cold flow resistance. It is an ideal sealing material under low temperature and high pressure conditions, and has special uses in the field of high and new technology.

PCTFE plate PCTFE rod Application:

1. Contact with strong corrosive media, sealing and liner materials of high-pressure systems, transparent materials of observation Windows, etc.

2. Electrical insulation materials, etc.

3. Low molecular weight PCTFE plate is used as sealing liquid, grease and balance liquid of navigation gyro for highly corrosive medium.

PCTFE product item unit value

Density of 2.10 2.18 g/cm3

Tensile strength Mpa ≥ 30

Elongation at break % ≥20

The maximum temperature of continuous use is -200-150

Dielectric strength Kv/mm ≥ 15

PCTFE board specification: 1~40*100~300

PCTFE rod specification: 5~25*200mm

30~150*50~150mm

PCTFE material color: transparent or translucent

Origin of PCTFE material: Germany, Switzerland, USA, Japan, China
