PI Board，PI Board Manufacturer

Introduction to PI board:PI board，PI board manufacturer

PI, commonly known as polyimide in Chinese, is an aromatic heterocyclic polymer compound with imide chain links in molecular structure. Its English name is polyimide (PI). It can be divided into four categories: homobenzene PI, soluble PI, polyamide imide (PAI) and polyetherimide (PEI).

Introduction to PI plastic raw materials

PI plastic raw materials are one of the varieties with good heat resistance in engineering plastics at present. Some varieties can withstand high temperature of 290 ℃ for a long time and 490 ℃ for a short time. In addition, they have good mechanical properties, fatigue resistance, flame retardancy, dimensional stability and electrical properties, small molding shrinkage, oil resistance, general acid and organic solvents, alkali resistance, and excellent friction and wear resistance.

Characteristics of PI plastic raw materials

1. Mechanical properties, good fatigue resistance and good self lubrication; The tensile strength of homobenzene polyimide film can reach 170 MPa and biphenyl polyimide film can reach 400 MPa

2. Wear resistance, low friction coefficient, not affected by humidity and temperature, high impact strength, but sensitive to notch.

3. Excellent heat resistance, can be used for a long time at - 260 (no embrittlement) ~ 330oc, and the thermal deformation temperature is as high as 343oC.

4. Good radiation resistance, no cold flow, no cracking, excellent electrical insulation and flame retardant.

5. Small shrinkage and linear expansion coefficient, good dimensional stability and low water absorption.

6. Good chemical stability, ozone resistance, bacterial corrosion resistance, good solubility, but easy to be eroded by alkali, pyridine, etc

PI plastic raw material forming method

Compression molding, impregnation, injection molding, extrusion, die casting, coating, tape casting, lamination, foaming and transfer molding.

Application field of PI plastic raw materials

PI material is widely used in aviation, automobile, electronics and industrial machinery. It can be used as engine fuel supply system parts, jet engine components, compressor and generator parts, fasteners, spline joints and electronic connectors. It can also be used as automobile engine parts, bearings, piston sleeves and timing gears. In the electronic industry, it can be used as printed circuit boards, insulating materials, heat-resistant cables Terminals, sockets, high temperature resistant self-lubricating bearings, compressor blades and piston machines, sealing rings, equipment heat insulation covers, thrust washers, bushings, etc. in the mechanical industry. High temperature resistant self-lubricating bearings, compressor piston rings, tobacco machinery accessories, printer automation accessories, clamping jaws, gaskets, sleeves and other fields.

Polyimides are classified as follows:

DuPont Vespel is a typical representative of polyimide (PI) plastic series.

Vespel-sp1 (brown): Basic specification with extremely high mechanical strength and electrical properties.

Vespel-sp21 (black): add 15% graphite filling specification to provide wear characteristics and heat resistance.

Vespel-sp211 (black): add 15% graphite and 10% PTFE to obtain low static friction coefficient. Suitable for medium temperature environment.

Vespel-sp22 (black): filled with 40% graphite, with very small expansion coefficient and very high creep resistance.

Vespel-sp3 (black): filled with 15% molybdenum disulfide, suitable for friction and sliding requirements in vacuum or inert gas.

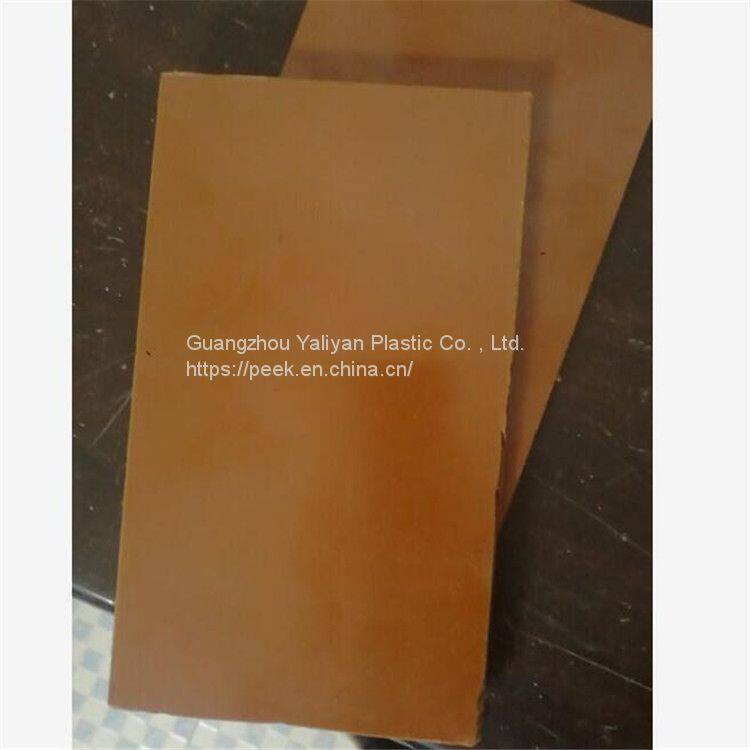

Pi plate specification: 5-80 * 300 * 300mm

PI bar specification: 6.3-82.5 * 960mm

Guangzhou yaliyan Plastic Co., Ltd. is located near the beautiful Baiyun Mountain in Guangzhou. It is a comprehensive enterprise specializing in the R & D, production and sales of various engineering plastic semi-finished products, finished products and insulating materials. The company has always maintained a good partnership with professional manufacturers of engineering plastics and insulating materials at home and abroad. In order to meet the various development needs of our customers, we also act as an agent for all kinds of engineering plastics, insulating material plates, rods and tubes from Taiwan, Germany, the United States, South Korea, Japan, Switzerland and other countries.

The company has always adhered to the enterprise philosophy of "brand first, technology-based, quality-oriented and standardized development" and the business philosophy of "customer satisfaction oriented", and is committed to consolidating the brand, continuously developing new products, honest service and quality and credit-based. Strengthen cooperation with customers and establish good relations.

The products sold by the company include all kinds of plastic plates, plastic sheets, plastic rods, industrial plastic products and a series of plastic materials. Imported plastic materials: PEEK board / rod, PVDF board / rod, PPS board / rod, CPVC board / rod, PTFE board / rod, Pei board / rod, PBI board / rod, Pai board / rod, PI board / rod, PSU board / rod, PES board / rod, PPO board / rod, PETP board / rod, PBT board / rod, UPE board / rod, ABS board / rod, POM board / rod, pom-esd board / rod, PA board / rod, PE board / rod, PP board / rod, Pu board / rod, PC board / rod, PMMA, etc, Tube.

General engineering plastics: acrylic plate, plexiglass plate, ABS plate / rod, POM plate / rod, PP plate / rod, PE plate / rod, PS plate / rod, PVC plate / rod, etc.

High temperature insulating materials: red and black bakelite board, epoxy, cloth bakelite, cold punching, phenolic laminate and rod; FR-4 fiberboard, synthetic stone, high temperature resistant asbestos board, mica board.

Welcome to call and negotiate
