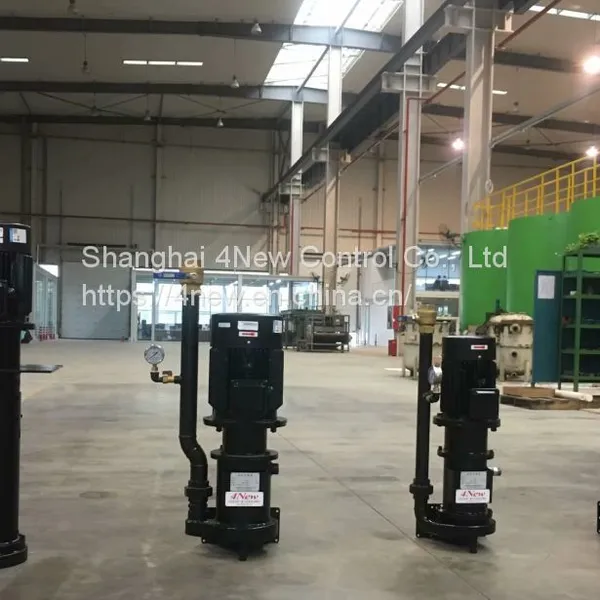

4New PD Dirty Liquid Pump

"When other pumps went on strike, Shanghai 4New PD pump had been working for more than 10 years in the dirty liquid full of chips“

Shanghai 4New's patented product PD pump, with high cost performance, high load capacity, high reliability and high durability, has become a good substitute for imported chip dirty liquid pump.

1. The chip pump, also known as dirty liquid pump and return liquid pump, can transfer the mixture of chips and cooling lubricant from the machine tool to the filter. It is an indispensable part of metal processing. The working condition of the dirty liquid pump is bad, which not only has special requirements such as "dry operation, exhaust bubble, wear resistance", but also has different requirements for the installation method, which is greatly different from the clean water pump.

2. Imported chip pump has high price and long spare parts cycle, which may cause customers to stop production once it is damaged. While anxiously waiting for the services of import manufacturers, many customers began to look for domestic alternatives.

3. Shanghai 4New was founded in 1990, has designed and produced a PD series chip dirty liquid pump with high load capacity and durability based on 30 years of experience and expertise. Over the years, 4New has successfully replaced or remanufactured many imported chip dirty liquid pumps, providing urgent solutions for customers.

4. What benefits does PD pump bring to customers?

a) Replace the chip conveyor, replace up to 30% of the workshop area, and improve the  terrace efficiency;

b) Fully automatic operation, centralized processing of cutting fluid and chips, improving human efficiency;

c) Bring the open chip dirty liquid into the pipeline for transportation to reduce air pollution;

d) The same performance as the imported pump, better service.

5. PD series chip dirty liquid pump has different installation methods such as immersion type and side suction type. See the table below for common specifications. More specifications can be customized. The length in the table is in mm, and the liquid is emulsion kinematic viscosity 1 mm ²/ s. Please consult for more flow ranges and liquid types. Dimensions may be updated, subject to order drawings.

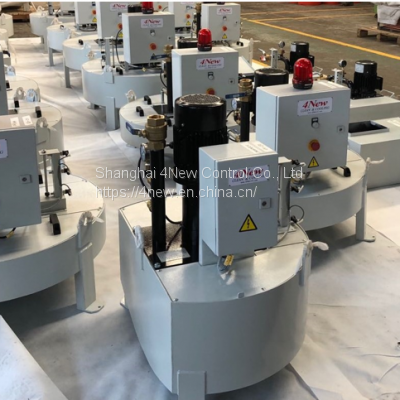

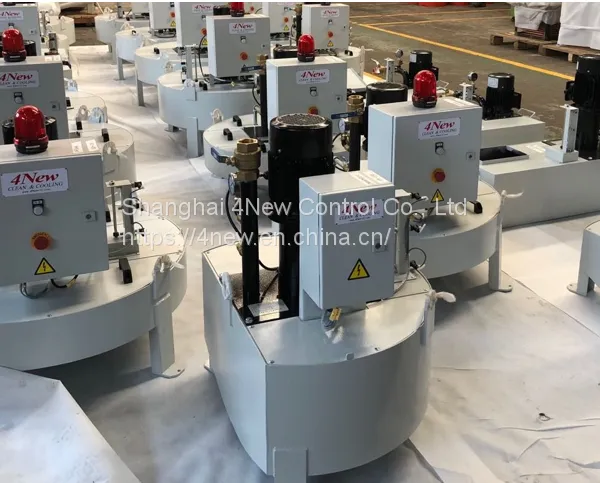

6. 4New can be matched with a variety of chip tank return tanks according to the chip removal characteristics of the machine tool, which can be used together with the PD pump.

7. How does 4New ensure the excellent quality of PD pump?

a) Carefully check the size, concentricity, coaxiality and dynamic balance of each impeller, volute and other spare parts;

b) The use of wax loss casting can ensure that the shape and size of each part of the impeller are accurate, and the cast steel material is superior to the cast iron, ensuring the design strength;

c)  Full time technicians with many years of experience are responsible for assembly, cleaning of semi-finished products and process quality inspection before assembly;

d）Each PD pump shall undergo liquid commissioning, record the flow, pressure, current and noise, confirm that there is no abnormal vibration, and then paint and ship after meeting the requirements;

8. How does the customer evaluate the PD pump?

"We are surprised that the 4New PD pump is so durable, which is better than Grundfos's own pump."

- Production Manager of Grundfos (Suzhou)

9. How to select PD pump?

PD pump is designed based on the principle of centrifugal pump. It uses a semi open impeller to generate vortices and negative pressure through rotation. The cuttings suspended in the liquid are sucked into the volute, and the solid-liquid mixture rotates and accelerates in the volute to output from the volute at a certain positive pressure. In this process, the pump design must match the corresponding processing conditions, and the correct type selection can be used reliably. Factors to be considered include:

a)  Is cutting fluid water-based or oil-based? What is the viscosity? What is the bubble content in the liquid?

b)  Is the solid impurity chip or abrasive? Shape and size? Density of impurities in liquid?

c)  Is the pump installed by immersion or side suction? What is the liquid level depth of the return tank?

d)  What lift does pumping output require? How many elbows, valves and other resistance effects does the output pipeline have?

e)  What is the height from the liquid outlet of the machine tool to the ground? What is the thickness of foam on the cutting fluid surface?

Don't worry, please contact us immediately, and 4New PD pump experts will serve you.

TEL：+86-21-50692947, 50692948

EMAIL：zhangli@4newcc.com
