Engine Cooling and Anti-Rust Agent Ash Content Tester
Product Model: JF0067
Introduction
The measuring principle of this instrument is to vaporize or burn the sample under certain conditions, then burn it in a strong heat source, and calcine the solid residue. Therefore, the ash content of the test product is determined. The instrument is suitable for detecting unused commercial engine coolant and liquid rust inhibitor, and can also be used to identify the type of coolant and rust inhibitor, but it is not suitable for determining the content of total inhibitors.
Technical Parameter
1. Applicable standard: SH/T0067
2. Heating method: high-quality electric furnace wire heating

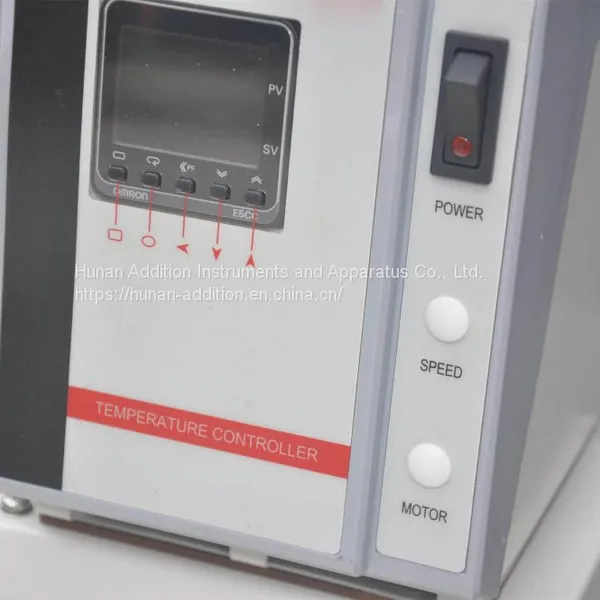

3. Temperature control method: digital display PID temperature controller
4. Temperature control range: normal temperature～900℃
5. Temperature control accuracy: ±10℃
6. Working power supply: AC220V/50Hz
7. Machine power: 2500W
8. Instrument size: 400*460*620mm
9. Net weight: 42KG
Performance characteristics
1. Hot ceramic furnace, good heat preservation effect, avoid burns to staff;
2. Microcomputer processing and PID control, digital display, accuracy ±0.1℃ PT100 sensor;
3. Porcelain silicon evaporating dish, 50～100ml, 120～150ml, meet the standard requirements;
4. Loose-leaf furnace door, easy to switch;
5. The electrical control box is separated from the heating box to reduce the damage to the electrical box caused by high temperature;
6. Split structure, easy to operate;
7. High-quality electric furnace wire heating to prolong the service life;
8. The casing is formed by high-quality cold-rolled steel plate molds;
