WILDEN Pneumatic pump In 1955, WILDEN developed the world's first pneumatic two-compartment diaphragm pump. WILDEN has distributors in 64 countries and products worldwide.
Advantages of the WILDEN pump
Unbalanced valve patented design, will not stop unbalanced piston, no dead point
Plastic self lubricating air system, no need for oil lubrication
Minimum energy consumption, very low compressed air leakage
Special fast exhaust structure, fully ensure that the air valve does not freeze, improve the air utilization rate
The number of parts and wearing parts in the single pump is the least in the industry, unique clamp design, fast and convenient disassembly

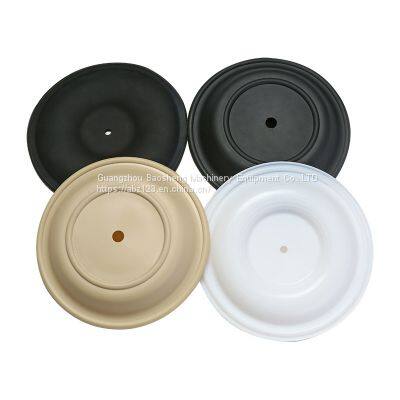

The patented stiffener design gives the WILDEN diaphragm the longest life and highest temperature resistance in the industry
Passed ISO9001 certification, and the European Community CE certification
The universal advantages of pneumatic diaphragm pump
No electric spark, can run empty, can be self-priming start work, without complex control, simple operation, self-priming height up to 6M
Can be selected by the shell of the pump body and diaphragm material to transport different characteristics of strong acid, alkali, strong organic solvent liquid medium
No dynamic seal, no pollution of the material, low shear force, not easy to damage the material structure
No rotating parts (or bearings), no mechanical shaft seal, no connectors, low maintenance cost
The delivery speed can be changed by changing the gas volume
The conveying height can be changed by changing the pressure
Can transport high viscosity, high viscosity liquid medium
Can switch the outlet at any time, not afraid of blockage
Automatic pressure balancing (without pressure relief valve)
Wilton pneumatic diaphragm pump main application industry
Chemical industry: acids, bases, solvents, suspended solids, dispersion systems
Petrochemical industry: crude oil, heavy oil, grease, mud, sludge
Daily chemicals: detergents, shampoos, lotions, emulsions, hand creams, surface activators
Ceramics industry: mud, porcelain slurry, lime slurry, clay slurry
Mining industry: coal slurry, magma, mud, mortar, lubricating oil
Water treatment: lime slurry, soft sediment, sewage, chemicals, waste water
Food Industry: Liquid semisolid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood
Beverage industry: wheeze, syrup, concentrate, air-liquid mixture, wine, juice, corn syrup
Medicine: solvent, acid, alkali, plant extract, ointment, plasma and other kinds of pharmaceutical liquid
Paper industry: binder, resin, paint, ink, pigment, hydrogen peroxide
Electronics: solvent, electroplating solution, cleaning solution, sulfuric acid, nitric acid, waste acid, corrosive acid, polishing liquid
Textile industry: dye chemicals, resins, adhesives
Automotive industry: Polishing emulsions, oils, coolants, Automotive primers, oil latex, varnishes, varnish additives, degreasing liquids, Paints
Furniture industry: binder, varnish, dispersion system, solvent, color agent, white wood glue, epoxy resin, starch binder ink
Coating industry: colorant, solvent, resin, paint refining
Casting and dyeing industry: metal slurry, hydroxide and carbonized slurry, dust washing slurry power generation, semiconductor

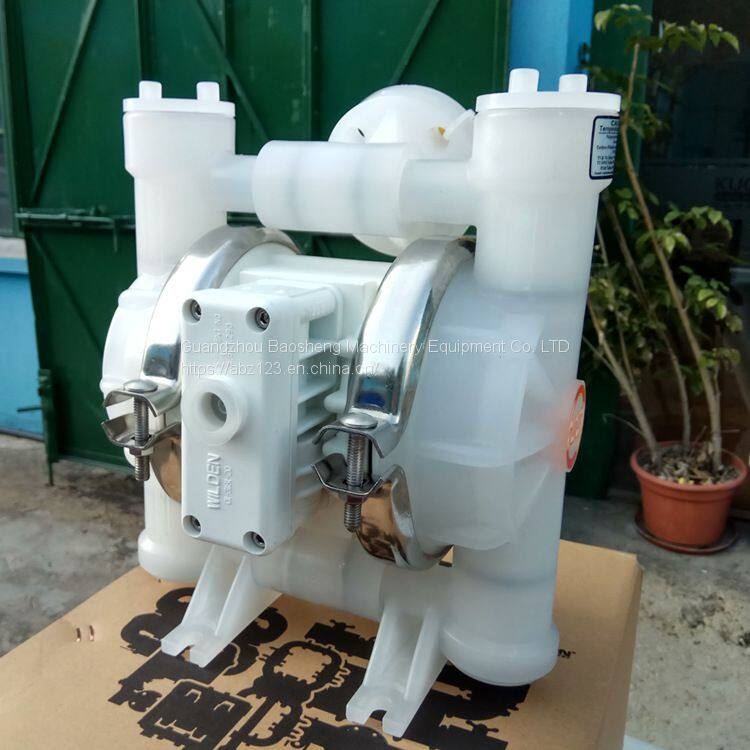

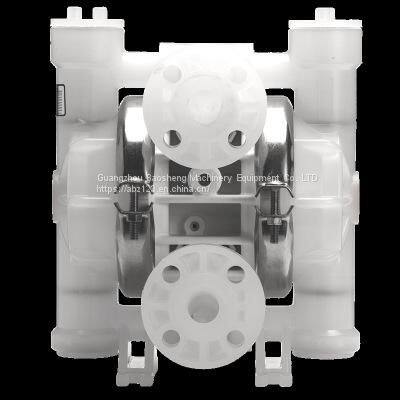

P2r-1 "(25.4mm) plastic corrosion resistant pump
Common models:
P2/KKPPP/TNU/TF/KTV/0040
P2/KKPPP/TNU/TF/KTV/0040

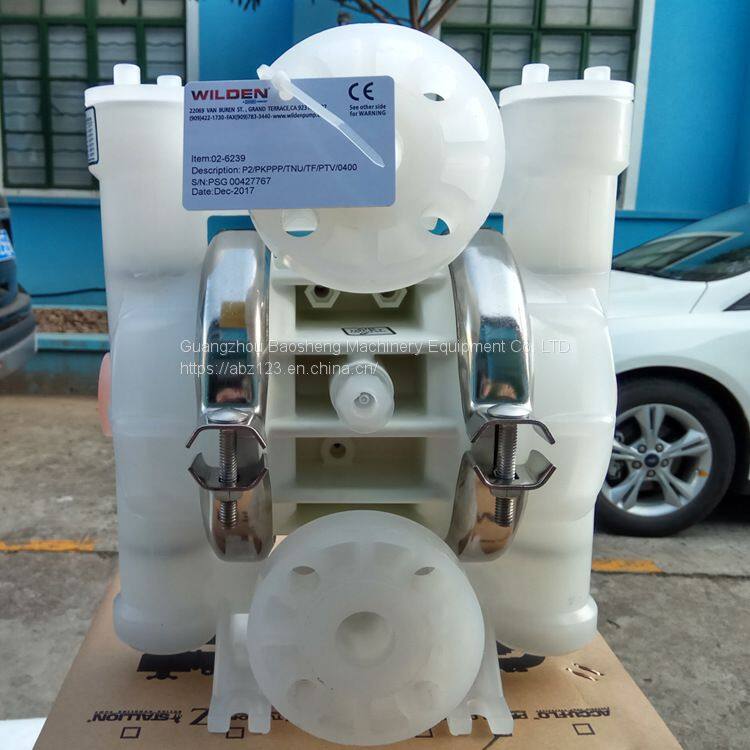

P2/PKPPP/TNU/TF/PTV/0400
P2/PKPPP/WFS/WF/PWF/0400
Size: 1"
Maximum flow: 37GPM (140.0LPM)
Maximum operating pressure: 125PSI (8.6BAR)
Structure material: polypropylene, polyvinylidene difluoride, Teflon PTFE
Dry suction: 18' (5.5m)
Maximum particle size available: 1/8" (3.18mm)
Elastomer: butadiene rubber, polyurethane, SaniFlexTM, fluorinated rubber, WIL-FLEXTM, Teflon PTFE
