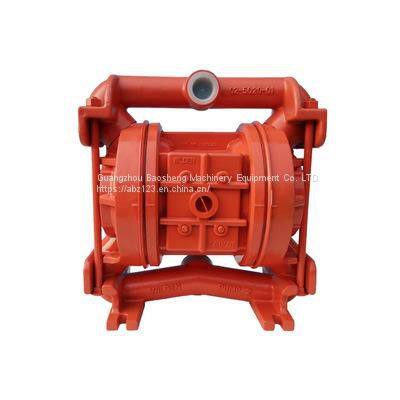

WILDEN pneumatic diaphragm pump WILDEN diaphragm pump agent

WILDEN Pump & Engineering Company (WILDEN Pump & Engineering Company) developed the WILDEN pneumatic two-compartment diaphragm Pump in 1955. Its adaptability, safety and reliability are the representative products in the field of Pump technology. The unique performance of Wilden diaphragm pump makes Wilden pump suitable for other types of diaphragm pump can not adapt to the place. For more than 50 years, Wilton has been dedicated to meeting customer requirements, market knowledge, research and development, and solving pumping's toughest problems. Wilton designs, models, tests, and manufactures new products that meet market needs in an efficient and cost-effective way on the infrastructure.

Advantages of the WILDEN pump

Unbalanced valve patented design, will not stop unbalanced piston, no dead point

Plastic self lubricating air system, no need for oil lubrication

Minimum energy consumption, very low compressed air leakage

Special fast exhaust structure, fully ensure that the air valve does not freeze, improve the air utilization rate

The number of parts and wearing parts in the single pump is the least in the industry, unique clamp design, fast and convenient disassembly

The patented stiffener design gives the WILDEN diaphragm the longest life and highest temperature resistance in the industry

Passed ISO9001 certification, and the European Community CE certification

The universal advantages of pneumatic diaphragm pump

No electric spark, can run empty, can be self-priming start work, without complex control, simple operation, self-priming height up to 6M

Can be selected by the shell of the pump body and diaphragm material to transport different characteristics of strong acid, alkali, strong organic solvent liquid medium

No dynamic seal, no pollution of the material, low shear force, not easy to damage the material structure

Submersible, mobile, easy handling, can be used as a mobile pump

No rotating parts (or bearings), no mechanical shaft seal, no connectors, low maintenance cost

The delivery speed can be changed by changing the gas volume

The conveying height can be changed by changing the pressure

Can transport high viscosity, high viscosity liquid medium

Can switch the outlet at any time, not afraid of blockage

Automatic pressure balancing (without pressure relief valve)

Wilton pneumatic diaphragm pump main application industry

Chemical industry: acids, bases, solvents, suspended solids, dispersion systems

Petrochemical industry: crude oil, heavy oil, grease, mud, sludge

Daily chemicals: detergents, shampoos, lotions, emulsions, hand creams, surface activators

Ceramics industry: mud, porcelain slurry, lime slurry, clay slurry

Mining industry: coal slurry, magma, mud, mortar, lubricating oil

Water treatment: lime slurry, soft sediment, sewage, chemicals, waste water

Food Industry: Liquid semisolid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood

Beverage industry: wheeze, syrup, concentrate, air-liquid mixture, wine, juice, corn syrup

Medicine: solvent, acid, alkali, plant extract, ointment, plasma and other kinds of pharmaceutical liquid

Paper industry: binder, resin, paint, ink, pigment, hydrogen peroxide

Electronics: solvent, electroplating solution, cleaning solution, sulfuric acid, nitric acid, waste acid, corrosive acid, polishing liquid

Textile industry: dye chemicals, resins, adhesives

Construction: Cement paste, ceramic tile binder, rock slurry, ceiling finish

Automotive industry: Polishing emulsions, oils, coolants, Automotive primers, oil latex, varnishes, varnish additives, degreasing liquids, Paints

Furniture industry: binder, varnish, dispersion system, solvent, color agent, white wood glue, epoxy resin, starch binder ink

Coating industry: colorant, solvent, resin, paint refining

Casting and dyeing industry: metal slurry, hydroxide and carbonized slurry, dust washing slurry power generation, semiconductor

TZ2 series diameter: 1/2"

Common models: TZ2 / AAAAA/TNU/TF/ATF, TZ2 / AAAAA/TNU/TF/ATF / 0014, TZ2 / AAAAA/BNS/BN/ABN, TZ2 / AAAAA/BNS/BN/ABN / 0014, TZ2 / AAAAA/WFS/WF/AWF, TZ2 / A AAAA/WFS/WF/AWF / 0014, TZ2 / PPAAA/WFS/WF/KWF, TZ2 / PPAAA WFS/WF/KWF / 0014, TZ2 / AAAAA/NES/NE/ABN, TZ2 / AAAAA/NES/NE/ABN / 0014, TZ2 / P KAAA/WFS/WF/PWF, TZ2 / PKAAA/WFS/WF/PWF / 001

Maximum flow: 81GPM(306.6Lpm)

Maximum operating pressure: 125PSI(8.6BAR)

Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy

Dry vacuum: 5 "(1.5 m)

Maximum particle size available: 1/16"(1.6mm)

Diaphragm material: butyl rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber

TZ4 series Caliber: 1 1/2"

Common models: TZ4 / AAMAA/TNU/TF/ATF, TZ4 / AAMAA/TNU/TF/ATF / 0014, TZ4 / AAMAA/BNS/BN/ABN, TZ4 / AAMAA/BNS/BN/ABN / 0014, TZ4 / AAMAA/WFS/WF/AWF, TZ4 / A AMAA WFS/WF/AWF / 0014, TZ4 / PPMAA/WFS/WF/KWF, TZ4 PPMAA/WFS/WF/KWF / 0014, TZ4 / AAMAA/NES/NE/ABN, TZ4 / AAMAA/NES/NE/ABN / 0014, TZ4 / P KMAA WFS/WF/PWF, TZ4 / PKMAA WFS/WF/PWF / 0014, TZ4 / PKMAA/WFS/WF/PWF / 0400, TZ4 / PKMAA/WFS/WF/PWF / 0404, TZ4 / SSMAA TNU/TF/STF, TZ4 / S SMAA/TNU/TF/STF / 0014, TZ4 SSMAA/TNU/TF/STF / 0400, TZ4 / SSMAA/TNU/TF/STF / 0070

Maximum flow: 81GPM(306.6Lpm)

Maximum operating pressure: 125PSI(8.6BAR)

Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy

Dry vacuum: 18 "' (5.5 m)

Maximum particle size available: 3/16"(4.76mm)

Diaphragm material: butyl rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber

TZ8 series caliber: 2"

Common models: TZ8 / AAAAA/TNU/TF/ATF, TZ8 / AAAAA/TNU/TF/ATF / 0014, TZ8 / AAAAA/BNS/BN/ABN, TZ8 / AAAAA/BNS/BN/ABN / 0014, TZ8 / AAAAA/WFS/WF/AWF, TZ8 / A AAAA/WFS/WF/AWF / 0014, TZ8 / PPAAA/WFS/WF/KWF, TZ8 / PPAAA WFS/WF/KWF / 0014, TZ8 / AAAAA/NES/NE/ABN, TZ8 / AAAAA/NES/NE/ABN / 0014, TZ8 / P KAAA/WFS/WF/PWF, TZ8 / PKAAA/WFS/WF/PWF / 0014, TZ8 / PKAAA/WFS/WF/PWF / 0400, TZ8 / PKAAA/WFS/WF/PWF / 0404, TZ8 / SSAAA/TNU/TF/STF, TZ8 / S SAAA/TNU/TF/STF / 0014, TZ8 SSAAA/TNU/TF/STF / 0400, TZ8 / SSAAA/TNU/TF/STF / 0070

Maximum flow: 163GPM(617.0lpm)

Maximum operating pressure: 125PSI(8.6BAR)

Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy

Dry vacuum: 21 '(6.35 m)

Maximum particle size available: 1/4"(6.35mm)

Diaphragm material: butadiene rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber

TZ15 series caliber: 3"

Common models: TZ15 / AAAAA/TNU/TF/ATF, TZ15 / AAAAA TNU/TF/ATF / 0014, TZ15 / AAAAA/BNS/BN/ABN, TZ15 / AAAAA/BNS/BN/ABN / 0014, TZ15 / AAAAA/WFS/WF/AWF, TZ15 AAAAA/WFS/WF/AWF / 0014, TZ15 / PPAAA/WFS/WF/KWF, TZ15 / PPAAA/WFS/WF/KWF / 0014, TZ15 / AAAAA/NES/NE/ABN, TZ15 / AAAAA/NES/NE/ABN / 0014, TZ15 / PKAAA/WFS/WF/PWF, TZ15 / PKAAA WFS/WF/PWF / 0014, TZ15 / PKAAA/WFS/WF/PWF / 0400, TZ15 / PKAAA/WFS/WF/PWF / 0404, TZ15 / SSAAA/T NU/TF/STF, TZ15 / SSAAA/TNU/TF/STF / 0014, TZ15 / SSAAA/TNU/TF/STF / 0400, TZ15 / SSAAA/TNU/TF/STF / 0070

Maximum flow: 232GPM(878.1Lpm)

Maximum operating pressure: 125PSI(8.6BAR)

Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy

Dry vacuum: 21 '(6.35 m)

Maximum particle size available: 3/8"(9.5mm)

Diaphragm material: butadiene rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
