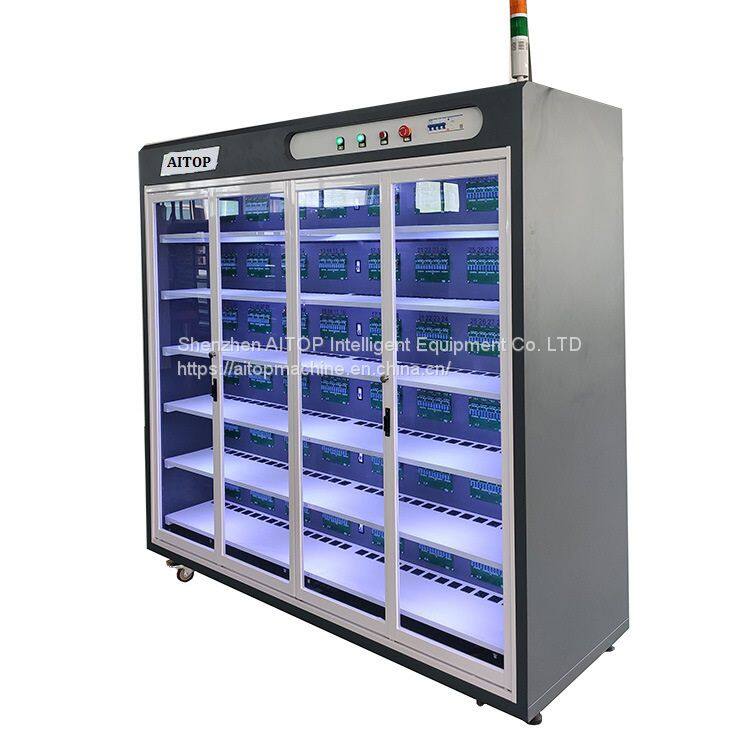

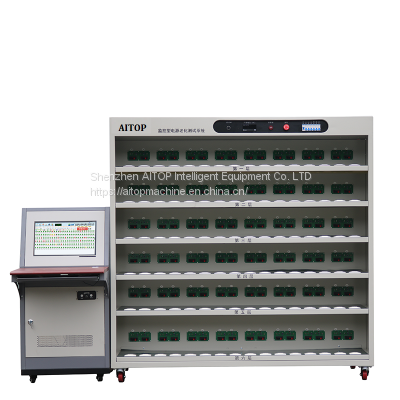

AITOP-192 Energy-saving plug-in aging equipment Intelligent power strip socket aging cabinet aging test tester

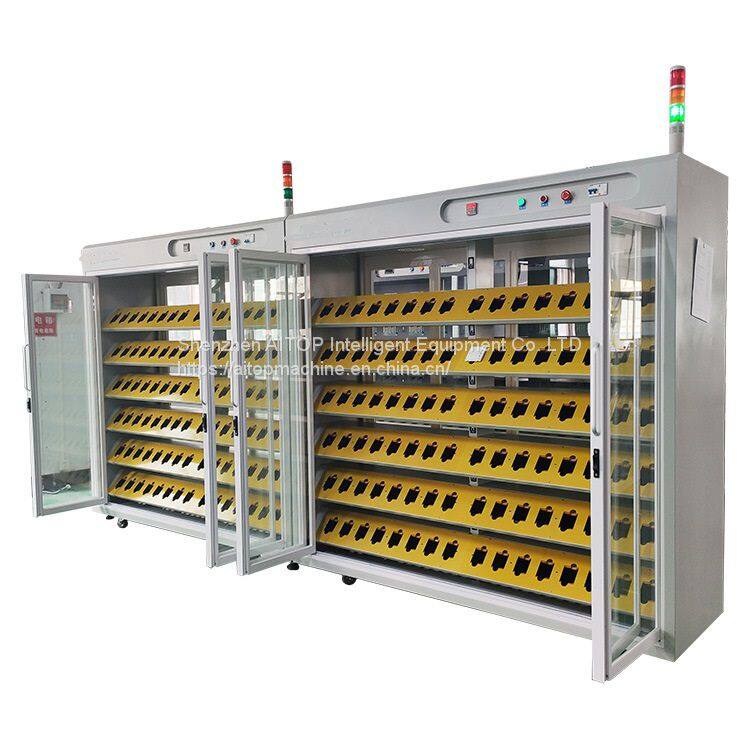

Constant temperature fast charging intelligent aging cabinet
outstanding features:
The software (with English )sets the load parameters, and monitors the output voltage, current, power and other parameters in real time
CC, CV, LED load selectable modes
Parallel connection of load channels to meet product power expansion
The product voltage and current can be arbitrarily selected and designed
Editable switching sequence, load multiple transformation function
The multi-function adapter board is matched with different products to facilitate the docking of different product interfaces.
Aging library body size and appearance with a variety of structural options to solve the aging of different products and various on-site installations
Internal resistance smoke detection alarm, over temperature alarm, leakage protection and other functions
Various voltage automatic switching functions (optional)
Product area temperature monitoring function (optional)
PWM dimming function and extended logic signal output (optional)
Energy-saving and non-energy-saving various load modules are optional
Energy-saving conversion efficiency of more than 85%
Support FCP, SCP, PD3.0+USBpps, PD2.0, QC2.0, QC3.0, QC4+, MTK PE2.0, D+D-, etc.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Outstanding functions

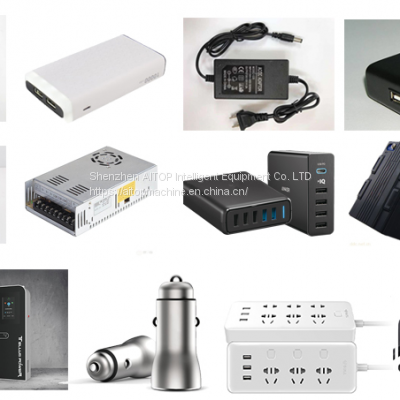

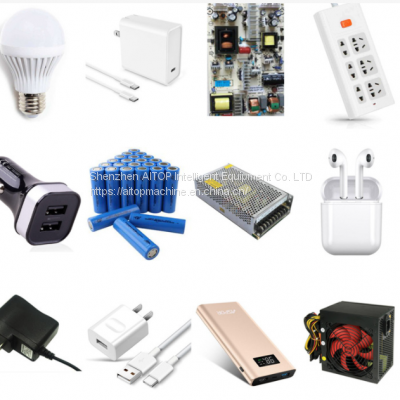

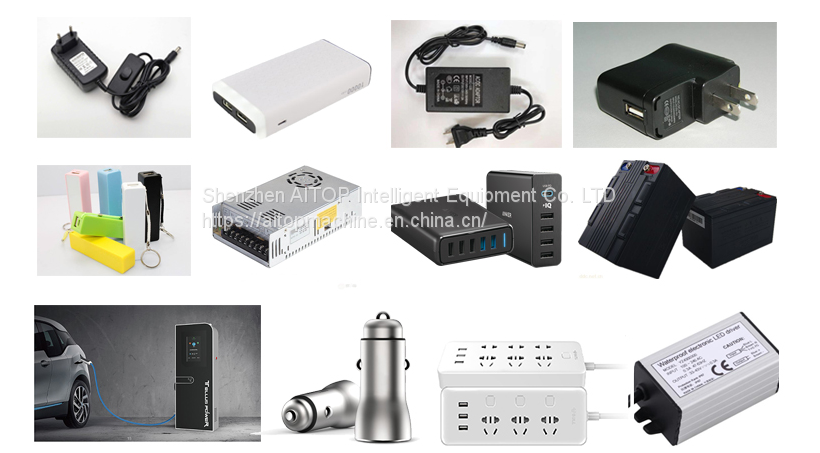

1. Suitable for chargers, power adapters, mobile power supplies, wireless charging and other power sources
2. The software sets the load parameters, and monitors the output voltage, current, power and other parameters in real time
3. CC CV load optional mode In load mode, channels can be connected in series or in parallel to meet the expansion of various power products
4. The voltage and current of the product can be arbitrarily selected and designed. * Editable switching sequence load multiple transformation functions
5. The multi-function adapter board can be connected with different products to facilitate the connection of different product interfaces.
6. Various structural options for the appearance and size of the equipment to solve the aging of different products and various on-site installations
7. Internal resistance smoke detection alarm, over temperature alarm, leakage protection and other functions
8. Support OC2.0.0C3.0.0C4+PD2.0,
PD3.0+USBPpSMTKFCPSCP, etc.
9. Aging test of various fast charging protocol chargers
10. Various voltage automatic switching functions (optional) Product area temperature monitoring function (optional)

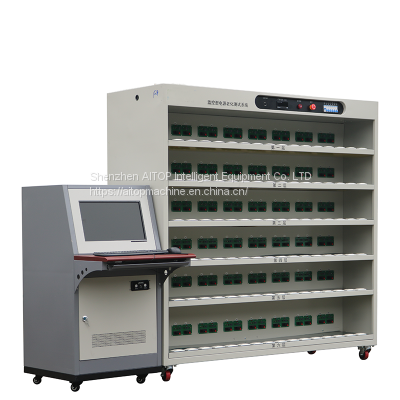

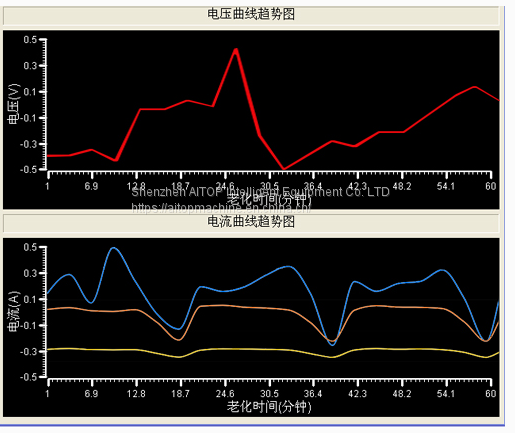

11. Use with power aging monitoring software, with aging data record storage, export and analysis functions. Performance parameters Model Model Q-192 (1%10.1%F5) Ensure accurate measurement accuracy of each channel Single channel power 125W/CH /optional 100W/CH Number of load channels 4CH Number of aging products 192 Load voltage range 2-60V Load current range 0.2-7A/CH Load Accuracy (2%+0.1%FS) Product area layers: 6 layers on one side Product area floor height 210 Product area width CC, CV mode 340 in series, parallel channels possible Load module selection Ground supply, isolation, energy saving Load Mode CC+CV Mode
75W8 channel ground supply module
75W 8 channel isolation module Product area temperature control Product area temperature control type: normal temperature -60 ℃ Trolley structure material: sheet metal structure,
finely processed with enamel paint Main control method: computer monitoring type power supply aging monitoring software Tested power input method: universal socket/speaker clip/USB/TYPE-C/
customized Tested power supply interface mode: Various specifications transfer to Zhixian board first selection / customer customization Customizable fast charge function: MTK.FCP, SCP QC2.0, QC3.0, QC4.0, PD2.0PD3.0PD3.1
Dimensions: 2000Lx1930Hx750W(mm)/or customized computer-monitored power aging monitoring english software
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.You can reach me by Phone/Whatsapp/Wechat:+86 18098989643
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
