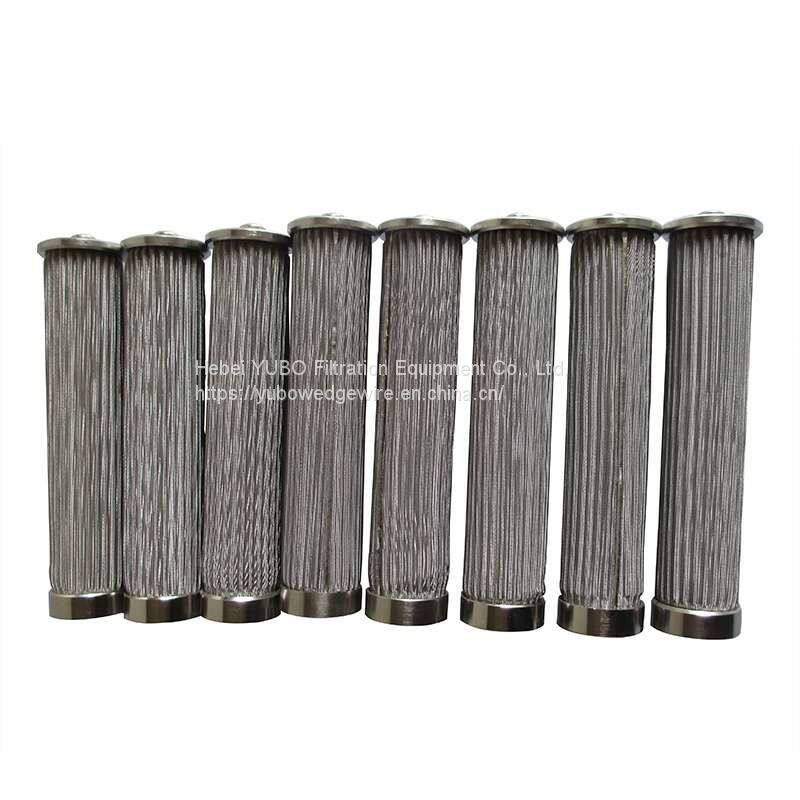

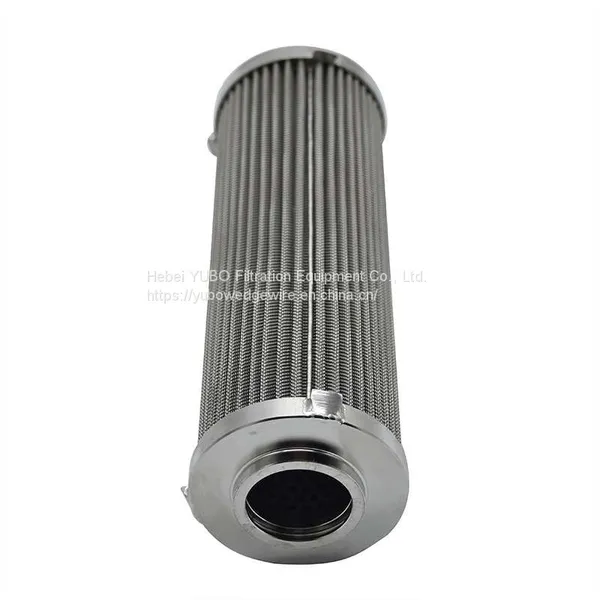

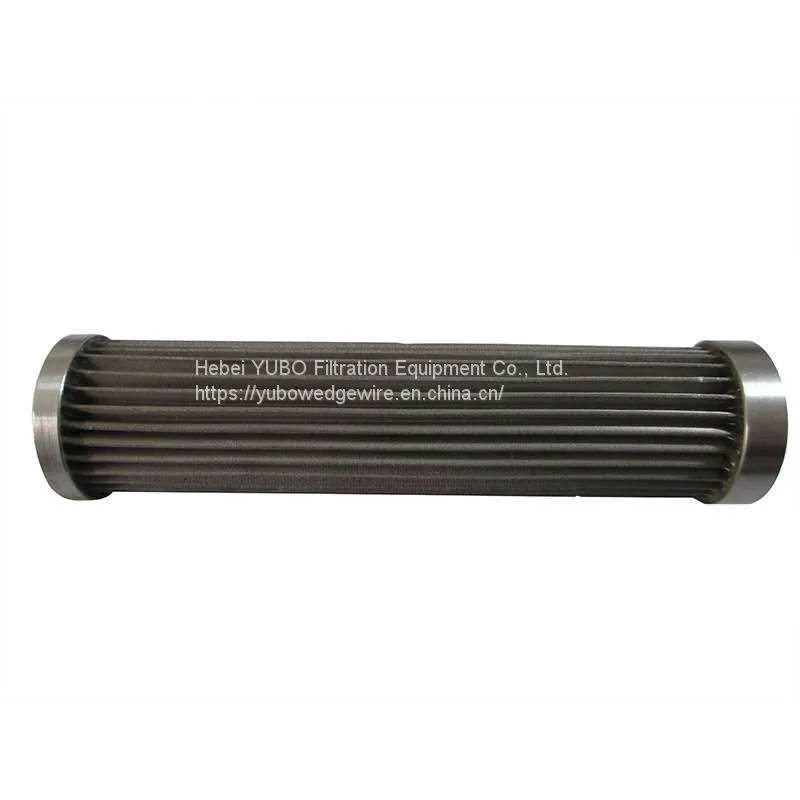

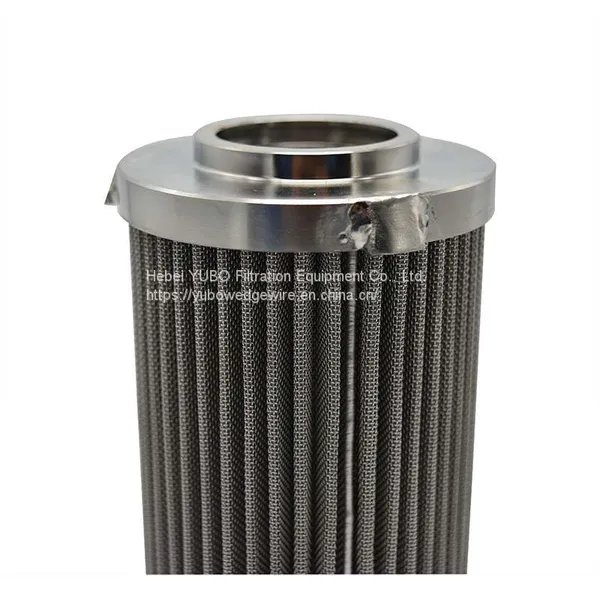

Stainless Steel Pleated Filter Cartridge is a great alternative for exhaust tubing of automotive applications. Due to its excellent corrosive resistance and overall properties, stainless steel perforated tubing is completely recycled.
Stainless Steel Filter Cartridges are the perfect choice for high temperature and high viscosity applications. Manufactured with 304 or 316L sintered stainless steel mesh / Sintered Powder / pleated mesh cartridge offers excellent reliability for critical applications.
Applications for Stainless Steel Pleated Filter Cartridge
1) petroleum,chemical,mineral,food,pharmacy,environment production,water treatment and so on.
2) Filter high-temperature gas, corrosion liquid, and FCCDO in the petroleum industry
3) Purify high-temperature ash in the metallurgy industry
4) Filter and separate catalyst
5) Filter and purify melting polymer in chemical fiber, film industry
6) Separate catalysts in the pharmacy industry
7) Filter oil, beverage, and other edible liquid
8) Purify wastewater from production.
9) Filter oil of high backwashing pressure
10) Filter other high-temperature gas or liquid
Specifications
| Absolute filter-rating (μm) | Bubble point pressure (Pa) | Average Air Permeability (l/dm²/min) | Thickness (mm) | Weight (g/m²) | Porosity (%) | Dirt Holding Capacity (mg/cm²) |
| 3 | 12300 | 9 | 0.35 | 975 | 65 | 6.40 |
| 5 | 7600 | 34 | 0.34 | 600 | 78 | 5.47 |
| 7 | 5045 | 57 | 0.27 | 600 | 72 | 6.47 |
| 10 | 3700 | 100 | 0.32 | 600 | 77 | 7.56 |
| 15 | 2470 | 175 | 0.37 | 600 | 80 | 7.92 |
| 20 | 1850 | 255 | 0.49 | 750 | 81 | 12.44 |
| 25 | 1480 | 320 | 0.61 | 1050 | 79 | 19.38 |
| 30 | 1235 | 455 | 0.63 | 1050 | 79 | 23.07 |
| 40 | 925 | 580 | 0.66 | 1200 | 77 | 25.96 |
| 60 | 630 | 1000 | 0.70 | 750 | 87 | 33.97 |
In addition, we also specialize in providing customized services for wedge wire filters. Our products include wedge wire screen panels, pipes, cylinders, sieve bend screens, lauter tun screens, etc.
