ISO11171 Automatic Oil Cleanliness Tester

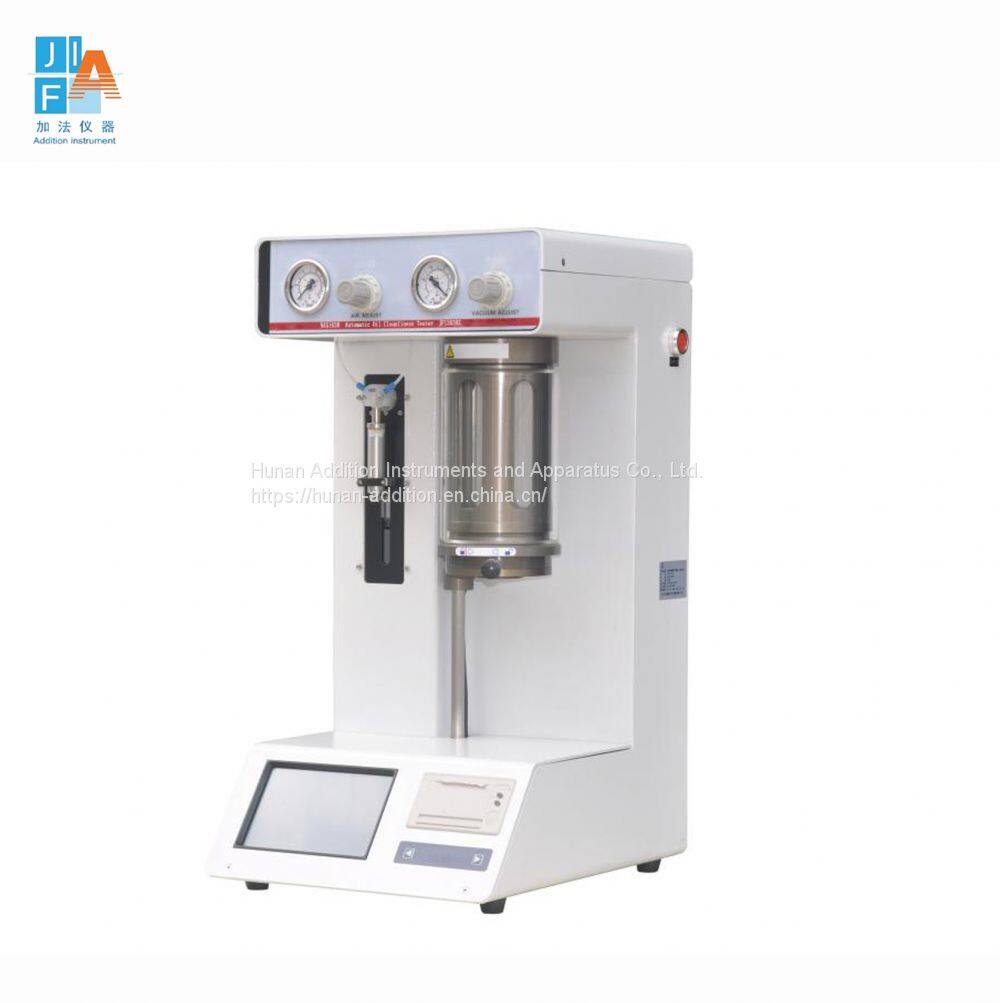

Automatic Oil Cleanliness Tester   ISO11171

Product Model: JF14039Z

Product introduction

This instrument is developed according to ISO11171, GB/T14039 and other international standards and is specially used for the detection of pollution particle levels in oil. The instrument is developed using the counting principle of the photoresist (shading) method, which fully complies with the corresponding national military standards and international standards. It can provide fast, accurate, reliable and repeatable test results and complete pollution monitoring and analysis reports. It can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.

Main Applications

Laboratory oil analysis, acceptance of hydraulic equipment and routine maintenance, cleaning validation of systems, cleaning validation of components, wear testing of hydraulic components.

Performance Parameters

1. Applicable standards: ISO11171, GB/T14039, DL/T432

2. Light source: semiconductor laser

3. Particle size range: 0.8um～500um

4. Detection channel: 8 channels can set particle size arbitrarily

5. Resolution: better than 10%

6. Repeatability: RSD<2%

7. Viscosity range: maximum 350cSt

8. Sampling volume: 0.2～1000ml

9. Sampling accuracy: better than ±1%

10. Sampling speed: 5mL/min～80mL/min

11. Maximum vacuum of air pressure chamber: 0.08MPa

12. Maximum positive pressure of air pressure chamber: 0.8MPa

13. Limit coincidence error: 10000 grains/mL

14. Power supply: AC220V±10%, 50Hz

15. Instrument size: 340*340*640mm

16. Net weight: 28KG

Features

1. The counting principle of the photoresist (shading) method formulated by the International Hydraulic Standards Committee;

2. High-precision laser sensor, wide test range, stable performance, low noise and high resolution;

3. High-pressure syringe pump sampling method, the sampling volume can be set by itself, the sampling speed is stable, and the sampling accuracy is high;

4. The positive and negative pressure combined sample injection system can realize sample degassing, which is suitable for testing samples of different viscosities;

5. Built-in air purification system to ensure that the test is not polluted;

6. Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration;

7. 8 common standards such as GJB-420B, NAS1638, ISO4406 and TOCT17216, support customization;

8. Standard testing, and the required standards can be set according to customer needs;

9. Various sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries;

10. Color touch screen operation, built-in printer, simple and elegant structure, simple and convenient operation;

11. Full-function automatic operation, English input, data storage and printing functions;

12. The built-in data analysis system can determine the sample grade according to the standard;

13. With RS232 interface, it can be connected to a computer or laboratory platform for data processing;
