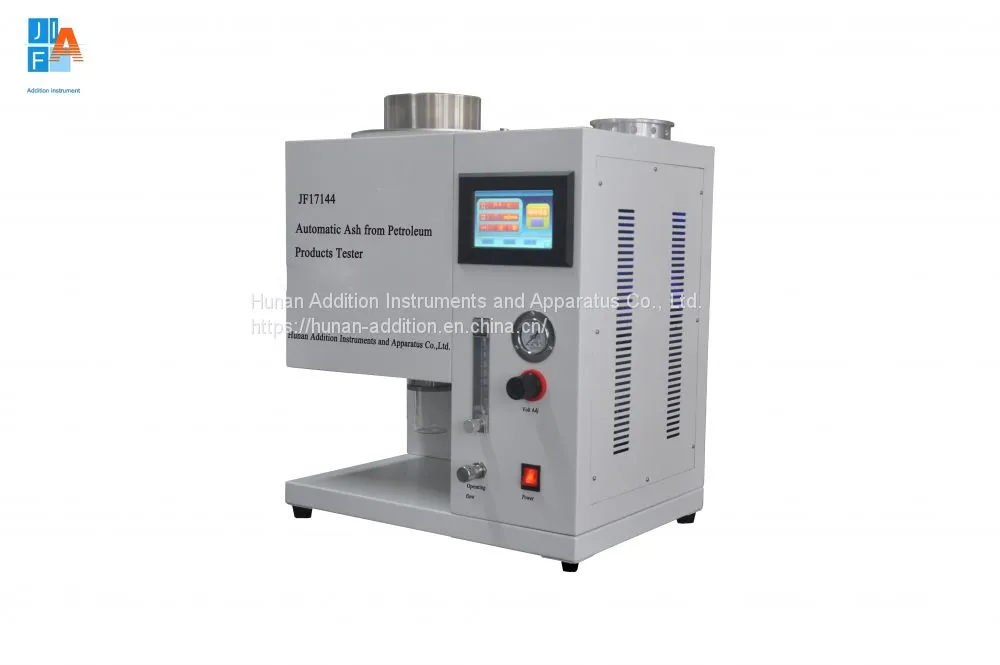

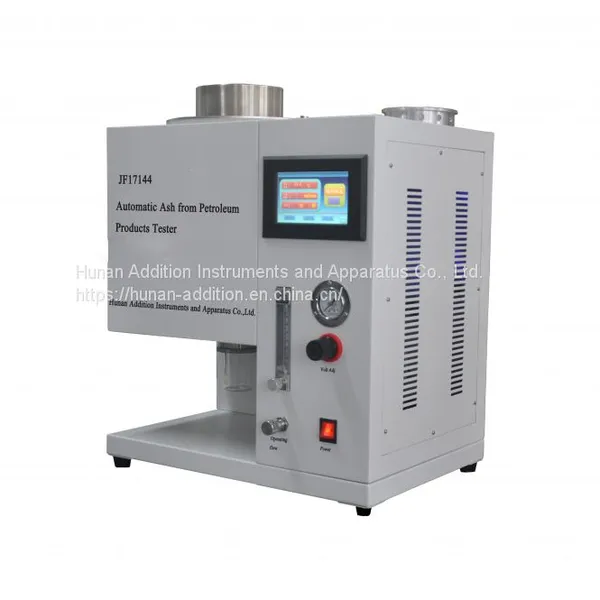

ASTM D4530 Automatic Ash from Petroleum Products Tester (Micro Method)

Automatic Ash from Petroleum Products Tester (Micro Method)

Product model: JF17144

Product Introduction

This instrument is suitable for testing petroleum products whose carbon residue ranges from 0.10% (m/m) to 30.0% (m/m). This instrument is also suitable for detecting petroleum products whose residual carbon value is less than 0.10% (m/m) and consists of fractions.

The instrument is heated and automatically displayed according to  ASTM D4530 ISO10370 , the working process is automatically timed, the ventilation flow is automatically converted and controlled, and the constant temperature is automatically maintained for the required time. When the test is over, it will automatically alarm, which realizes the automation of the entire working process.

Technical Parameter

1. Applicable standards: ASTM D4530, ISO10370, DIN51551, IP398, GB/T17144

2. Temperature control accuracy: 520±2℃

3. Working unit: 12 samples

4. Heating method: electric heating rod heating is convenient for maintenance

5. Connection method: high-quality stainless steel quick connector connection, no leakage

6. Pressure adjustment range: 0kPa (0kg/cm2) ~ 392kPa (4kg/cm2)

7. Flow adjustment range: 100ml～1000ml/min;

8. Specification of waste liquid collection bottle: 200ml, glass bottle with screw interface

9. Working power supply: AC220,240V 50,60HZ

10. Power of the whole machine: 2KW

11. Instrument size: 550*500*590mm

12. Net weight: 35KG

Features

1. 5-inch TFT color LCD display, screen resolution: 800*480;

2. English operation interface, touch screen operation, convenient and quick;

3. Automatic control of temperature rise and flow, and real-time display of experimental progress;

4. Using embedded operating system, the work is stable and reliable;

5. High temperature safety protection;

6. The quality of the input sample tube and sample can be edited and input;

7. Automatically calculate the residual carbon value;

8. Store 100 groups of historical data for easy query.

9. Historical data can be queried by date.

10. The diameter of the air inlet of the coke box: 1mm (12 in total)
