Air Cooled Water Chiller 10 Ton Price
Machine description:
Low temperature chiller /Air-cooled low temperature chiller/water-cooled low temperature chiller/Screw low temperature chiller/
Low temperature industrial chiller features:KFJ-DW series low temperature chiller is specially designed,which is widely used in carbonated drinks,building,pharmaceutical,chemical,food,electronics and so on.This product introduces the foreign advanced technology,well-designed the new generation of the low temperature chiller.The temperature can be any regulated in the range of -30℃ to 25℃.Unit adopts Taiwan HANBELL,Germany BITZER, French Maneurop,USA Copeland compressor,energy efficiency is about the 10% to 20% higher than the ordinary compressor.Electronic circuit control is used the international well-known,PLC touch-screen operator panel,operation simple and quick.It can be seed the health of everything at one glance.
KDA every machine has to pass the 10% performance test before they go out℃ ensure the reliability.It is realized the promises for customer about the cooling capacity,input power,performance parameter,sample and contract requirements,the machines add the refrigerant and lubricating oil before they go out,easy installation,it would save money on the installation and debugging.We can custom the all kinds of the nonstandard equipment based on customer demand.

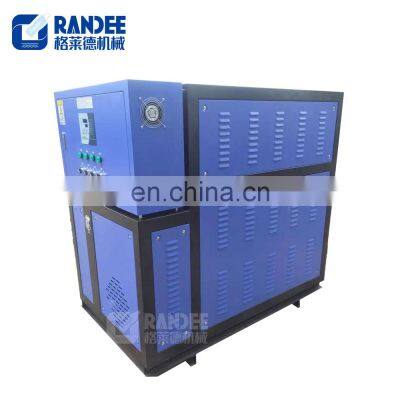

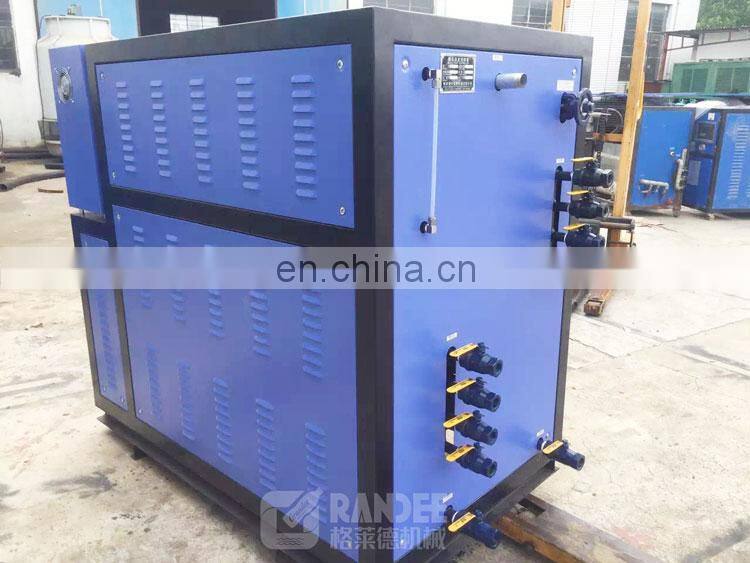

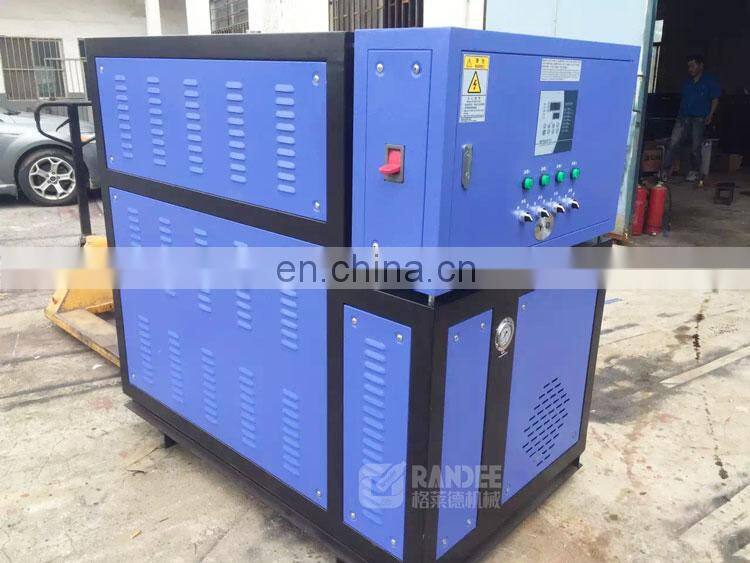

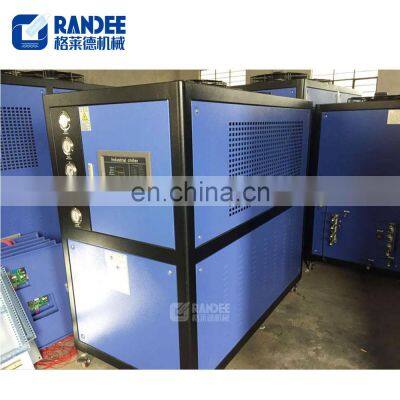

Pictures of Air Cooled Water Chiller :

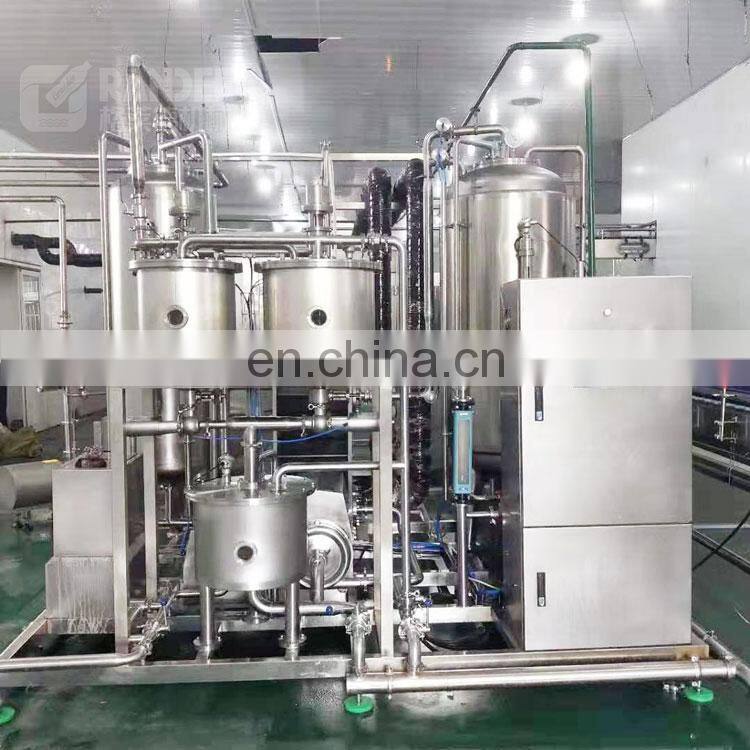

Working with carbonation mixer
Technical Data:
|
Model |
YDL-20F |
|||
|
Rated cooling capacity |
54kw |
|||
|
46440Kcal/hr |
||||
|
Voltage |
3P/380V/50Hz or Customized |
|||
|
input power |
Kw |
19 |
||
|
Compressor |
type |
All closed vortex compressor |
||
|
Quantity |
set |
2 |
||
|
input power |
KW |
15 |
||
|
|
feeding water temperature |
℃ |
3 |
|
|
water outlet temperature |
℃ |
-2 |
||
|
Flow rate |
m3/h |
10 |
||
|
connecting pipes specifications |
mm |
DN50 |
||
|
|
Type |
Imported high efficiency copper and aluminum foil tightness expanding type finned heat exchanger |
||
|
Air fan |
input power |
Kw |
2.0 |
|
|
|
A |
6 |
||
|
chilled water pump |
Type |
Horizontal vortex pump |
||
|
Input power |
Kw |
3 |
||
|
flow rate |
m3/h |
25 |
||
|
Head |
Mh2O |
24 |
||
|
Dimension |
length |
mm |
2200 |
|
|
Width |
mm |
1000 |
||
|
Height |
mm |
1800 |
||
|
Water tank volume |
L |
420 |
||
|
Machine weight |
kg |
880 |
||
