Bottle spray sterilizing machine cooling warming machine warmer machinery
- 1000 per Month
- T/T Credit Card
- Air Cooled Water Chiller 10 Ton Price/Beverage mixing system cooling
- 1000 liter Water Chiller / 15 hp Air Cooled Water Chiller
- 15 hp Air Cooled Water Chiller / 20 hp water chiller/CSD mixing system cooling
- 20 hp Air Cooled / Cooling Water Chiller for Carbonated drinks mixing machine/mixers
- 15 ton / 30 hp Industrial Water Cooled Chiller Price
- 10 TON Air Cooled Industrial Water Chiller 20 hp air cooling water chiller
Product Description

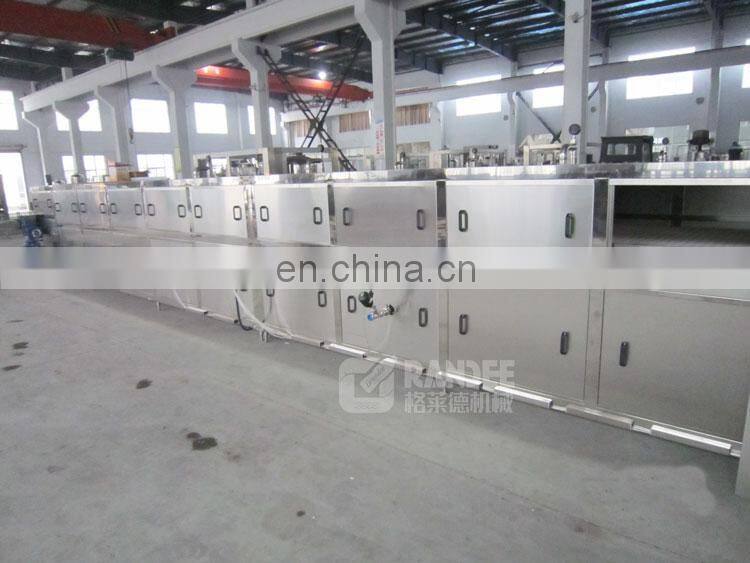

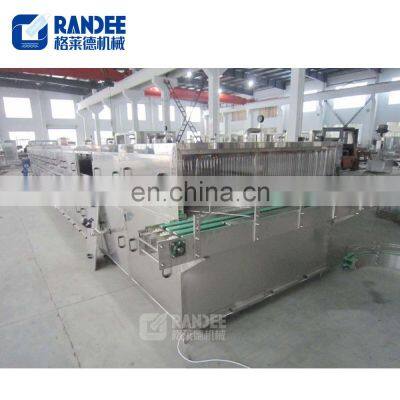

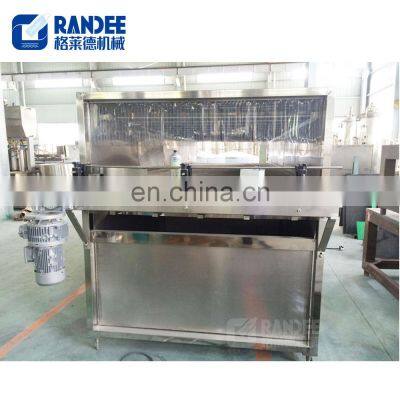

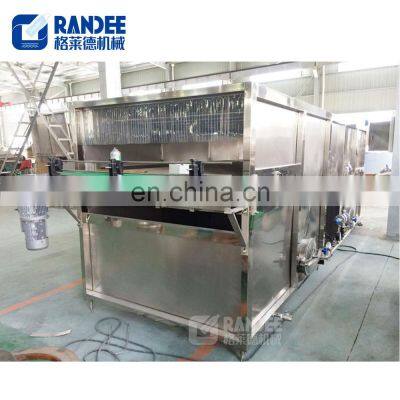

Bottle spray sterilizing machine cooling warming machine warmer machinery
Machine description :
The bottle warming machine adopts a three section steam recycling heating design,the water spraying water temperature shall be controlled around 40 degrees. After the bottle go out, the temperature will be around the 25 degrees. Users can fix the temperature according to need. All the end of the warmer, it is equipped with the drying machine to blow the water outside the bottle.
It is equipped with the temperature control system. Users can adjusted the temperature by himself
Main features :

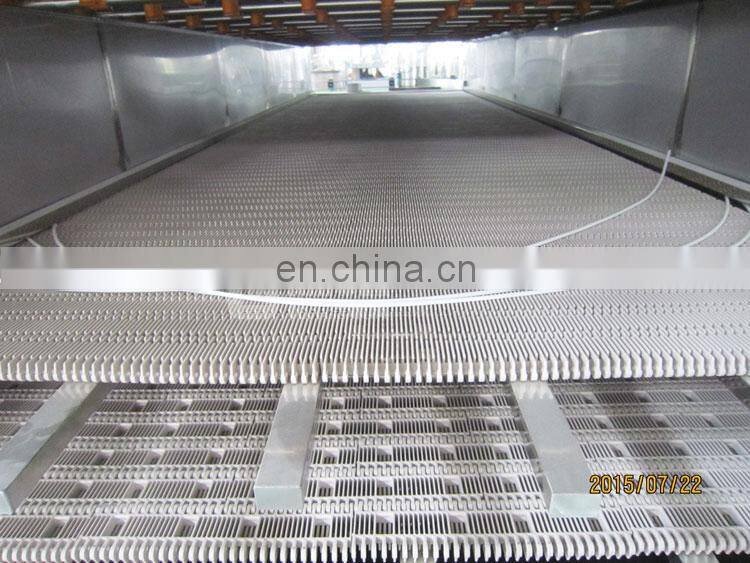

The conveyor is frequency controlled.
All nozzle and spray tubes are made of stainless steel and spray evenly
The catchment flume is made of stainless steel and equipped with a level alarm device
The spray tunnel has a spray cooling recycling water pump and steam adjustment valve
Steam consumption is adjusted according to the temperature.
Pump: Hangzhou Nanfang ; Electrical-Magnetic, Air components: Taiwan AIRTAC
Main technical parameter:
Model | WP-4000 | WP-6000 | WP-12000 | WP-16000 |
Output capacity(B/H) | 3000-5000 | 6000-9000 | 10000-15000 | 24000-36000 |
Heating temperature(°C) | 37-45 | |||
Cooling time(min) | 12-15 | |||
Conveying belt linear speed(mm/min) | 100-550 | |||
Width of chain(m) | 1.22 | 1.22 | 1.22 | 1.22 |
Steam pressure(Mpa) | 0.3-0.4 | |||
Water consumption(m3/h) | 6 | 9 | 15 | 28 |
Steam consumption(kg/h) | 80 | 120 | 250 | 280 |
Motor power(kw) | 6 | 7.55 | 8.6 | 18 |
Overall dimension(mm) | 6200*1500*1700 | 15800*1500*1700 | 15800*1800*1700 | 22000*800*1700 |
Weight(kg) | 2500 | 3200 | 4300 | 5500 |
Machine show:

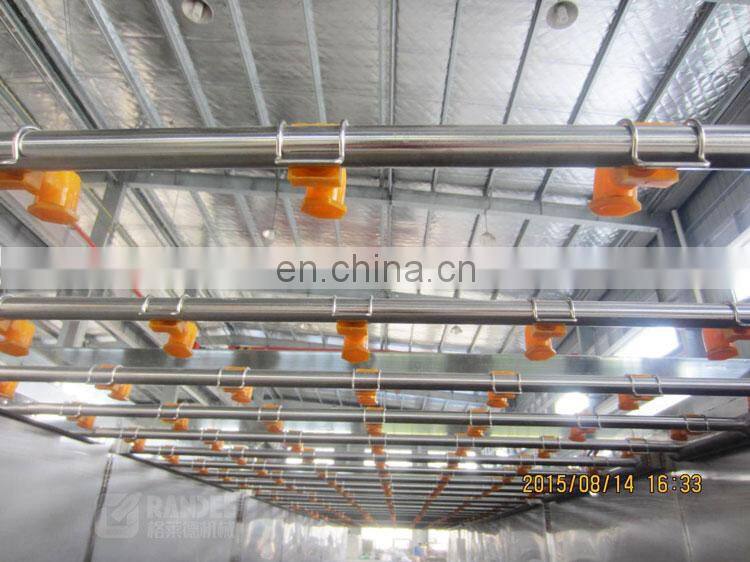

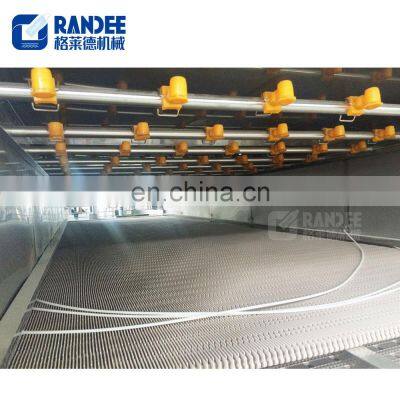

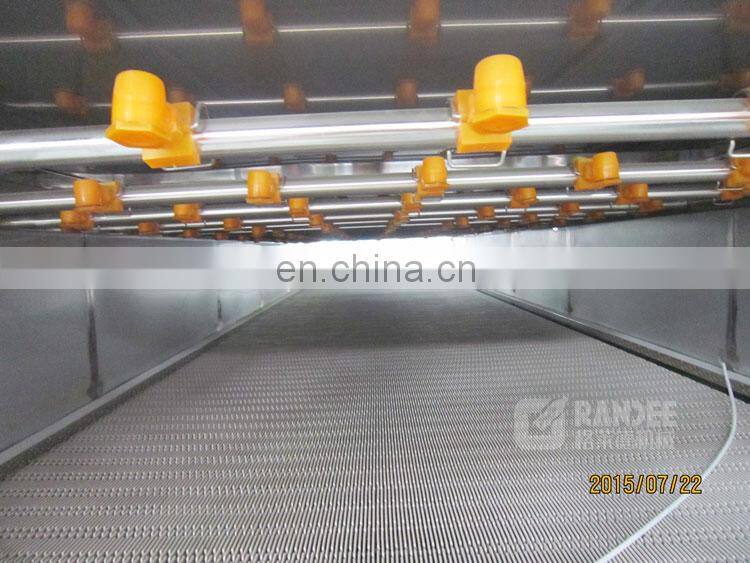

Spraying part
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
