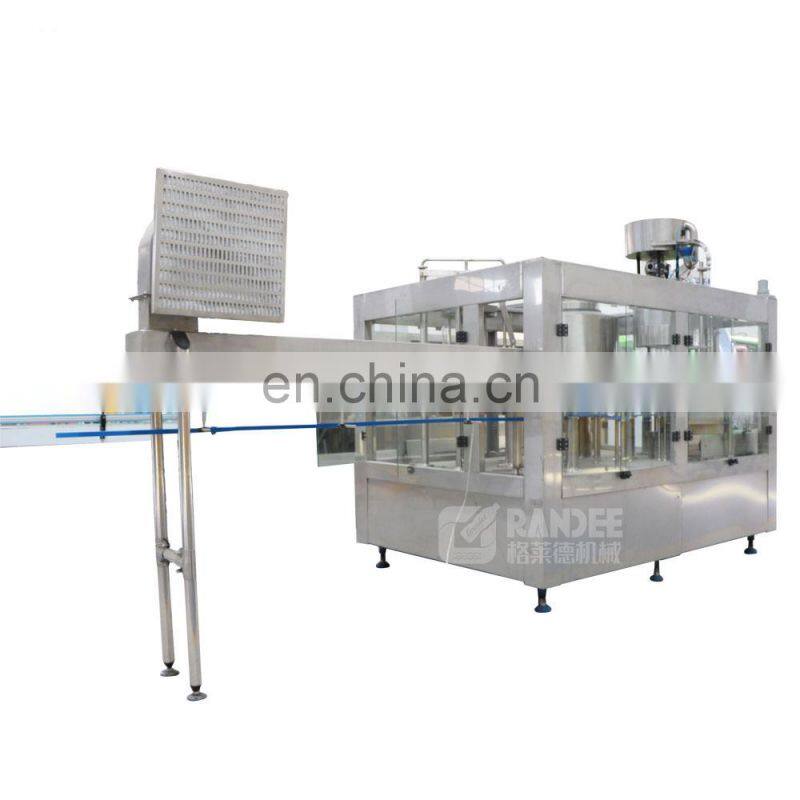

500-800BPH Automatic 3L 5L 10L Big Bottle Water Rinsing Filling Capping Screwing Machine

Washing Part:

The bottle enters into the rinsing part of three-in-one machine through air conveyor.
After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

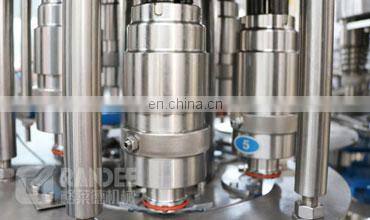

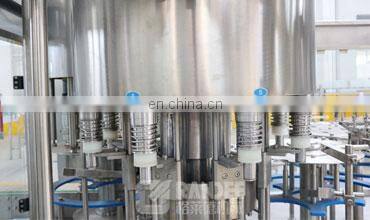

Filling part:

Long tube filling type with 2 times filling process to make sure perfect filling level

Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

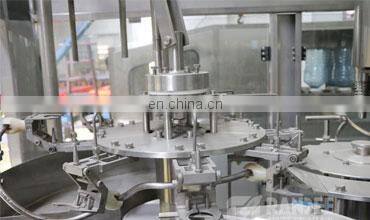

Capping Part:

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Air conveyor:

Air conveyor is fixed on the floor, with fan installed on the top.
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS304/316
Rack made by high quality carbon steel welded.

Conveyor system

Energy saving. High efficient. Adapt to customer factory layout
Special lubrication system, keep products clean, health, safety
Electric eyes design keep whole line running safety and quickly

Diameter Φ140~Φ180mm    Highness:300~410mm

RO System

This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.

This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.

This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.

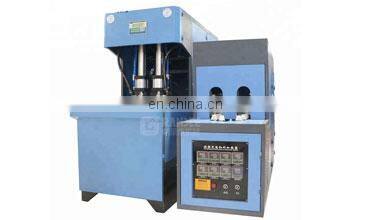

Semi Automatic Blowing Machine

1. Semiautomatic Blowing Machine for 300BPH-650BPH from 3-10L bottle  with 1 or 2 cavities.

Automatic PVC sleeve labeling machine

Capacity: 100-350bottles/min can be chosen

Label material: PVC PET OPS, etc

Bottle material: PET PE PP Glass

Bottle Diameter: 28 ~ 120mm

Bottle Height: 15~320mm

Bottle shape: round, square, ellipse, rectangular

Label length: 30~250mm(max)

Automatic PE film shrink packing machine

Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling

Speed: 8-12packages/min

Power (rated/real): 26kw / 16kw

Max. packing size: 420*300*350mm(LxWxH)

Max. sealing size: 650mm
