Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > Lamella Tube Settler Sedimentation Tank Honeycomb Inclined Plate Settler
Lamella Tube Settler Sedimentation Tank Honeycomb Inclined Plate Settler
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1x1m Tube Settler Plate Hexagonal Honeycomb Slope Tube Sheet Lamella Tube Inclined Settler MediaNegotiableMOQ: 1 -
800liters Household Small HDPE Material Three Chambers Underground Septic TankNegotiableMOQ: 1
-
Underground Used Septic PP Plastic Material Household Biogas Septic Tank For Sewage TreatmentNegotiableMOQ: 1
-
PE Plastic Biogas Septic Tank Toilet Sewage Treatment Tools Underground Septic TankNegotiableMOQ: 1
-
2500L PE Three Chamber Bio Digester Septic Tanks for Sewage Treatment PE PP Household Biogas Stackable Plastic Septic TankNegotiableMOQ: 1
Product Overview
Lamella tube settler sedimentation tank honeycomb inclined plate settler
The hexagonal honeycomb slope tube produced by our company uses EPR copolymer plastic as the material,it was hot drawn into hexagonal tube by a infrared thermal machine,and then using patented technology and high frequency to weld into a whole product,our staff will carry on-site installation for the customer.Inclined tube is mainly used for a variety of precipitation and sand removing.For a decade,it is a water treatment device that's widely used in the drainage works.It has the advantages of being suitable for a wide range,high treatment efficiency,small footprint.
FEATURES AT A GLANCE
Lamella tube settler sedimentation tank honeycomb inclined plate settler
1. Loose sheets tube settler
2. Tube settler block
3. PP tube settler and PVC tube settler
4. White color, Blue color or Black color

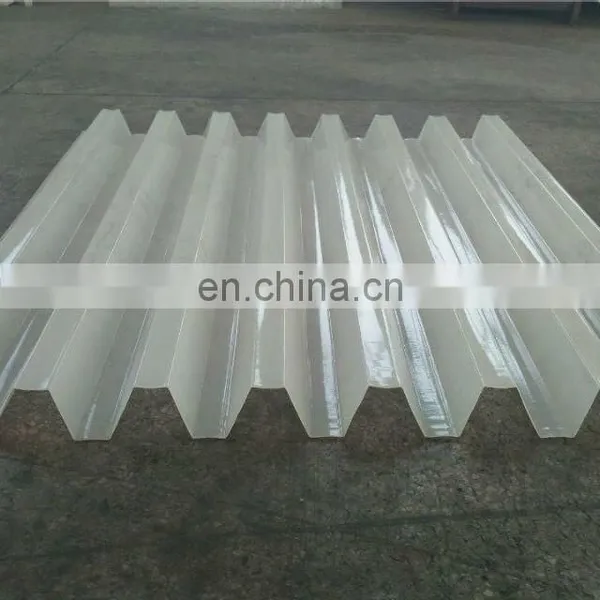

Loose Sheets

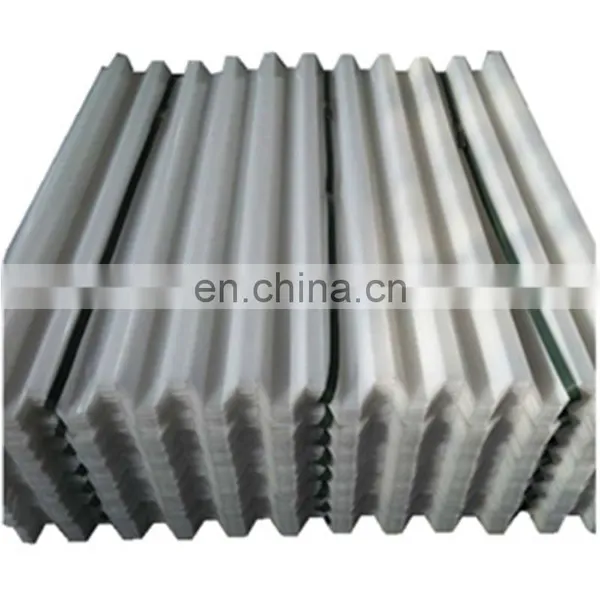

Tube Settler Block

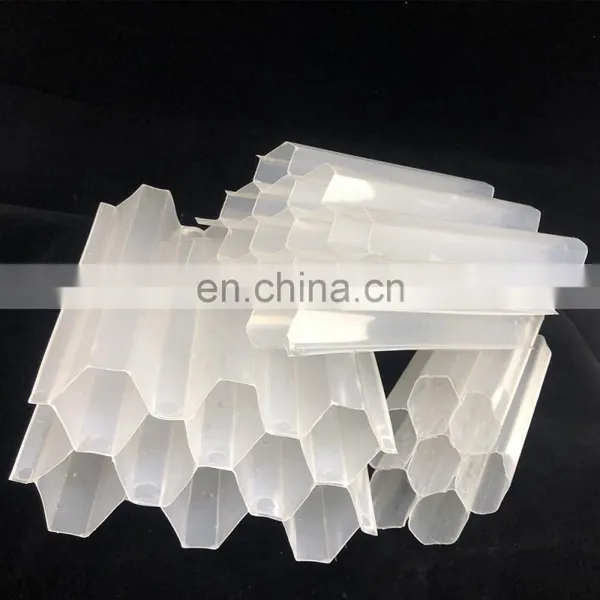

Tube Settler Sample
PRODUCT SPECIFICATIONS
No |
Item |
Data |
1 |
Sheet Size |
1000mm*1000mm, 1000mm*1500mm |
2 |
Aperture |
25mm, 35mm, 50mm and 80mm |
3 |
Thickness |
0.4mm, 0.45mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm, 1.2mm. |
4 |
Material |
PP material or PVC material |
1. Large wetted perimeter, hydraulic radius is small.
2. The laminar good condition, particles falling from flocculent flow interference.
3. When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.
4. In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.
5. The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate the clear pool and pulse clarify pool two to three times.
6.The material is with UV radiation protection.
50mm aperture tube settler
80mm aperture tube settler
PRODUCT CONFIGURATION
Electrical Iron:

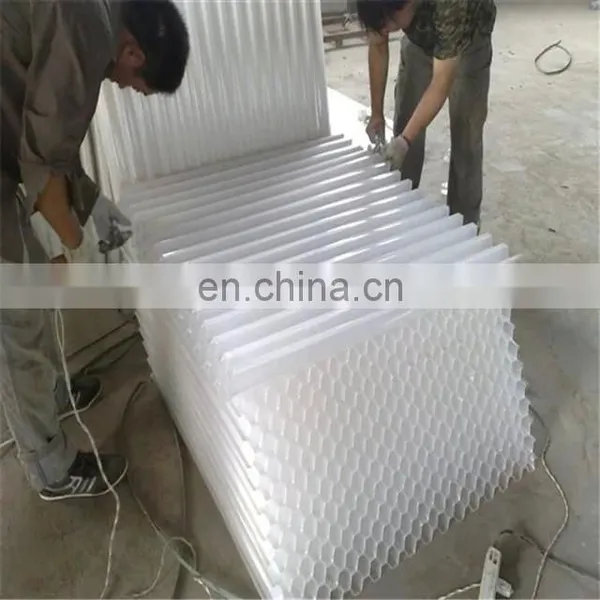

It need use electric iron to weld the loose sheets tube settler to blocks.
Successful Project
Package and shipping
Tube Settler Package
We always pack loose sheets tube settler on pallet with film wrap.
FAQ
Q: Are you a trading company or a manufacture factory?
Q: How about your delivery time?
A: Urgent inquiry accept.
<50 cubic meter, within 7 days
<200 cubic meters . within 15 days
<500 cubic meters, within 20 days
A: Our factory found in 2016, it's professional manufacturer in China
Q: What is your payment terms ?
A: Normally ,30% as the deposit first by T/T, the rest 70% will be paid before shipping by T/T.
Q: How about your delivery time?
A: Urgent inquiry accept.
<50 cubic meter, within 7 days
<200 cubic meters . within 15 days
<500 cubic meters, within 20 days
