Specification
PVC type
PP type
PVC/PP Counter flow Cross Corrugated Cooling tower Fill filler
Material: PVC,PP
Water temperature: -35~70℃Application: counter-flow cooling tower
Sheet Thickness: 0.25-0.45mm
Sheet pitch:12/15/19mm
Sheet width: 150/300/305/600/605mm
Sheet length: customized
Density: 1.39-1.45g/m3
Product name | OW cooling tower filler |
Material | PP/PVC |
Width | 300; 305; 600; 610mm |
Length | Any |
Fluted size(mm) | 12/15/19mm |
Surface area | 248m2/m3 |
Face velocity | 2.0-3.5m/s. |
Feed Water Temperature | PVC can reach the highest 68℃; If the water temperature is higher than 70℃, it needs PP material |

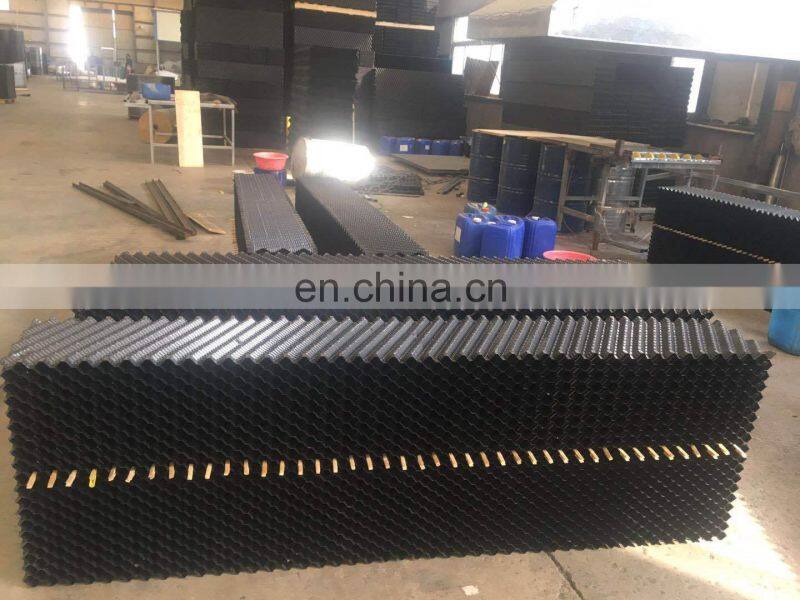

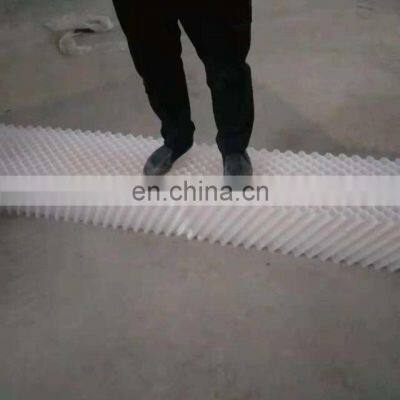

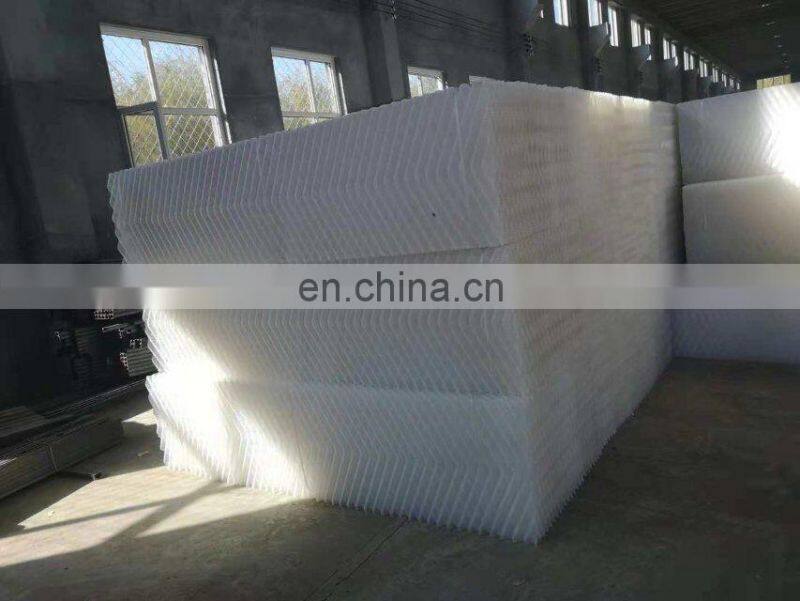

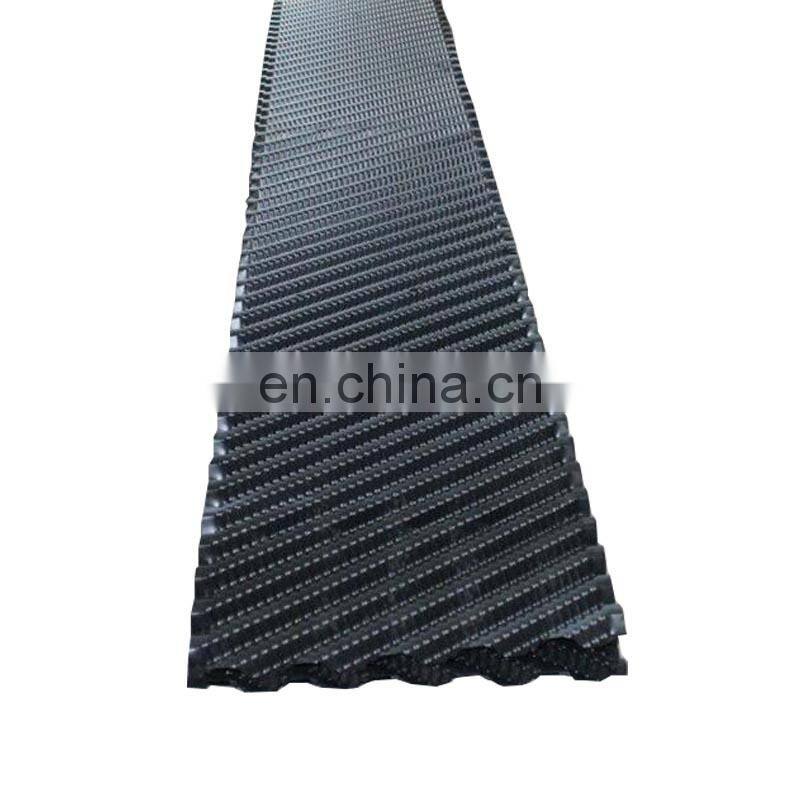

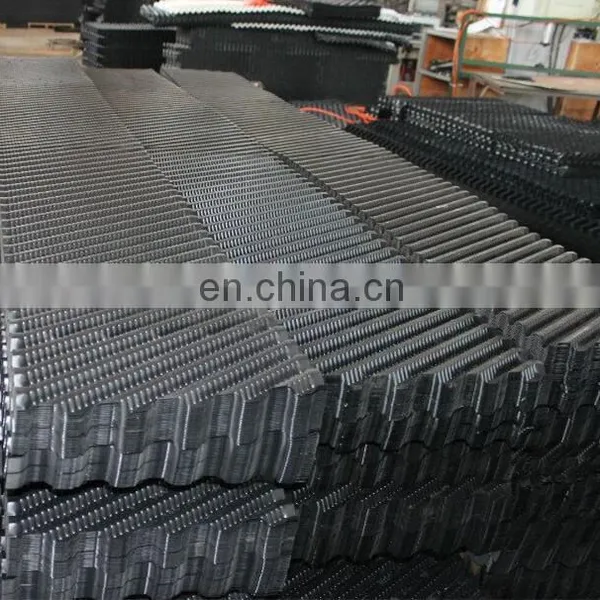

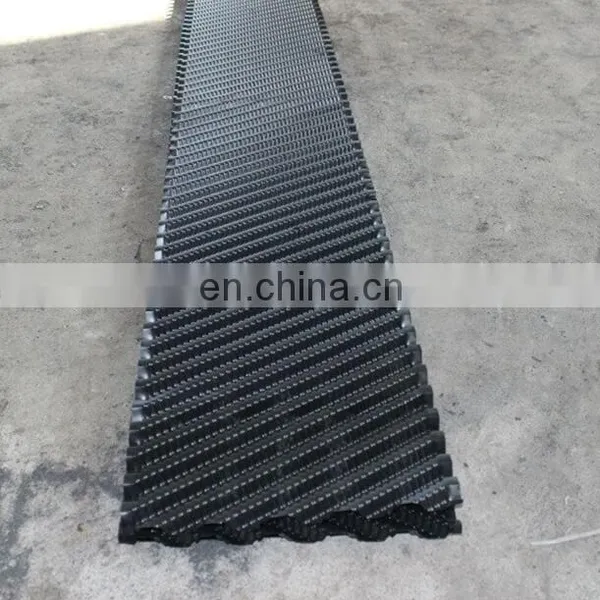

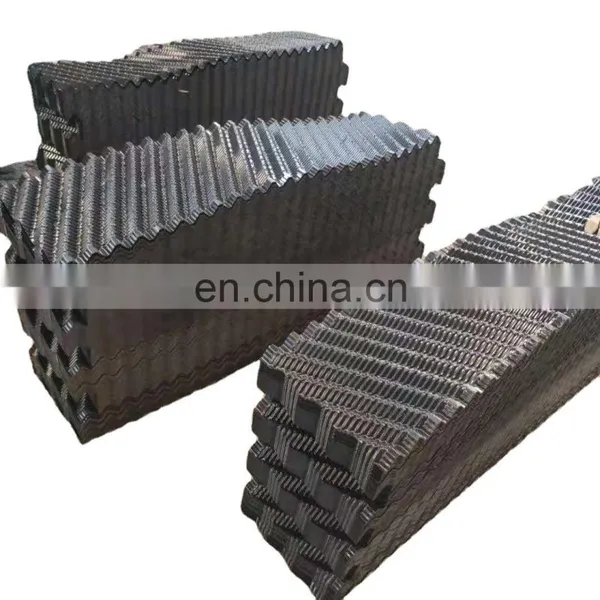

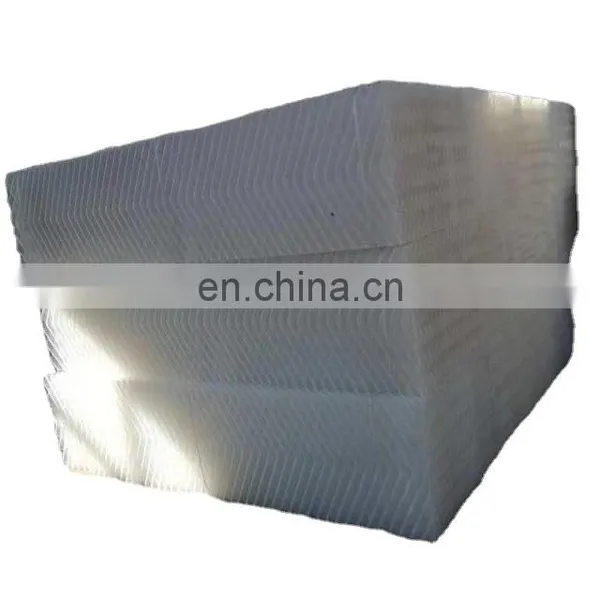

Details Images
There are many forms and structures of cooling tower fill, each type has its own characteristics to fit various applications. Cooling tower fill is to put water surface area in contact with air as much as possible, for the longest amount of time possible. Pvc fills allow the water to form thin flowing sheets to expose as much water surface area as possible to the interacting flow.
Oblique cooling tower fills also called cross-fluted film fill media manufactured from rigid PVC sheets conforming to CTI STD-136 for cooling tower heat-transfer applications. The media is fabricated from corrugated PVC sheets that are solvent-welded for maximum strength and resistant to UV, rot, fungus, organic and inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters.
Oblique cooling tower fills also called cross-fluted film fill media manufactured from rigid PVC sheets conforming to CTI STD-136 for cooling tower heat-transfer applications. The media is fabricated from corrugated PVC sheets that are solvent-welded for maximum strength and resistant to UV, rot, fungus, organic and inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters.
It has the advantages of direct replacement, performance enhancement, and water condition compatibility. Allow various heat loads, flow rates, water quality, and horse power combinations selections
Our mold and new materials details
We have many molds for cooling tower fills, and we are professional manufacturer ,we can produce the cooling tower fills as your required. we accepy costomized. welcome to contact us. we will give you the best quality fills and best service
Product production process
Product packaging
CF1900 plastic PP/PVC fillers cooling tower media honeycomb fill
Packing normally by film and pallet, or we can do the packing as your required
Other fills
Why Choose Us
Q 1: Your company is a factory or trading company?
A: Hebei Lanyu is a factory, we have own factory. our company have exported the cooling tower fills for 9 years. we have 3 subsidiary companies.
A: Hebei Lanyu is a factory, we have own factory. our company have exported the cooling tower fills for 9 years. we have 3 subsidiary companies.
1. We can glue the cooling tower fill pieces in block and load in container, which requires more space and cost more freight.
2. Send the pieces without gluing together, which will save much more freight. And the video of how to glue the pieces will be
sent too.
2. Send the pieces without gluing together, which will save much more freight. And the video of how to glue the pieces will be
sent too.
