Marley Cooling Tower Fill Replacement MX75 Cooling Tower Fill Pack
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1380mm EACCooling Tower PVC Cross Flow,counter Flow Industrial Fluids Cooling Cooing Tower Fill With Drift EliminatorNegotiableMOQ: 1 -
610mm Cooling Towr Fill Sheets Film PVC/PP Cooling Tower FillingNegotiableMOQ: 1
-
Drainage Engineering 50mm Aperture Plate Clarify Water PP Tube SettlerNegotiableMOQ: 1
-
CF1900 Pvc Cooling Tower Infill Media High Temperature Honeycomb 19mm Counter Flow Cooling Tower FillNegotiableMOQ: 1
-
Customized KK 730mm*730mm*0.3mm PP PVC Cooling Tower Filling MediaNegotiableMOQ: 1
Product Description
Marley Cooling Tower Fill replacement MX75 Cooling Tower Fill Pack
Cooling Tower Fill is one of the most important components for exchange of gas and water in cooling tower. It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation. With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, obliquely wave, which has the heat dissipation good performance ,Ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of large, medium, small, cooling tower.
Hanging Type Cooling Tower Fill new material Cooling Tower PVC Filler
Type |
Marley Cooling Tower Fill replacement MX75 Cooling Tower Fill Pack |
Material |
PVC |
Color |
Black ,grey,blue ,green |
Pitch |
19mm |
Thickness |
0.28mm-0.38mm, other thickness can be customized |
length |
any |
Tensile strength |
Longitudinal direction 47.0 MPA, landscape proentation:42.0 MPA |
width |
915mm,1220mm,1520mm |
Application tempereture |
-15℃~65℃ |
Used for tower |
Crossflow cooling tower |
The cooling tower filler with rough surface and smoother surface has good hydrophilicity, and the water absorption rate is less than 0.015%, so that more water flows into a film without splashing, so that the water and air are more fully contacted and the surface is disturbed when the water and air are flowing. Big. After the packing is assembled, the air inlet surface is a honeycomb-shaped deflector, which has a good uniform air distribution effect, and improves and stabilizes the heat exchange intensity of water and air.
The inlet end is inclined at an angle of 30°, which effectively reduces the loss of drifting water. A water collector designed according to the impact separation method is installed at the end of the packing to effectively control the floating water loss within five hundred thousandths.
Easy to install, easy to clean, easy to transport
The heat dissipation filler adopts a non-adhesive suspension type, which is easy to install and easy to clean, and successfully solves the problem of deformation of the adhesive filler due to dust absorption and dirt accumulation and self-weight, and the problem of more serious dirt accumulation after deformation and difficult to clean. The filler has good flame-retardant performance. After testing: the flame-retardant oxygen index is greater than 28
The large "honeycomb" structure is designed with a diversion function, has a good uniform air distribution effect, improves and stabilizes the heat exchange intensity of water and air, and the air inlet is inclined at an angle of 30 degrees to reduce water drift loss. The combination of positioning and equal spacing facilitates the formation of a large-area flowing water film perpendicular to the surface of the water flow, and promotes the contact surface of the large airflow. The self-contained louver is formed on the filler to make the air-water ratio distribution in the filler even and reasonable. The dewatering device is integrated with the filler molding, which effectively removes the water droplets in the hot and humid air and returns to the tower, greatly reducing the loss of floating water. The floating water loss rate is less than 0.001%.
Product application
High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill Cross flow cooling tower fill make the water meet th air crossly, when cooling tower air entry the tower from two sides , the hot water come into the tower from top, this meeting between hot water and cooling air was named cross flow, the result is the water become the lower temperature and flow away from the tower bottom, and the hot air is uprising in the tower top
Product details

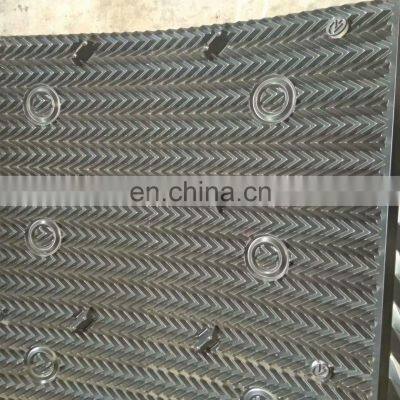

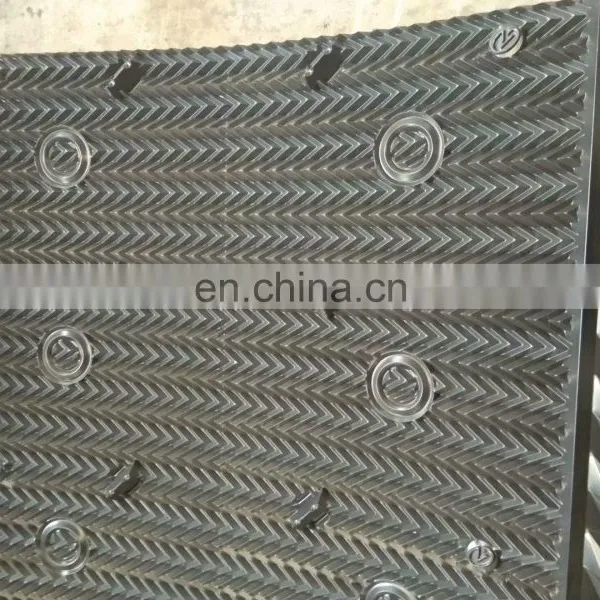

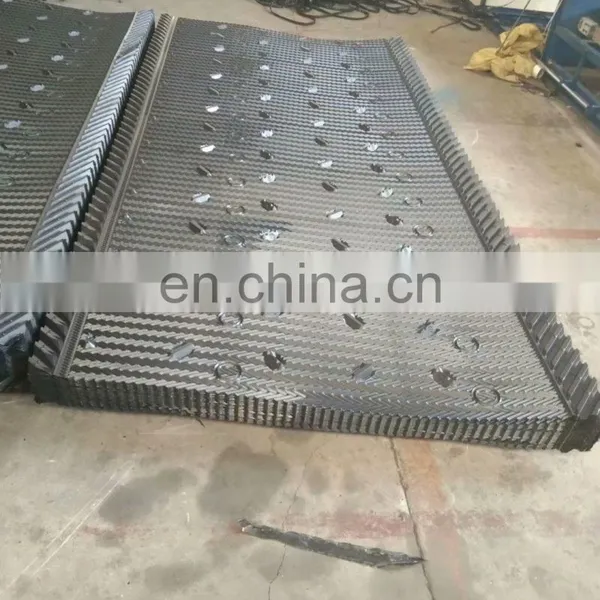

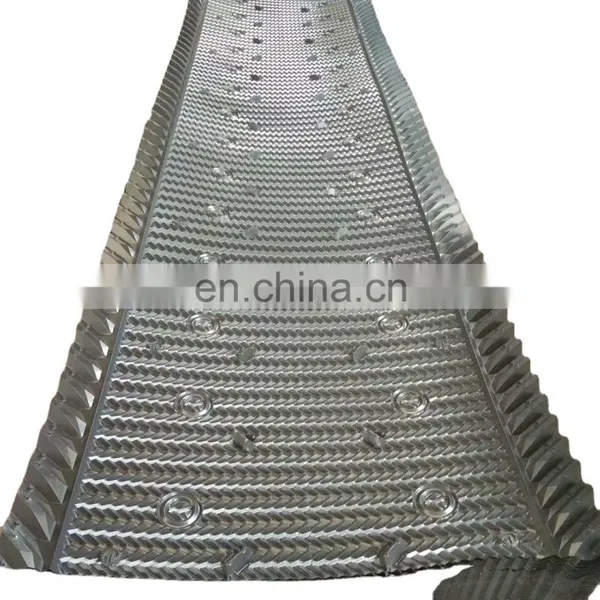

High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill details
Product production process

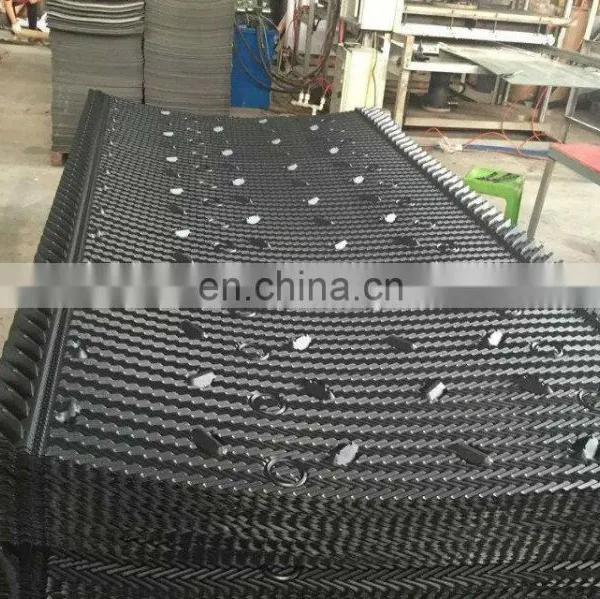

High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill process
Packing & Delivery
High quality Anti UV Non-defrmation MX75 cooling tower fill Marley infill packing
