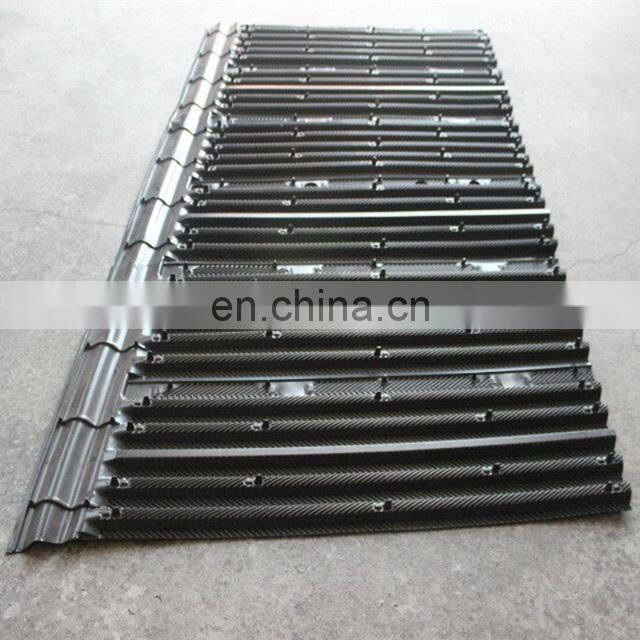

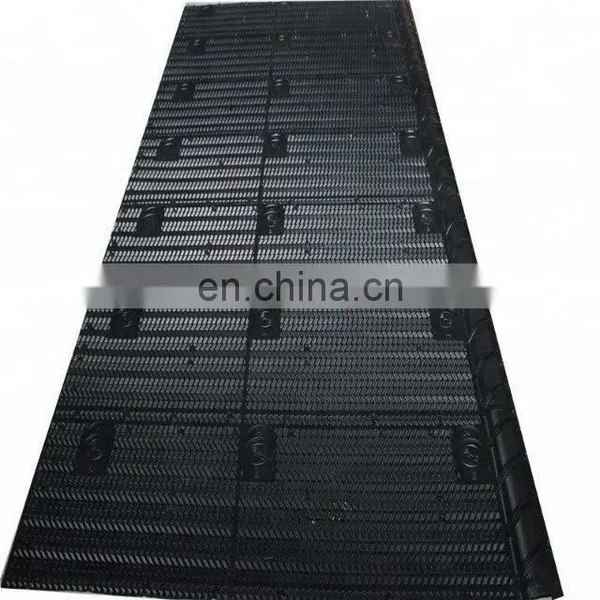

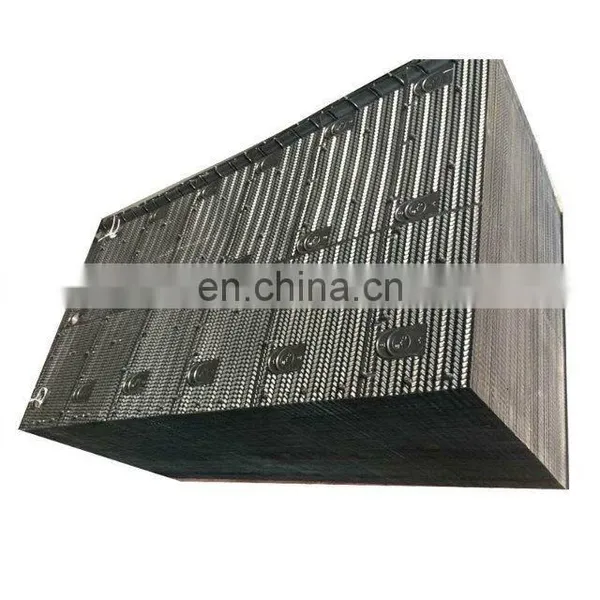

Customized Width 1300mm Hanging Cooling Tower Fill Media PVC EAC Filler Cross-flow Cooling Tower Infill
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized New PVC Rolled Type Filling Material Height 300mm Counter-flow Round Cooling Tower FillNegotiableMOQ: 1 -
Cheap Price 1330mm Eac PVC Sheet Hanging Cooling Tower Fill MaterialNegotiableMOQ: 1
-
Best-selling Cooling Tower PVC Fill PVC Corrugated Sheet 305/610mmNegotiableMOQ: 1
-
ML Width 1220mm Length 2980mm Thickness 0.38mm MX75 PVC Film Fill With Drift Eliminator Louvers Cooling Tower FillerNegotiableMOQ: 1
-
PVC/PP Counter Flow Cross Corrugated Cooling Tower Fill FillerNegotiableMOQ: 1
Customized width 1300mm hanging cooling tower fill media PVC EAC filler cross-flow cooling tower infill
Cooling tower filling, also named as cooling tower fill media, or cooling tower fill pack, or cooling tower infill, or cooling
tower filler, is made of PVC or PP plain plate, hot pressed in a certain mould and produced with different designs and sizes.
It is a media located in the middle or bottom of the cooling tower. Some cooling towers would be full of the fill media, some would have half and half of the fill media, and some large cooling towers would be installed 1 layer of the fill media in the bottom.
The function of cooling tower filling is to increase the contact area between hot water and air and to extend the time of water flow, thus to help reduce the water temperature quickly. It is widely used in many kinds of cooling towers, especially industrial cooling tower, such as nuclear plant, energy and mining, big factory, thermal power factory, large steel mill, etc.
Model name |
Cooling tower fill --- EAC |
Material |
PVC, PP |
Production technology |
Hot-pressed |
Length |
Any length |
Width |
380mm, 1300mm, 1330mm |
Thickness |
0.35mm ~ 0.45mm |
Drift eliminator width |
145mm |
Cooling tower type |
1300mm and 1330mm width for cross-flow cooling tower 380mm width for counter-flow cooling tower
|
Installation method |
1300mm and 1330mm width: by hanging 380mm width: by gluing
|
Sample |
Provided |
Customization |
Accepted |

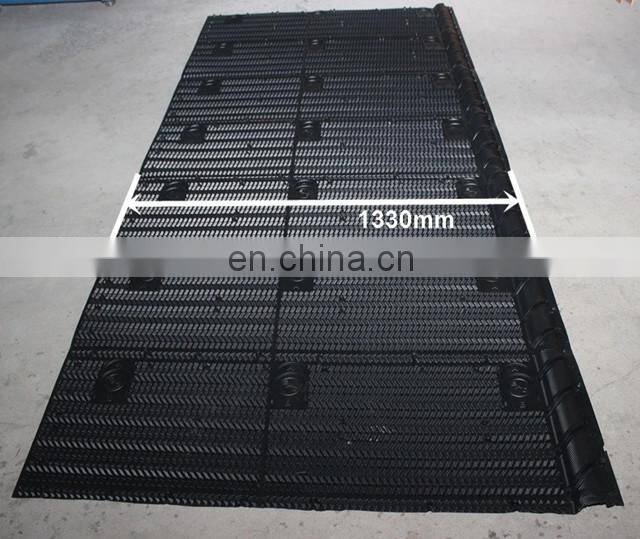

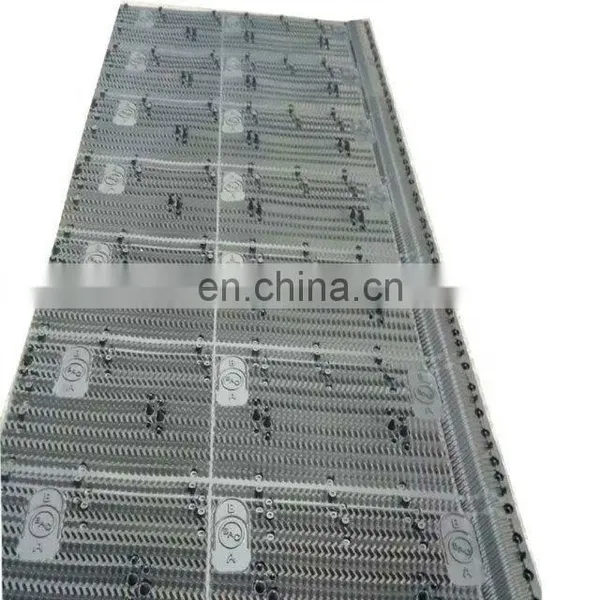

The width is 1330mm for horseshoe shaped holes, and the 1300mm for round holes. It is changeless because of the changeless mould decide it. But the length can be customized, such as 2840mm, 3050mm, 3098mm or 3100mm.
The thickness of EAC fill is 0.38mm at least. Some customers request the thickness to be 0.45mm or 0.5mm. That is becasue the large area of the surface meet hot water and hanging for long time, it needs strong support power if it is thick enough, or it will break like a thin paper.

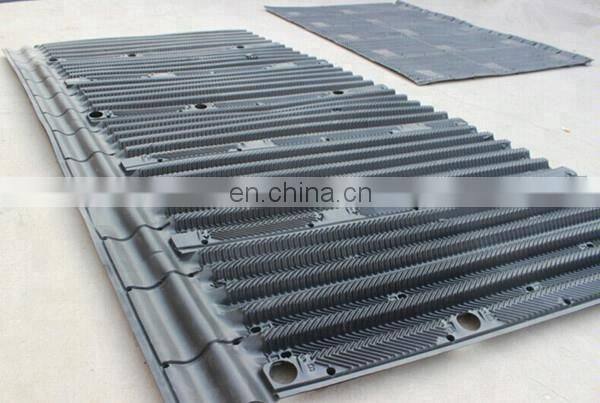

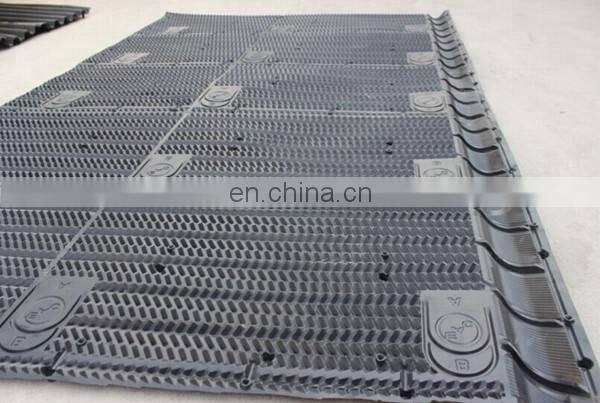

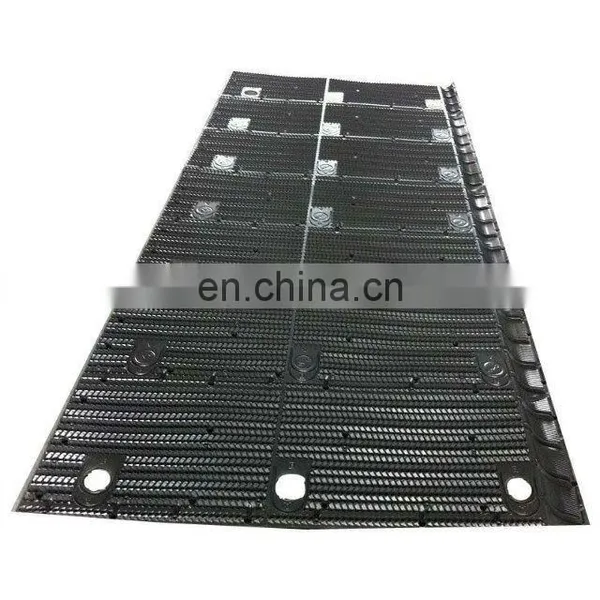

the 1300mm width for round holes the 1330mm width for horseshoe shaped holes
Product Feature
* Excellent Performance
* Good heat exchange perfomance, and excellent Cooling efficiency
* Anti corrosion
* Eco-friendly
* Not deformed easily
* Easy installation
* Low cost
* Anti-aging
* Good heat exchange perfomance, and excellent Cooling efficiency
* Anti corrosion
* Eco-friendly
* Not deformed easily
* Easy installation
* Low cost
* Anti-aging

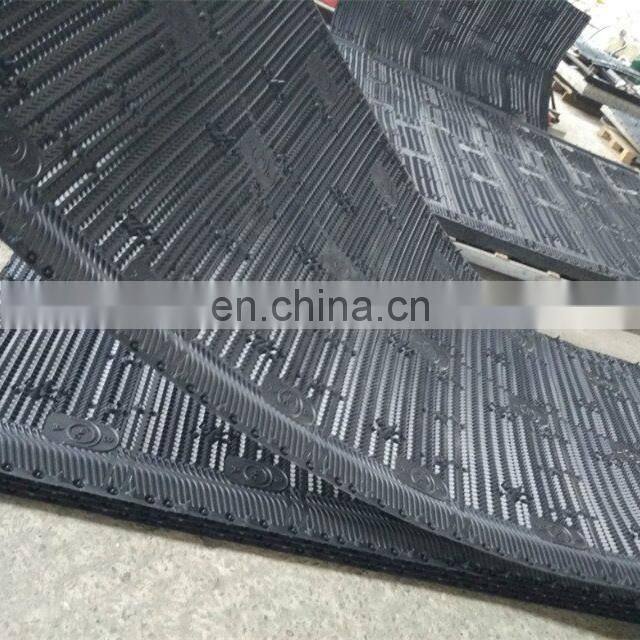

Product Details
Production Process
Package and Transportation
Package: In bundle, or by pallet, or by wooden box, or as per customer's specific requirement.
Delivery time: Usually the delivery time is within about 20 days after payment.
Attention: When pack the cooling tower filling, please do not use airtight or air impermeable material, such as transparent
plastic film or bubble plastic film, because that kind of packing material would keep the PVC fill in a very high temperature
environment to make the PVC fill deform easily and affect its normal performace and usage.
Delivery time: Usually the delivery time is within about 20 days after payment.
Attention: When pack the cooling tower filling, please do not use airtight or air impermeable material, such as transparent
plastic film or bubble plastic film, because that kind of packing material would keep the PVC fill in a very high temperature
environment to make the PVC fill deform easily and affect its normal performace and usage.
About us
FAQ
Q: Are you a trading company?
A: Yes, and we are also a real manufacturer, and can also produce customized products.
Q: Can you provide a sample for our test?
A: Yes, we can provide a free sample for your test and reference.
Q: How do you guarantee the quality?
A: We have our inspection department who inspect every link strictly from raw material purchasement to production untill package and transportation.
Q: What is your payment term?
A: Usually our payment term is by T/T and LC, as well as Western Union and Paypal.
Q: Can you provide a sample for our test?
A: Yes, we can provide a free sample for your test and reference.
Q: How do you guarantee the quality?
A: We have our inspection department who inspect every link strictly from raw material purchasement to production untill package and transportation.
Q: What is your payment term?
A: Usually our payment term is by T/T and LC, as well as Western Union and Paypal.
Welcome to contact me for more detailed information!
