Product Description

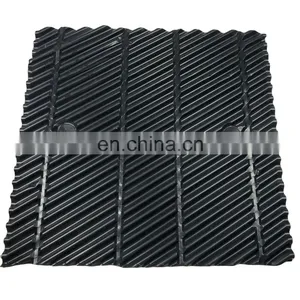

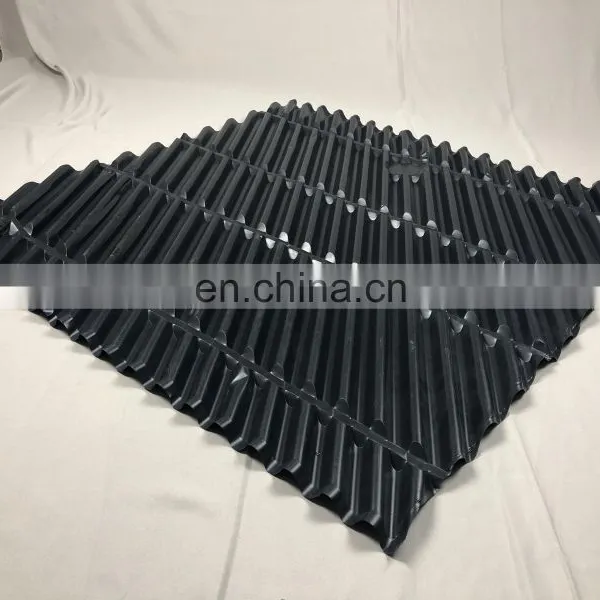

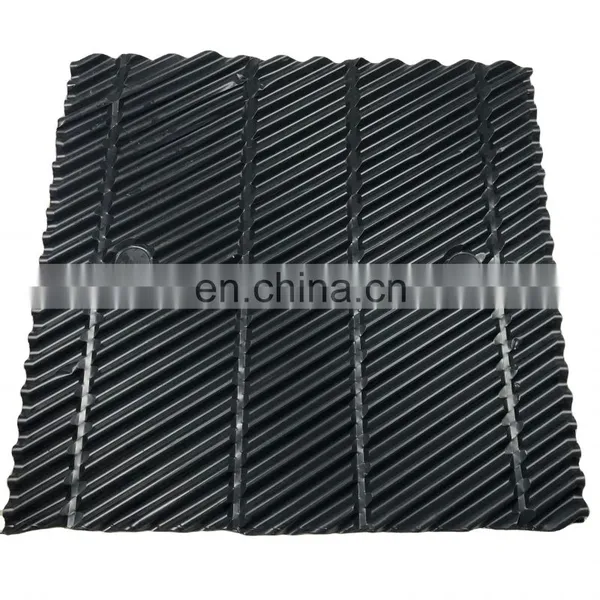

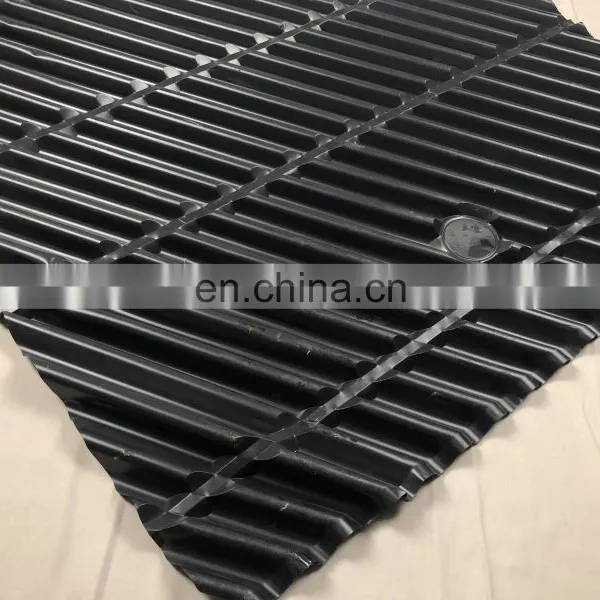

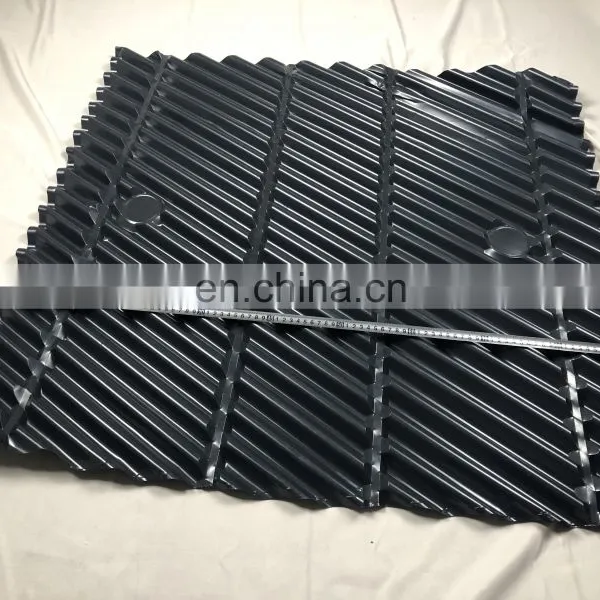

Counterflow replacement MC75 Cooling Tower PVC FIlls
MC75 cooling tower fill is a film fill system designed for counterflow towers offering you several distinct advantages. Crossed corrugations provide the surface area and turbulence to develop efficient heat transfer. The corrugations inherently establish uniform fill sheet spacing at 0.75.
Specification
Product name |
MC75 Counterflow Cooling Pad Cooling Tower PVC FIlls |
Material |
PVC,PP (100% new material or 80% new material ) |
Color |
Black |
Pitch |

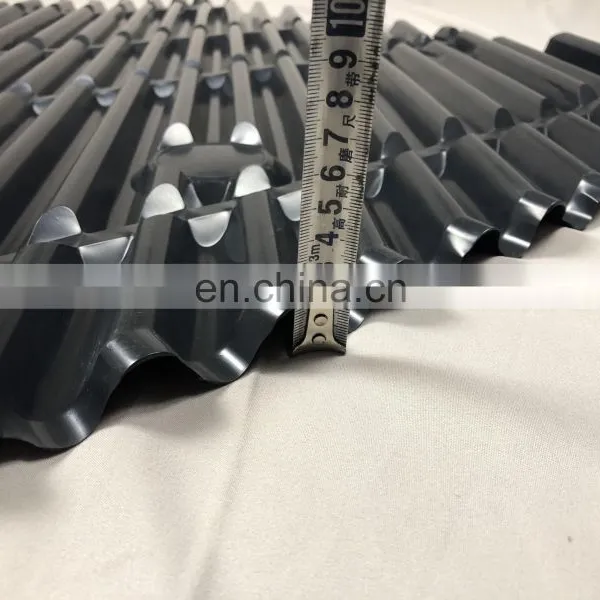

19mm |
Thickness |
0.25-0.4mm |
Dimension |
1830x1220mm,1500x600mm |
Tensile strength |
Longitudinal direction 47.0 MPA, landscape proentation:42.0 MPA |
width |
600mm 1220mm |
Application tempereture |
-15℃~65℃ |
Used for tower |
Counterflow cooling tower |
Product details
1. MC75 is a film fill system designed for counterflow towers offering you several distinct advantages.
2. Crossed corrugations provide the surface area and turbulence to develop efficient heat transfer. The corrugations inherently establish uniform fill sheet spacing at 0.75”
3. The material is extruded and manufactured to rigid specifications before forming.Using Marley MC75 film fill in place of
existing splash type fill in counterflow towers usually means reduced fill height, which translates into reduced pumping head.
4. MC75 will also provide greater cooling tower capacity, which means your current performance level will require less fan energy. The fill pack depth (air travel) is variable to provide the proper heat transfer area within a single fill layer.
5. If another layer of fill is necessary for situations where additional air travel is required, it will be limited to only one.
Limiting the number of interfaces between packs minimizes restrictions that usually cause fill clogging.
6. MC75 counterflow fill can be hung from structural members or it can be bottom-supported in virtually all counterflow cooling towers, regardless of a cooling tower’s age or manufacturer.
2. Crossed corrugations provide the surface area and turbulence to develop efficient heat transfer. The corrugations inherently establish uniform fill sheet spacing at 0.75”
3. The material is extruded and manufactured to rigid specifications before forming.Using Marley MC75 film fill in place of
existing splash type fill in counterflow towers usually means reduced fill height, which translates into reduced pumping head.
4. MC75 will also provide greater cooling tower capacity, which means your current performance level will require less fan energy. The fill pack depth (air travel) is variable to provide the proper heat transfer area within a single fill layer.
5. If another layer of fill is necessary for situations where additional air travel is required, it will be limited to only one.
Limiting the number of interfaces between packs minimizes restrictions that usually cause fill clogging.
6. MC75 counterflow fill can be hung from structural members or it can be bottom-supported in virtually all counterflow cooling towers, regardless of a cooling tower’s age or manufacturer.
Product application
1520mm Marley PVC Cooling Tower Fill Packing Marley Cooling Tower film Cross flow cooling tower fill make the water meet th air crossly, when cooling tower air entry the tower from two sides , the hot water come into the tower from top, this meeting between hot water and cooling air was named cross flow, the result is the water become the lower temperature and flow away from the tower bottom, and the hot air is uprising in the tower top
Packing & Delivery
1220mm ML Hanging Fill Cross flow drift eliminator cooling tower fill PVC material packing
