Heavy Duty Grate FRP/GRP Plastic Flooring Fire Resistant Fiberglass Pultruded Grating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Floor Grill Heavy Duty Fiberglass Grate Yellow Color FRP GratingNegotiableMOQ: 1 -
High Strength Composite Fiberglass Reinforced Anti Slip FRP Plastic Pultruded FRP GratingNegotiableMOQ: 1
-
GRP Floor Grating Walkway Plastic Frp Grate Tree Pool Protection Grid Car Wash Shop Drainage Channel Fiberglass GratingNegotiableMOQ: 1
-
38x38x38mm FRP GRP Grating High Strength Glass Fiber Grating PriceNegotiableMOQ: 1
-
Spherical Aviation FRP Guiding Ball High Strength Fiberglass Composite Plastic Aircraft Warning SphereNegotiableMOQ: 1
Product Description
Heavy Duty Grate FRP/GRP plastic flooring
Fire Resistant Fiberglass Pultruded Grating
Fiberglass Pultruded Grating is designed for use in applications that require maximum strength as well as superior corrosion resistance. Manufactured with the highest proportion of fiberglass strands to resin,It is an ideal choice for applications where wide support spans are required. Long useful life spans greater than 40 years is not uncommon.
Pultruded grating is available in two standard resin systems each providing differing levels of corrosion protection. Both resin systems meet Class 1 Flame Spread Rating per ASTM E-84 test standards.
* ISO Resin: premium grade Isophthalic Polyester Resin System that provides excellent corrosion protection.
* Vinyl Resin: Vinyl Ester Resin System provides the highest level of corrosion protection.
This non-conductive, maintenance-free molding is lightweight and easy to install. The standard grit-top walking surface provides sure footing. And the protective synthetic veil over the exterior surface allows the grating to reliably withstand UV exposure. It is available in many sizes and can be easily custom-fabricated.
FRP Grating advantages
1. Corrosion resistant
2. High strength & light weight
3. Long service life
4. Fire retardant
5. Impact resistant
6. Nonconductive and thermal insulation
7. Non-magnetic electromagnetic transparency
8. Dimensional stability, Bright color
9. Low-maintenance
Pultruded frp grating pictures show
1. Corrosion resistant
2. High strength & light weight
3. Long service life
4. Fire retardant
5. Impact resistant
6. Nonconductive and thermal insulation
7. Non-magnetic electromagnetic transparency
8. Dimensional stability, Bright color
9. Low-maintenance
Pultruded frp grating pictures show
Specification
Type |
Height(mm) |
Top edge width (mm) |
Space between (mm) |
Clearance width(mm) |
Open area(%) |
Estimated weight kg/m2 |
I-4010 |
25 |
15 |
25 |
10 |
40 |
17.8 |
I-5010 |
25 |
15 |
30 |
15 |
50 |
15.1 |
I-6010A |
25 |
15 |
38 |
23 |
60 |
12.2 |
I-6010B |
25 |
8 |
19.8 |
11.8 |
60 |
13.7 |
I-4015 |
38 |
15 |
25 |
10 |
40 |
22 |
I-5015 |
38 |
15 |
30 |
15 |
50 |
19.1 |
I-6015 |
38 |
15 |
38 |
23 |
60 |
16.2 |
I-4012 |
30 |
15 |
25 |
10 |
40 |
19.1 |
I-5012 |
30 |
15 |
30 |
15 |
50 |
16.1 |
I-6012 |
30 |
15 |
38 |
23 |
60 |
13.1 |
I-40125 |
32 |
15 |
25 |
10 |
40 |
28.5 |
I-50125 |
32 |
15 |
30 |
15 |
50 |
24.2 |
I-60125 |
32 |
15 |
38 |
23 |
60 |
20.1 |
I-4020 |
50 |
15 |
25 |
10 |
40 |
28.5 |
I-5020 |
50 |
15 |
30 |
15 |
50 |
24.2 |
I-6020 |
50 |
15 |
38 |
23 |
60 |
20.1 |

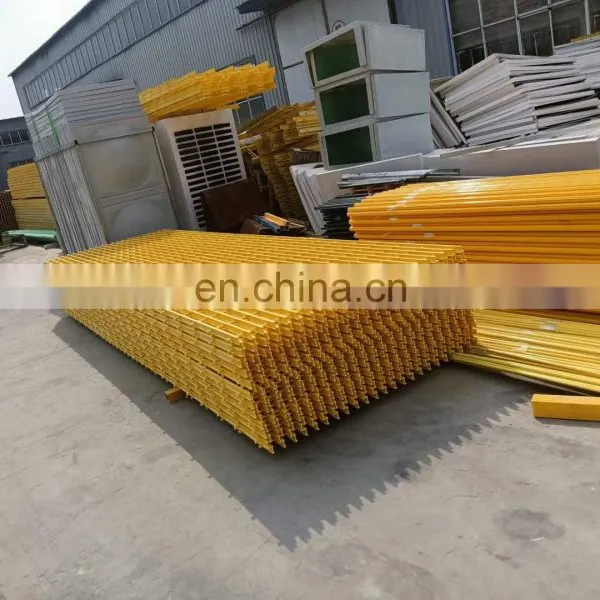

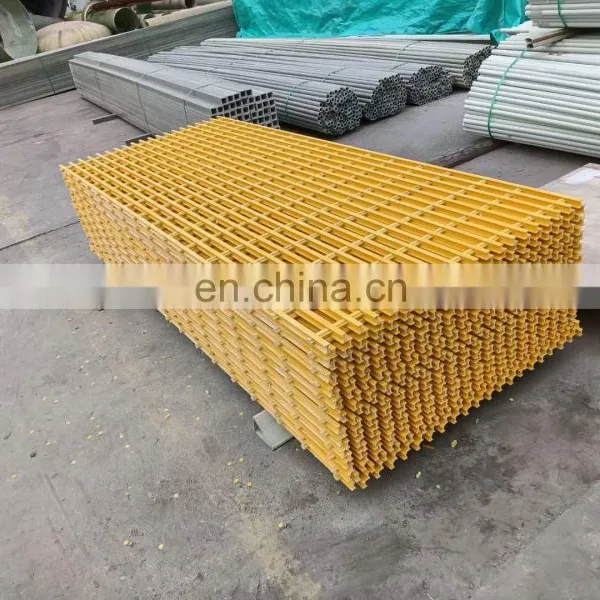

Details Images
Fiberglass grating manufacturer FRP/GRP composite pultruded and molded gratings show
After-sales service
1.Provide install video if necessary and other install documents
2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
Packing&Shipping
Related Products
1, high quanlity and best price Our company is Professional manufacturer ,
cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on.
2, Accept customized,
Our company accept customized, if our catalog don't the size you need, is doesn't matter,
we can according your required to produce it.
3, Best service
Answering emails or solving questions timely. Delivery and update information on
time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service.
Give us your PO, let us cooperation for a long time.
cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on.
2, Accept customized,
Our company accept customized, if our catalog don't the size you need, is doesn't matter,
we can according your required to produce it.
3, Best service
Answering emails or solving questions timely. Delivery and update information on
time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service.
Give us your PO, let us cooperation for a long time.
