Yellow Orange Gray Black Square Mesh Size FRP Grid 15mm to 63mm Thick Frp Grp Fiberglass Grating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Light Weight and Corrosion Resistant FRP Molded Grating Fiberglass Grating for PlatformNegotiableMOQ: 1 -
Fiberglass Frp Car Wash Trench Drain Grating Frp Grating Frp WalkwayNegotiableMOQ: 1
-
Factory Supply Yellow High Strength Mini Mesh 19*19*15mm 1220*3660mm Customized FRP GratingNegotiableMOQ: 1
-
FRP Grille High Strength-Weight Ratio 50*50*50mm 38*38*38mm Platform Fiberglass FRP GratingNegotiableMOQ: 1
-
Solar Walkway FRP Moded Grating Fiberglass Rooftop Walkway for Solar PanelNegotiableMOQ: 1
Product Description

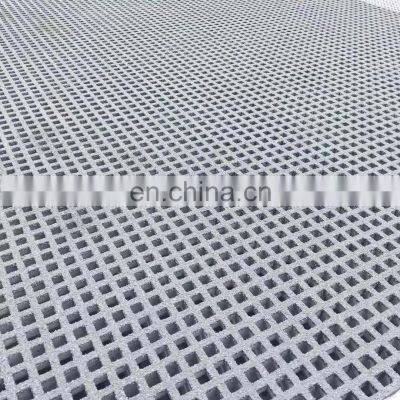

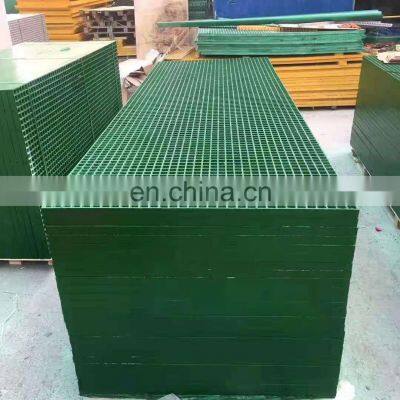

yellow orange gray black square mesh size FRP grid 15mm to 63mm thick frp grp fiberglass grating
FRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold.
Fiberglass grating can be molded into large sheets for later fabrication into smaller, custom shapes. Mesh grating is made by laying fiber reinforcing materials in grid work shaped mold and bonding them with polyester or vinyl ester resins. Other resins are available for special applications. The molded product is ground to the desired thickness and flatness. Slip resistant coatings are applied to the surface at this time, if required.
About our FRP molded grating:
Resin: Ortho Polyester (GP), Iso polyester (ISO) , Vinyl ester (VE) , Phenolic
Thickness: any between 12.6mm to 63mm (such as 12.6mm, 15mm, 20mm, 25mm, 30mm, 33mm, 38mm, 40mm, 50mm, 63mm)
Mesh Size: 1.5”x1.5”, 2.0”x2.0”, 1.0X4.0” 1.0X6.0”, 1.5”x6.0”, mini mesh 20x20(up) / 40x40mm (down), 19x19 / 38x38mm,
12.6x12.6x12.6/38.1x38.1mm
Panel size: 3’x8’, 3’x10’, 3’x12’, 4’x8’,4x10’, 4’x12, 5’x13’, can cut into any size less than the above panel size.
Surface: Grit top, concave, smooth, covered
Color: Green, yellow, grey, red, black, or any option to you.
Chemical Resistance: VE > ISO > GP
Resin: Ortho Polyester (GP), Iso polyester (ISO) , Vinyl ester (VE) , Phenolic
Thickness: any between 12.6mm to 63mm (such as 12.6mm, 15mm, 20mm, 25mm, 30mm, 33mm, 38mm, 40mm, 50mm, 63mm)
Mesh Size: 1.5”x1.5”, 2.0”x2.0”, 1.0X4.0” 1.0X6.0”, 1.5”x6.0”, mini mesh 20x20(up) / 40x40mm (down), 19x19 / 38x38mm,
12.6x12.6x12.6/38.1x38.1mm
Panel size: 3’x8’, 3’x10’, 3’x12’, 4’x8’,4x10’, 4’x12, 5’x13’, can cut into any size less than the above panel size.
Surface: Grit top, concave, smooth, covered
Color: Green, yellow, grey, red, black, or any option to you.
Chemical Resistance: VE > ISO > GP
Install clips: Type M, L ,C , J from stainless steel 304, 316 or 316L
Smooth Surface – Great for Bar Screens at Wastewater Treatment plants or Architectural applications
Grit Surface – Excellent slip resistant surface
FRP grating with top cover
Higher loading weight
38mm height FRP grating
25mm height FRP grating
whole panel size: 1220mm*3660mm
Customized sheet size, such as 1m*2m, 1.22m*2m, 1m*3m or other required size.
FRP grating clips
We can supply different types clip, such L type, M type and S type, etc.
FRP grating feature:
Anti-Fire | Anti-Corrosion | Chemical Resistant | Anti-Slippery | Light Weight | High Loading Capacity | Long Service Life
Non-Conductive or Magnetic | Easy Installation | Cut to Size division available with quick turn-around time.
Some standard sizes are as following:
Anti-Fire | Anti-Corrosion | Chemical Resistant | Anti-Slippery | Light Weight | High Loading Capacity | Long Service Life
Non-Conductive or Magnetic | Easy Installation | Cut to Size division available with quick turn-around time.
Some standard sizes are as following:
Specification |
Bar Size (Top/Below)
|
Panel Size |
Open area |
Weight |
Mesh size 38mm*38mm, 25mm thickness |
6.5/5.0mm |
1.22*3.66m |
68% |
12.5kgs/m2 |
Mesh size 38mm*38mm, 30mm thickness |
6.5/5.0mm |
1.22*3.66m |
68% |
14.75kgs/m2 |
Mesh size 38mm*38mm, 38mm thickness |
7.0/5.0mm |
1.22*3.66m |
68% |
19.5kgs/m2 |
Mesh size 50mm*50mm, 50mm thickness |
8.0/6.0mm |
1.22*3.66m |
78% |
23.5kgs/m2 |
Mesh size 19*19/38*38mm, 50mm thickness |
7.0/5.0mm |
1.22*3.66m |
40% |
23.5kgs/m2 |
yellow orange gray black square mesh size FRP grid 15mm to 63mm thick frp grp fiberglass grating
FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.

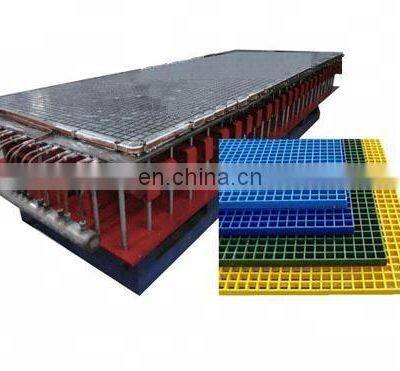

Production process

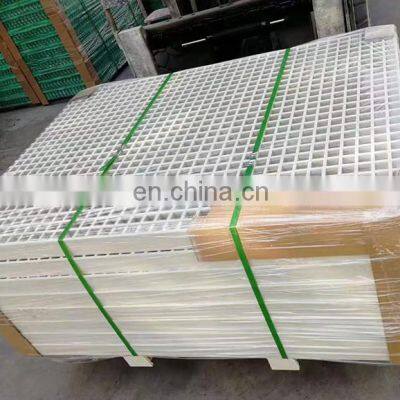

Product packaging
Fibreglass grating frp molded grating
Packing ： 1 Protected by stretch film;
2. Fasten by packing banding and packed on pallet.
3. Grating corners are protected by FRP angle or thick papercard.
Delivery : 1. Stock grating: 3-5 working days.
2.. Manufacturing: 1-2 weeks, or depends on the order quantity.
Welcome your inquiry about FRP grating anytime.
FAQ
Q: Are you a trading company or a manufacturing factory?
A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 2010.We have FRP products of high quality and various kinds.
Q: How can you guarantee your product quality?
A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high quality supplier.
Q: I am interested in your products, could I get sample for free?
A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offering your shipping account.
