FRP Pultrusion T-bar as Grating Frp Pultrusion Profiles Materials Grating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Strength Corrosion Resistant FRP Composite Sheet Pile Manufactured Fiberglass Sheet PillingNegotiableMOQ: 1 -
Frp Pultrusion Fiberglass Reinforced Plastic Pultruded ProfilesNegotiableMOQ: 1
-
China Factory Special Shape Customized Grp Frp Pultrud ProfileNegotiableMOQ: 1
-
Special Fiberglass Structure Profiles Factory Customized FRP Pultruded ProfilesNegotiableMOQ: 1
-
FRP Pool Overflow Grating Fiberglass Trench GratingNegotiableMOQ: 1
Product Description
FRP Pultrusion T-bar as Grating frp pultrusion profiles materials grating
FRP pultrusion grating: efficient and cost effective solution for flooring, structural integrity, without metal's corrosion.
The FRP Gratings offered by us are manufactured by assembly of pultruded I-Beam & pultruded cross roads. In the FRP Gratings, the distance between I-Beam & cross rods depend upon various load conditions. These FRP Gratings offered by us are acknowledged for offering advanced solutions against critical problem of corrosion in industrial environment.
The FRP Gratings offered by us are manufactured by assembly of pultruded I-Beam & pultruded cross roads. In the FRP Gratings, the distance between I-Beam & cross rods depend upon various load conditions. These FRP Gratings offered by us are acknowledged for offering advanced solutions against critical problem of corrosion in industrial environment.
Features:
* Corrosion resistance
* Maintenance free
* Light weighted
* Anti skid
* Non magnetic
* Chemical resistant
* No thermal conductivity
* Dimensional stability
* Durable
Application :
* Chemical Plants
* Refineries
* Power Plants
* Marine
* Off shore installations
* Effluent Treatment Plants
* Corrosion resistance
* Maintenance free
* Light weighted
* Anti skid
* Non magnetic
* Chemical resistant
* No thermal conductivity
* Dimensional stability
* Durable
Application :
* Chemical Plants
* Refineries
* Power Plants
* Marine
* Off shore installations
* Effluent Treatment Plants
Pultruded FRP Grates offer higher strength characteristics and are ideally suited for heavier loads across longer spans than molded grating. The composite matrix of pultruded grating utilizes a higher fiberglass content to resin ratio resulting in a stiffer grate but with less corrosion resistance. Pultruded grating is a unidirectional structure and being an assembled product, allows for larger panel sizes for better utilization.
Load Bars: Pultruded grates are constructed of a series of independent load bars with either an "I" or "T" profile. "I" bars are typically used for industrial applications having a higher load capability
"T" bars are typically used for pedestrian applications having a wider walking surface.
Open area between the load bars can be as high as 60% or as small as 12% depending on your application and loading.
Load Bars: Pultruded grates are constructed of a series of independent load bars with either an "I" or "T" profile. "I" bars are typically used for industrial applications having a higher load capability
"T" bars are typically used for pedestrian applications having a wider walking surface.
Open area between the load bars can be as high as 60% or as small as 12% depending on your application and loading.
Resin Systems: available in two resin formulations both containing a fire retardant that offers an ASTM-E84 flame spread rating of 25 or less. ISOFR Isophthalic Polyester Fire Retardant Yellow / Dark Gray used for moderately corrosive environments VEFR Vinyl Ester Fire Retardant Yellow / Dark Gray used for highly corrosive environments
Specification
Type |
Height(mm) |
Top edge width (mm) |
Space between (mm) |
Clearance width(mm) |
Open area(%) |
Estimated weight kg/m2 |
I-4010 |
25 |
15 |
25 |
10 |
40 |
17.8 |
I-5010 |
25 |
15 |
30 |
15 |
50 |
15.1 |
I-6010A |
25 |
15 |
38 |
23 |
60 |
12.2 |
I-6010B |
25 |
8 |
19.8 |
11.8 |
60 |
13.7 |
I-4015 |
38 |
15 |
25 |
10 |
40 |
22 |
I-5015 |
38 |
15 |
30 |
15 |
50 |
19.1 |
I-6015 |
38 |
15 |
38 |
23 |
60 |
16.2 |
I-4012 |
30 |
15 |
25 |
10 |
40 |
19.1 |
I-5012 |
30 |
15 |
30 |
15 |
50 |
16.1 |
I-6012 |
30 |
15 |
38 |
23 |
60 |
13.1 |
I-40125 |
32 |
15 |
25 |
10 |
40 |
28.5 |
I-50125 |
32 |
15 |
30 |
15 |
50 |
24.2 |
I-60125 |
32 |
15 |
38 |
23 |
60 |
20.1 |
I-4020 |
50 |
15 |
25 |
10 |
40 |
28.5 |
I-5020 |
50 |
15 |
30 |
15 |
50 |
24.2 |
I-6020 |
50 |
15 |
38 |
23 |
60 |
20.1 |
Details Images

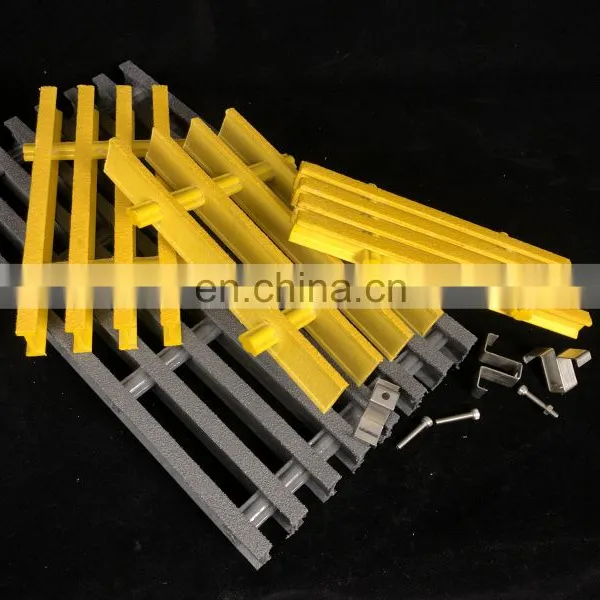

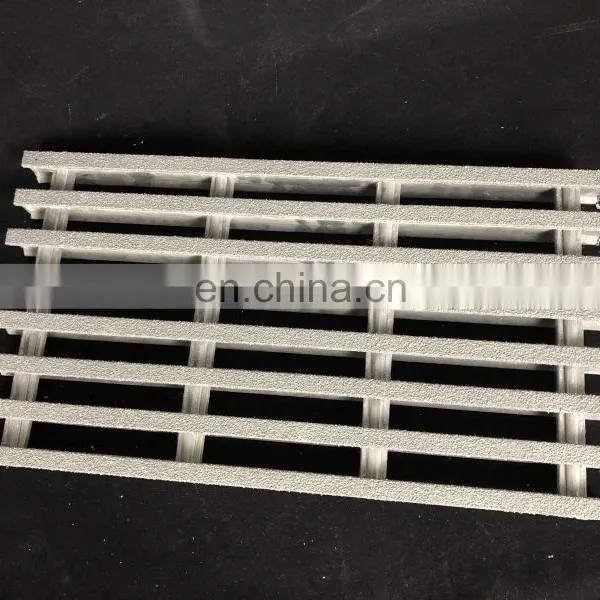

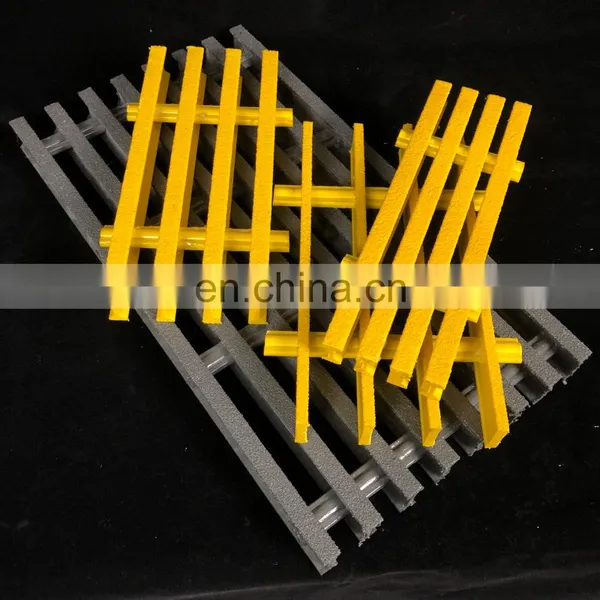

Fiberglass grating manufacturer FRP/GRP composite pultruded and molded gratings show
After-sales service
1.Provide install video if necessary and other install documents
2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
2.Quality guarantee is 1 year.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
Packing&Shipping
Related Products
1, high quanlity and best price Our company is Professional manufacturer ,
cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on.
2, Accept customized,
Our company accept customized, if our catalog don't the size you need, is doesn't matter,
we can according your required to produce it.
3, Best service
Answering emails or solving questions timely. Delivery and update information on
time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service.
Give us your PO, let us cooperation for a long time.
cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on.
2, Accept customized,
Our company accept customized, if our catalog don't the size you need, is doesn't matter,
we can according your required to produce it.
3, Best service
Answering emails or solving questions timely. Delivery and update information on
time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service.
Give us your PO, let us cooperation for a long time.
