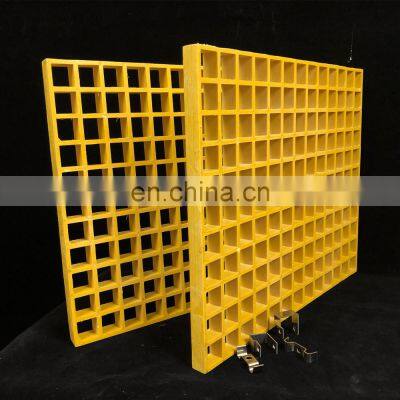

High Strength Frp Grating for Flooring Fiberglass Drain Grating Cover
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Resist Liquid Corrosion High Quality Fiberglass Floor Grating FRP Grating Trench CoversNegotiableMOQ: 1 -
Corrosion Resistant 38*38mm Fiberglass FRP Grating Fiberglass Molded Grating WalkwayNegotiableMOQ: 1
-
Fiberglass Pultrusion Structural Profile FRP Rectangular TubeNegotiableMOQ: 1
-
FRP Pultrusion T-bar as Grating Frp Pultrusion Profiles Materials GratingNegotiableMOQ: 1
-
FRP Pultrusion T-bar as Grating Frp Pultrusion Profiles Materials GratingNegotiableMOQ: 1
Product Description

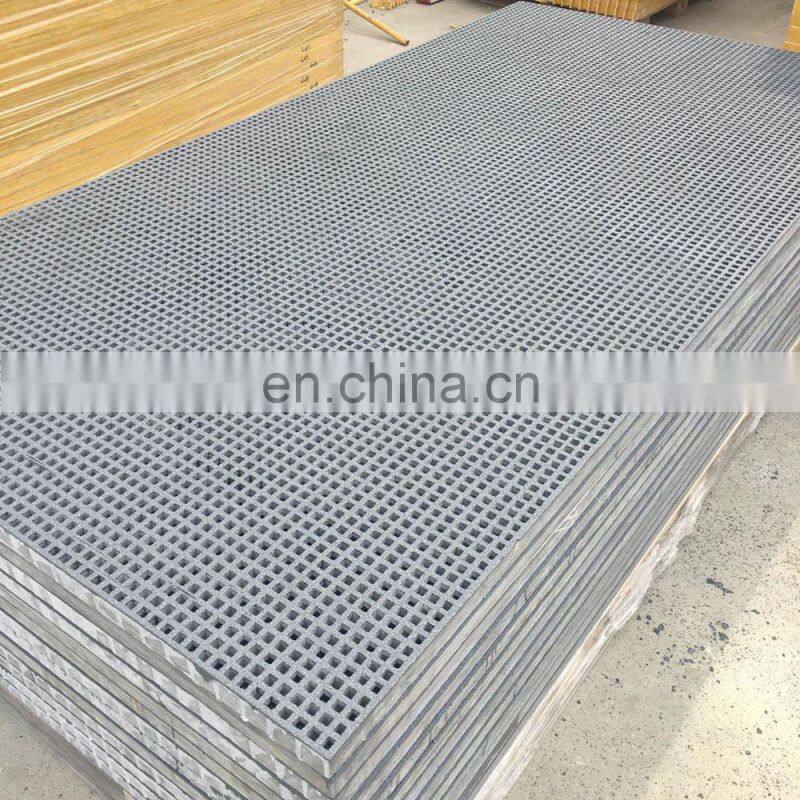

high strength frp grating for flooring fiberglass drain grating cover
Fiberglass reinforced plastic grating (also known as FRP grating, glass reinforced plastic grating or fiberglass grating) is a
composite material manufactured by combining a matrix of resin and fiberglass. Fiberglass grating does not corrode like steel grating and is therefore used in corrosive environments to reduce maintenance costs.
composite material manufactured by combining a matrix of resin and fiberglass. Fiberglass grating does not corrode like steel grating and is therefore used in corrosive environments to reduce maintenance costs.
Material advantages:
Strong bearing capacity | Stretch-proof | High-temperature resistance | Anti-corrosion | Non-flammable | Good insulation |
No rust | Non-slip | Mildewproof | Anti-shrinkage | Easy to cut | Environmental protection |

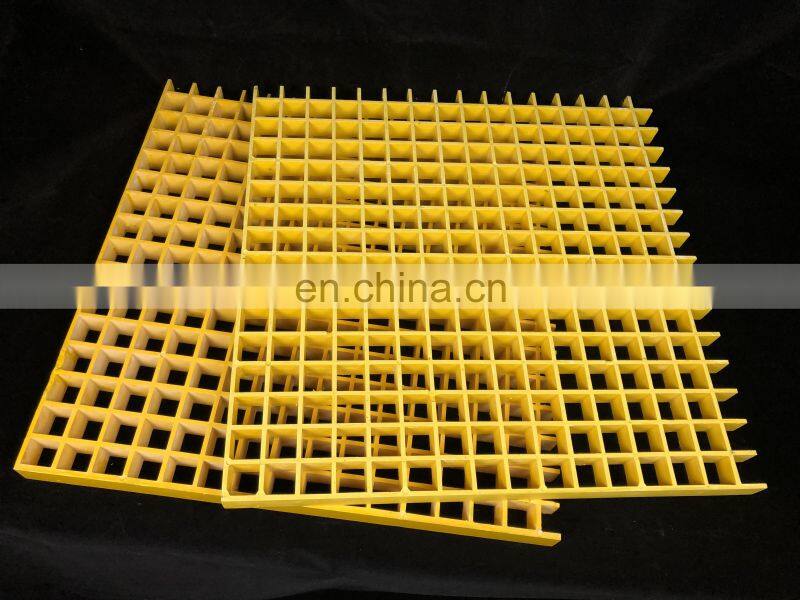

Details Images

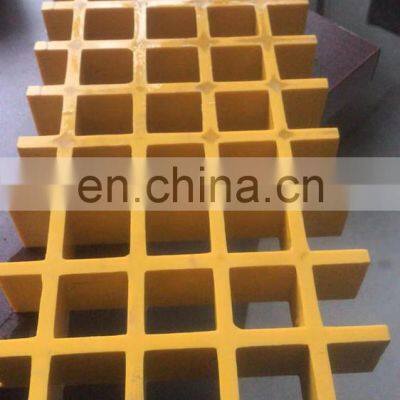

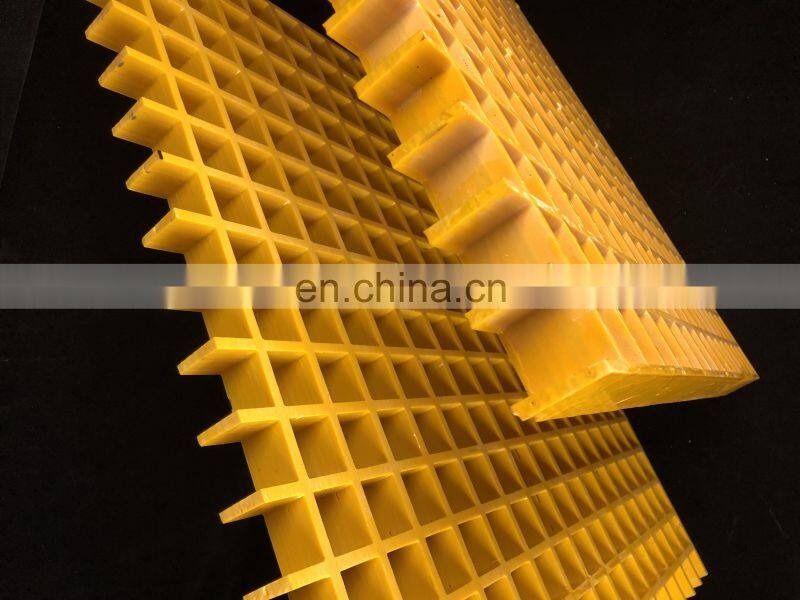

Molded FRP grating is composed of alternating directional layers of continuous glass fiber for strength, with resin to consolidate the fibers and provide the shape and corrosion-resistance. Molded grating has very high impact tolerance, as well as the highest chemical resistance of any fiberglass grating. It can be made slip-resistant by adding grit to the surface.
FRP grating sheet Features
---Strong, Lightweight and Corrosion-Resistant
Molded FRP Grating has the strength of steel, but it won’t corrode like steel can.
---Safer Walking Surface for Trench Covers and Fiberglass Walkways
A coarse, gritted epoxy coating enhances traction.
---Support and Stability
Molded Fiberglass Grating Panels are equally strong in both directions
---Easy Fabrication
FRP Flooring Panels are lightweight, easy to transport, and can be cut and fabricated using standard hand tools.
---Extended Life
The coated resin surface increases resistance to chemical corrosion and continuous UV exposure.
Specification

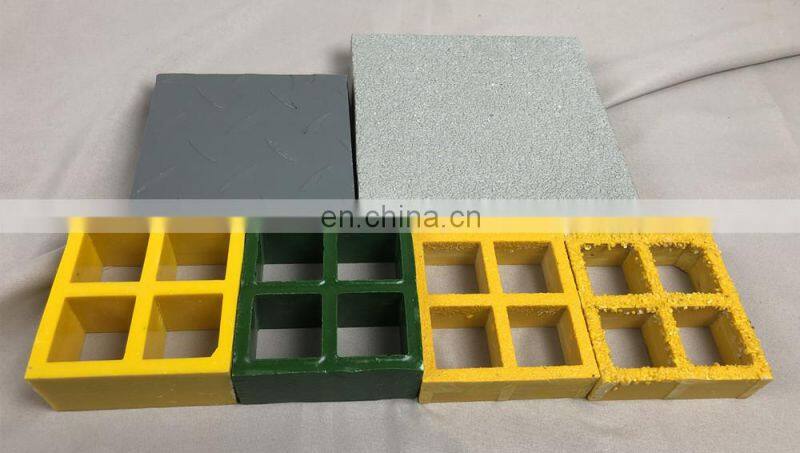

Fiberglass Grating has many sizes for you to choose.
Thickness mm | Mesh Size mm | Panel Size mm | Open Area % | Unit Weight kg |
40 | 40*40 | 1007*3007 | 64 | 60 |
25 | 38*38 | 1220*3660 | 69 | 52 |
38 | 38*38 | 1220*3660 | 69 | 85 |
50 | 50*50 | 1220*3660 | 72 | 100 |
30 | 38*38 | 1000*040 | 69 | 75 |
38 | 25*152 | 1145*2900 | 60 | 76 |
30 | 25*25 | 1220*3660 | 64 | 84 |
50*50 | ||||
38 | 19*19 | 1007*4007 | 72 | 92 |
38*38 |
Production steps
1. Stirring raw materials
Resin, fiberglass fiber yarn, calcium powder filling, color paste, reagents, etc. are arranged in proportion, stirring for 20 minutes.
2 . Draw yarn
Lay the alkali-free yarn layer by layer to improve the strength of the FRP grating.
3 . Compression mold
The stirred raw materials are poured into the mold and compacted mechanically or manually.
4 . Heat curing
After the grating is heated for 20 minutes, the raw materials and yarn are fused together.
5 . Cooling demoulding, mold lifting
After the above process is completed, cooling for 10 minutes demolding, mold lifting, semi-finished grating finished.
6 . Grinding, painting and washing
The FRP grating is polished and washed with a layer of varnish or water.
Packing

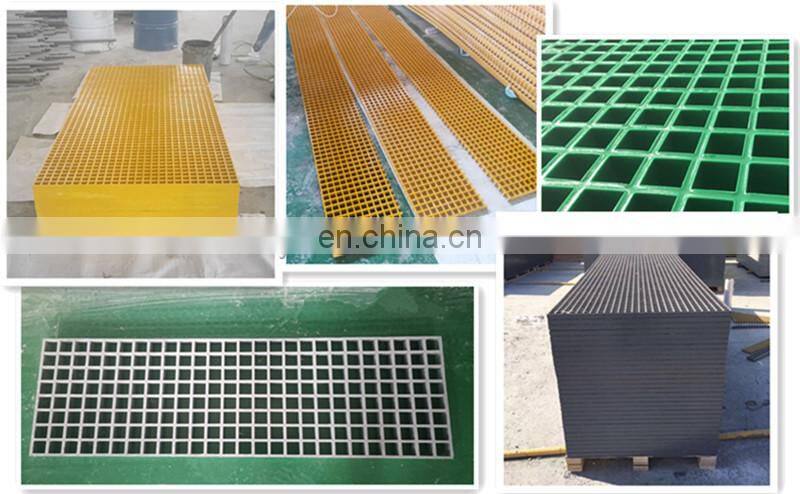

Construction | Guardrails, stairs, ladders, wall gratings, platforms, etc. |
Drainage treatment | Drainage ditch, drain grating, platform, structure, etc. |
Civil Engineering | Floors, sidewalks, bridges, tree protection, car washes, parking lots, Protect grating, etc. |
Chemical Industry | Work platform etc. |
Food processing and aquaculture | The platform, engineering guardrail, etc. |
Ocean industry | Platforms, fencing, sidewalks, etc. |

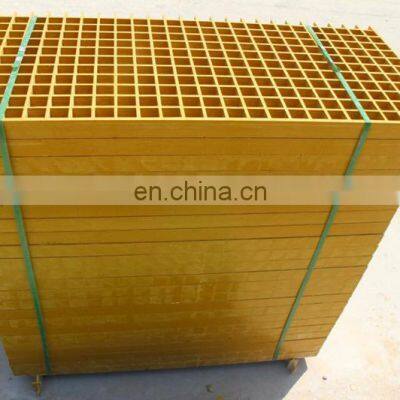

Product packaging
Fiberglass Grating is usually packed by the pallet.
To protect the FRP grating well, we also do Corner guard with film wrap.
FAQ
Q: How can you guarantee your product quality?
A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high quality supplier.
Q: Are you a trading company or a manufacturing factory?
A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 2010.We have FRP products of high quality and various kinds.
Q: I am interested in your products, could I get sample for free?
A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offering your shipping account.
Q: Can you do the design for us?
A: Yes. With experienced teams in fiberglass product design and manufacturing, we can provide customized
shape,dimension, colors service.
Our factory can produce hot sale fire resistant reinforce frp grating sheet according to customer requirement, please contact us freely for a quotation.
