Home > Products > Cables > HD CCTV Camera Cable Double Shield SYWV 75-7-4P RG6 RG6/U Coaxial Cable For TV CATV Satellite
HD CCTV Camera Cable Double Shield SYWV 75-7-4P RG6 RG6/U Coaxial Cable For TV CATV Satellite
- T/T Credit Card
You May Like
-
Double Shielded PVC Jacket CATV CCTV Foam PE Coax Cable RG6 RG6U Coaxcial Cable
-
BNC Male to BNC Male Extension Coax Cable for RG59 RF Coaxial Antenna
-
Custom DC Extension Cable Male to Female 5521 5.5*2.1mm DC Power Cable
-
Factory Oem Spring Type Displayport to Displayport Cable
-
Bare Copper Coax RG 6 75Ohm Coaxial Rg6 for TV/CATV Antenna System
-
OEM Brand Factory Network Cat5e UTP Lan Cable 4p 24AWG 0.5mm CCA Cat 5e Ethernet 2 4 8 Pair Pairs 1000ft 305m
Product Description
YUXUN CATV CCTV Price RG 6 Double /Triple /Quad Shield RG6 Coaxial Cable
|

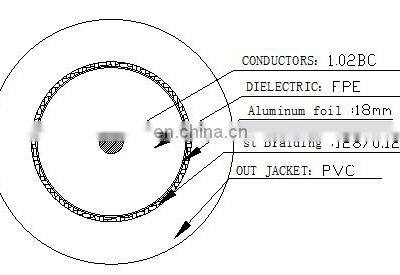

RG6 Coaxial Cable |
||
|
|
||
|
CONDUCTORS |
COND.MATERIAL |
BC |
|
CONSTRUCTION |
1.02±0.0030 |
|
|
DIELECTRIC |
DIAMETER |
4.57±0.15mm |
|
MATERIAL |
FPE |
|
|
SHIELDED |
MATERIAL |
AL-FOIL |
|
SHIELDED |
BRAIDING MATERIAL |
AM |
|
SHIELDED |
BRAID CONSTRUCTION |
0.12*128±0.005mm |
|
OUT JACKET |
DIAMETER |
6.9±0.2mm |
|
MATERIAL |
PVC |
|
| ELECTRICAL CHARACTERISTICS | ||
|
Impedance |
75±3 Ohm |
|
|
Capacitance PF/m |
53±5 |
|
|
ATTENUATION |
50MHz |
4.90 |
|
100MHz |
6.90 |
|
|
200MHz |
9.70 |
|
|
500MHz |
15.10 |
|
|
800MHz |
19.20 |
|
|
1000MHz |
21.50 |
|
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usually,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you interesting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
