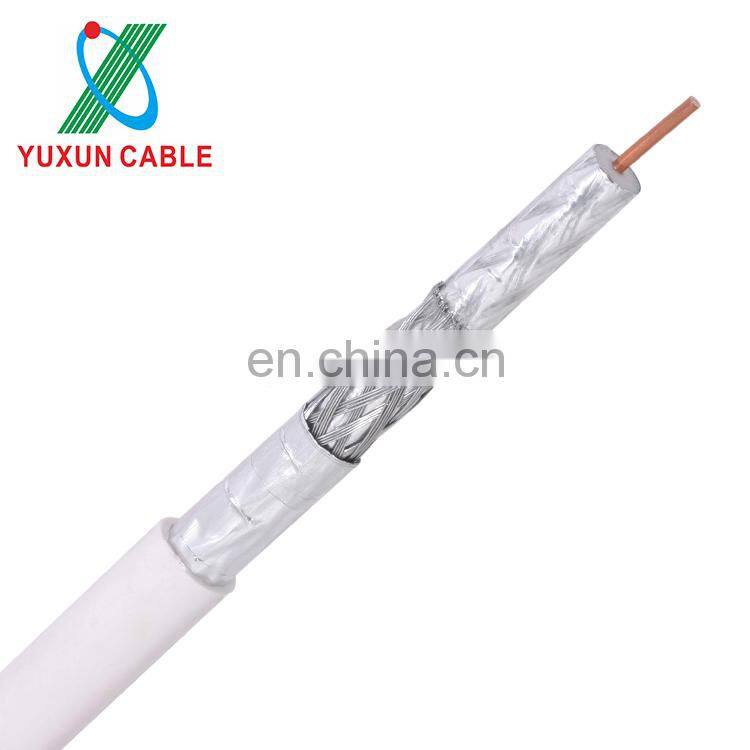

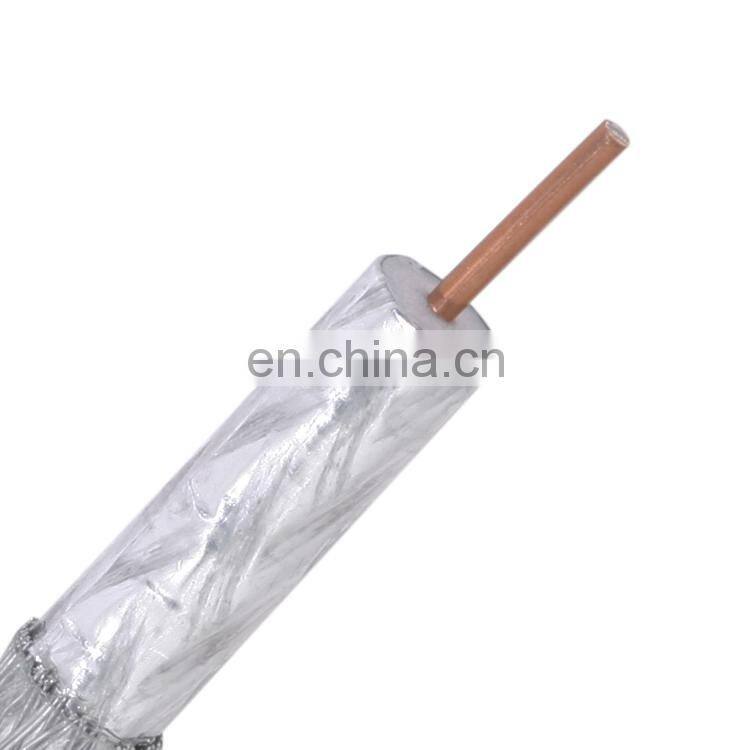

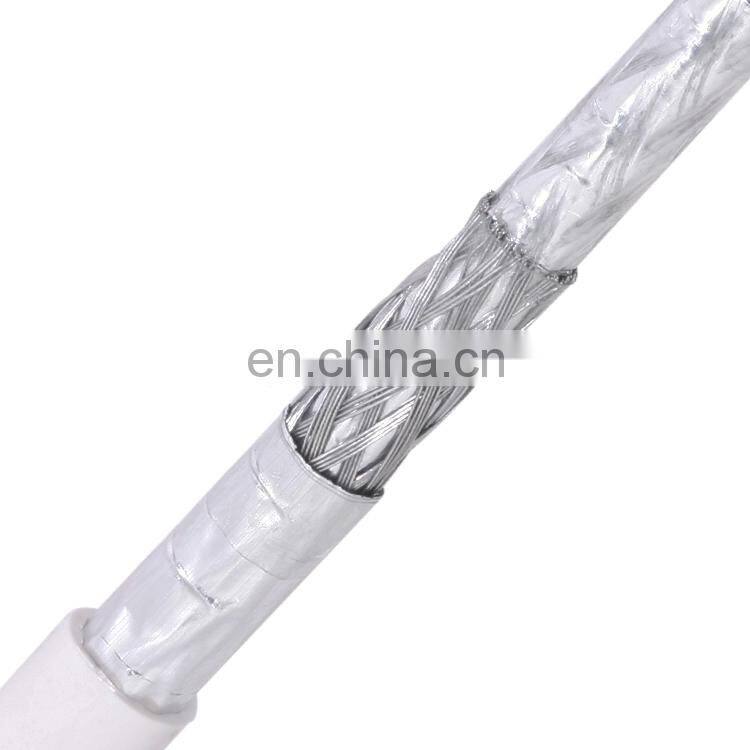

Help CenterRG6 Triple Shielded Coaxial Cable for Audio/Video, Radio Frequency, and CATV/MATV Transmissions
Related Products
-
Factory Communication Cables Bare Copper SPE CCTV RG59 CableNegotiableMOQ: 1 -
0.584 /0.81 Bare Copper/CCS High Quality RG59+2C CCTV CableNegotiableMOQ: 1
-
HD CCTV Camera Cable Double Shield SYWV 75-7-4P RG6 RG6/U Coaxial Cable For TV CATV SatelliteNegotiableMOQ: 1
-
Double Shielded PVC Jacket CATV CCTV Foam PE Coax Cable RG6 RG6U Coaxcial CableNegotiableMOQ: 1
-
BNC Male to BNC Male Extension Coax Cable for RG59 RF Coaxial AntennaNegotiableMOQ: 1
China Supplier YUXUN 75Ohm Coaxial Cable Tri-shield Coax RJ6 Cable
|
RG6 Tri-shield coaxial Cable |
||
|
|
||
|
Physical Dimensions |
||
|
CONDUCTOR |
MATERIAL |
CCS |
|
CONSTRUCTION |
1.02±0.03mm |
|
|
INSULATION |
MATERIAL |
FPE |
|
DIAMETER |
4.57±0.2mm |
|
|
SHIELD |
MATERIAL |
Double AL Foil |
|
WEAVE |
MATERIAL |
AM |
|
CONSTRUCTION |
0.16*64 |
|
|
SHIELD |
MATERIAL |
Double AL Foil |
|
JACKET |
MATERIAL |
PVC |
|
DIAMETER |
7.06±0.2mm |
|
|
Electrical Properties |
||
|
IMPEDANCE |
75±3 Ω |
|
|
ATTENUATION (20℃, ≤dB/100m) |
5MHz |
<3.5 |
|
55MHz |
<5.25 |
|
|
211MHz |
<10.0 |
|
|
250MHz |
<10.82 |
|
|
270MHz |
<11.04 |
|
|
300MHz |
<11.64 |
|
|
330MHz |
<12.26 |
|
|
350MHz |
<12.63 |
|
|
400MHz |
<13.61 |
|
|
450MHz |
<14.43 |
|
|
500MHz |
<15.29 |
|
|
550MHz |
<16.08 |
|
|
600MHz |
<16.73 |
|
|
750MHz |
<18.54 |
|
|
870MHz |
<20.04 |
|
|
1000MHz |
<21.49 |
|
|
1450MHz |
<26.94 |
|
|
1800MHz |
<30.24 |
|
|
2000MHz |
<32.09 |
|
|
2200MHz |
<32.15 |
|
|
2300MHz |
<32.87 |
|
|
2500MHz |
<34.25 |
|
|
2700MHz |
<35.60 |
|
|
3000MHz |
<37.53 |
|
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
