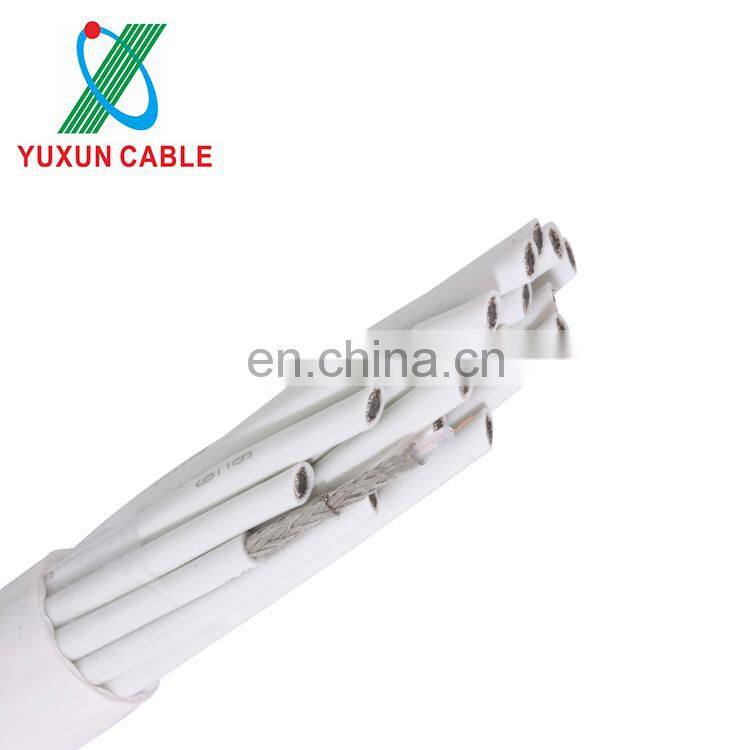

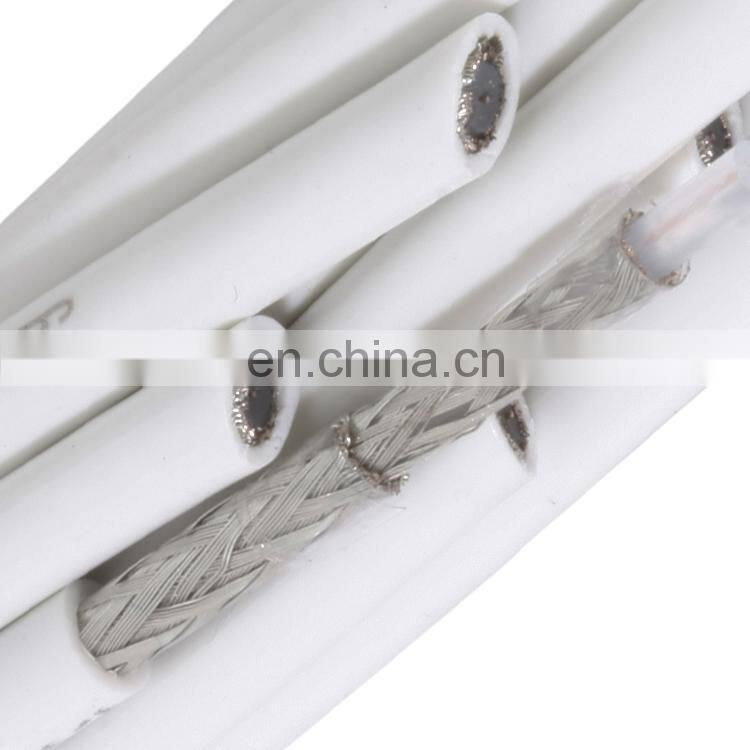

YUXUN Telecom Multi-Core Coaxial Cable BT3002
| |
|||
|

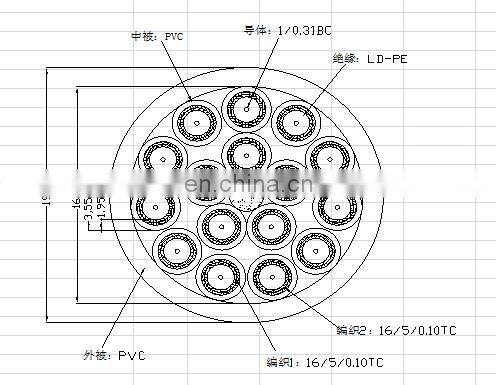

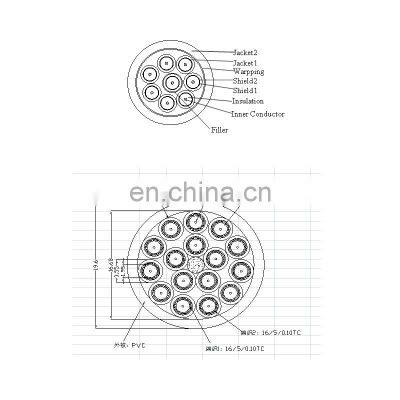

Specifications: |
|||
|
INNER |
Material |
Bare Copper |
|
|
Diameter |
0.31mm±0.01 |
||
|
INSULATION |
Material |
LD-PE |
|
|
Diameter |
1.95mm± 0.1 |
||
|
OUTER |
Material1 |
Tinned copper |
|
|
Diameter1 |
80*0.10mm |
||
|
Pitch1 |
25mm,85% Coverage, |
||
|
Material2 |
Tinned copper |
||
|
Diameter2 |
96*0.10mm |
||
|
Pitch2 |
25mm,86% Coverage, |
||
|
Filler |
Material1 |
PP Wire,0.2*20mm |
|
|
Warpping |
Material1 |
Polyester(Pet)Tape |
|
|
Diameter1 |
0.03*50mm |
||
|
OVERALL |
Material1 |
Grey PVC |
|
|
Diameter1 |
3.55±0.20mm |
||
|
OVERALL |
Material2 |
Grey PVC |
|
|
Diameter2 |
19.0mm |
||
|
CHARACTERISTIC |
75ohms±3 |
||
|
OPERATING TEMPERATURE RANGE |
70 Deg C |
||
|
CAPACITANCE RATIO |
66(pf/m) |
||
|
ATTENUATION |
2.17 [ dB/100m@1MHZ] |
||
|
4.38 [ dB/100m@4MHZ] |
|||
|
9.11 [ dB/100m@17MHZ] |
|||
|
18.69 [ dB/100m@69MHZ] |
|||
|
19.92[ dB/100m@78MHZ] |
|||
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
