Product Description

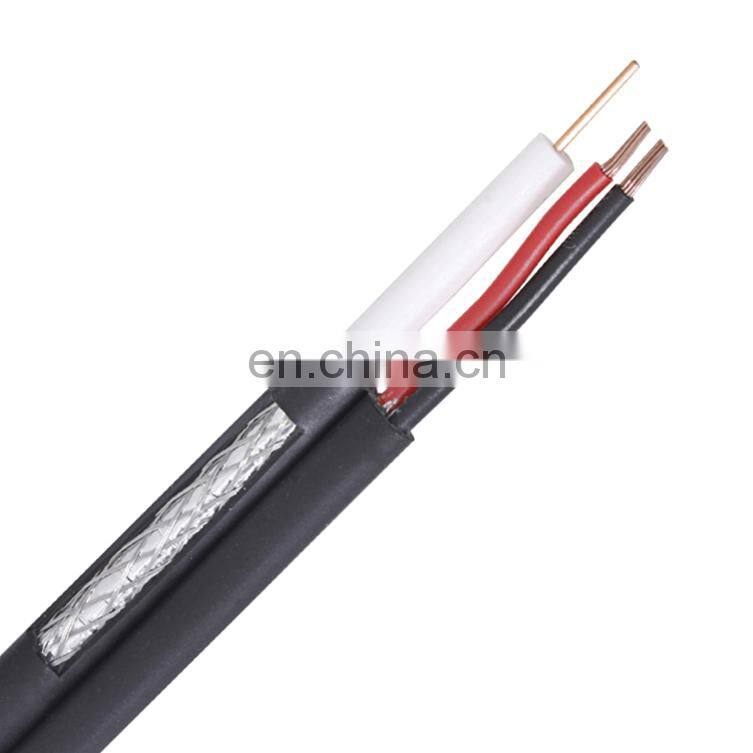

150 meter long transmission HD camera hd sdi cable
|
|
|||
|

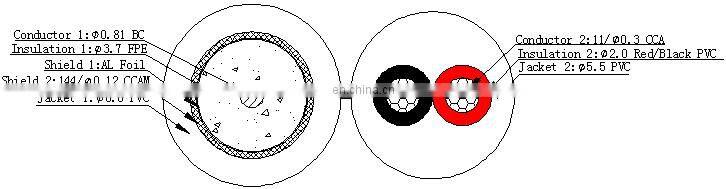

Physical Dimensions |
|||
|
RG59 |
Conductor 1 |
MATERIAL |
BC |
|
CONSTRUCTION |
1/0.81±0.008mm |
||
|
Insulation 1 |
MATERIAL |
Foamed PE |
|
|
DIAMETER |
3.7±0.15mm |
||
|
Shield 1 |
MATERIAL |
AL |
|
|
CONSTRUCTION (Foil) |
15mm |
||
|
Shield 2 |
MATERIAL |
CCAM |
|
|
CONSTRUCTION (Braiding) |
144/0.12±0.003mm |
||
|
Jacket 1 |
Diameter |
6.0±0.2mm PVC |
|
|
|
Conductor 2 |
Material |
11/0.3±0.04mm CCA |
|
Insulation 2 |
Diameter |
2.0±0.05mm Red/Black PVC |
|
|
Jacket 2 |
Diameter |
5.5±0.2mm PVC |
|
|
Out Jacket |
Diameter |
6.0±5.5mm PVC White |
|
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!
