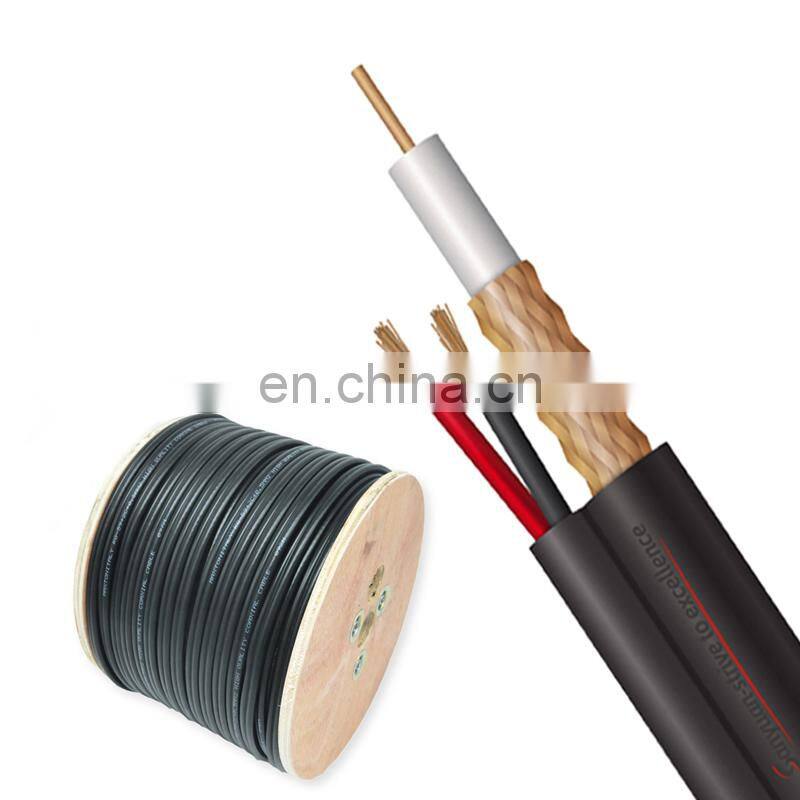

High Transmitting CCTV Cable RFCoaxial Tv RG59 RG6 RG11 Coaxial Cable

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

75 Ohms COAXIAL CABLE

The basic concept is that coax cable, also known as coaxial cable, is commonly used by cable operators, telephone companies, and internet providers around the world to convey data, video, and voice communications to customers. It has also been used extensively within homes.

Type	RG59	RG6	RG11
Inner Conductor(mm)	0.81	1.02	1.63
Dielectric(mm)	3.66	4.57	7.11
Insulation Material	Foam PE			Solid PE
Braiding Shield	40~90%
Jacket(mm)	6.10	6.90	10.16

RG59 COAXIAL CABLE

. Inner conductor: CCS/CU

. Dielectric Material: Solid PE

. Braiding Material: Aluminum wire

. Braiding Coverage: 40~90%

. Jacket: PVC/PE/LSZH

. Color: White/Black/Customized

. Packaging Type: 100m roll/OEM

. OEM is available

Type			RG59	RG6	RG11
Impedance(Ω)			75+/-2
SRL(≥dB)			20
Velocity of Propagation			66%
Attenuation (≤dB/100n)	50MHz	2.91	2.00	1.44
		100MHz	6.73	5.25	3.20
		200MHz	12.47	10.00	6.23
		400MHz	16.73	13.61	8.53
		500MHz	19.52	14.43	9.97
		800MHz	22.87	16.08	11.97
		1000MHz	26.64	21.49	14.27

Details Images

What is Coax cable and how is it used?

· Coaxial cable is commonly used by cable operators, telephone companies, and internet providers around the world to convey data,video, and voice communications to customers. It has also been used extensively within homes.
· Coax cable is a specific type of multi-conductor cable that carries an internal conductor that is surrounded by an insulating layer which is then surrounded by a conducting shield. This arrangement can vary with some coax cables having more layers and becoming quite complex.

· The basic concept is that coax cable, also known as coaxial cable, has an inner conductor that carries the signal while the outer conductor prevents signal leakage. The space between the two conductors is occupied by a dielectric insulation where the electric and magnetic fields are restricted.
· To combat this, coax cable is used as it is designed to block out interference while restricting the intended signal to the
dielectric material. As complex as it may sound, coax cable is very common and not difficult at all to work with.

* Are you a manufacture or a trading company?

Sanyuan cable Company is a professional cable manufacturer with 23 years production experience.

* Whether these products quality assures?

Most of cables are certificated. Also, we have strict QC,all products are 100% tested before delivery.Quality is assured.

* When I want customized products,how to do?

We have Equipped with professional equipment,technicians & skilled employees, OEM & Customized service is welcome.Drawing/Samples are required.

* Can you send a sample for us to test?

1, If we have inventory and total amount is small,it's free.

2, If we don't have inventory,sample and freight cost have to be paid by your esteemed company.But we will return the sample cost to you when we receiving your initial order.

* If I want to purchase,how to pay?

Generally we do T/T in 30% deposit before production,70% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.

* After I pay,what about the lead time and shipping method?

Goods can be delivered by air,by express or by sea;International Express as FedEx,UPS,DHL,TNT;You can choose the best the best way as you wish.As for the Lead time,10~20 days.
