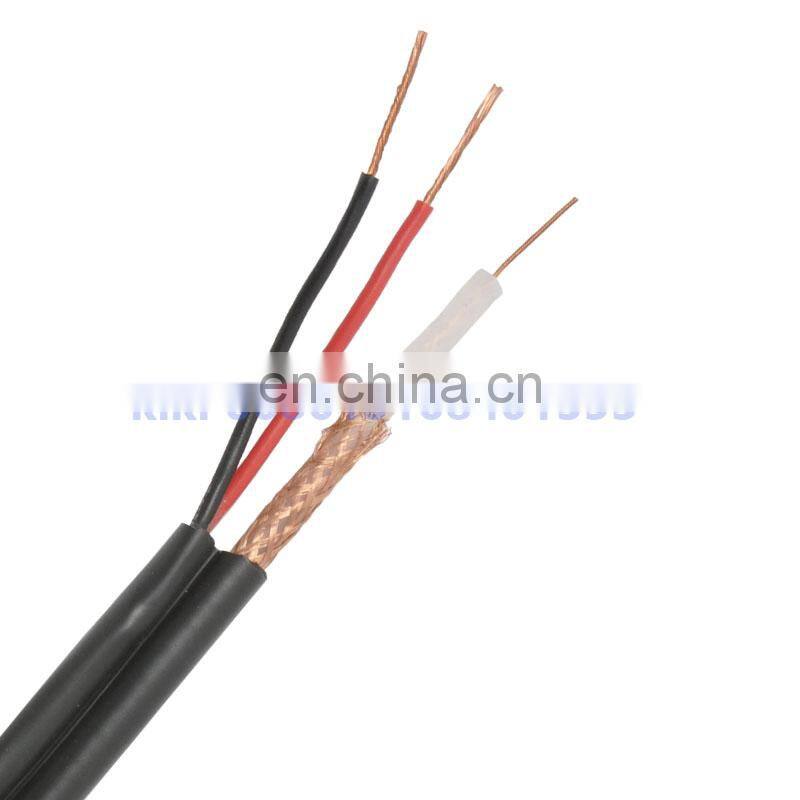

Cca Copper RG59 2dc Coaxial Cable Rg59 Coaxial Cable Coaxial CCS 18 AWG Black 1000ft
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2006
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coaxial Cable RG59 2dc Copper CCA Rg59 Coaxial Cable Coaxial CCS 18 AWG Black 1000ftNegotiableMOQ: 1 -
75ohm Low Loss Stranded RG59 With Power Rg59 2dc Solid PE 305m RG6 CCTV Camera RG6 Siamese Communication Coaxial CableNegotiableMOQ: 1
-
Dual Shield RG59 2dc Coaxial Cable Rg59 Coaxial Cable Coaxial CCS 18 AWG Black 1000ftNegotiableMOQ: 1
-
RG59+2C COAXIAL CABLENegotiableMOQ: 1
-
Fire Alarm Cable 4 Core Copper Shield Red Pvc 2core 4 Core 6 Core Alarm Cable Fire Proofing CableNegotiableMOQ: 1

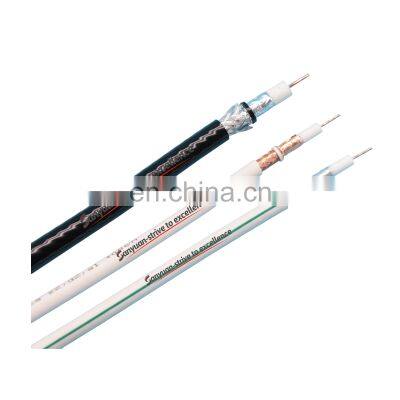

75 Ohms COAXIAL CABLE
The basic concept is that coax cable, also known as coaxial cable, is commonly used by cable operators, telephone companies, and internet providers around the world to convey data, video, and voice communications to customers. It has also been used extensively within homes.
Type | RG59 | RG6 | RG11 | ||
Inner Conductor(mm) | 0.81 | 1.02 | 1.63 | ||
Dielectric(mm) | 3.66 | 4.57 | 7.11 | ||
Insulation Material | Foam PE | Solid PE | |||
Braiding Shield | 40~90% | ||||
Jacket(mm) | 6.10 | 6.90 | 10.16 | ||

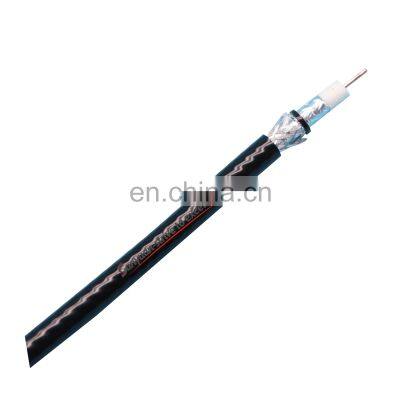

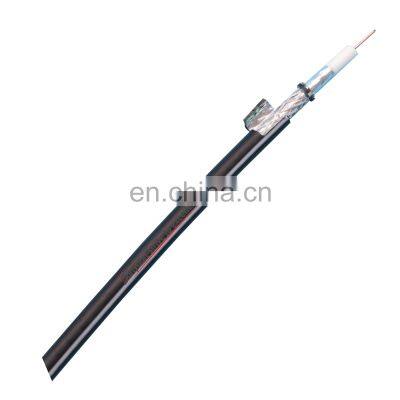

RG59 COAXIAL CABLE
. Inner conductor: CCS/CU
. Dielectric Material: Solid PE
. Braiding Material: Aluminum wire
. Braiding Coverage: 40~90%
. Jacket: PVC/PE/LSZH
. Color: White/Black/Customized
. Packaging Type: 100m roll/OEM
. OEM is available
Type | RG59 | RG6 | RG11 | ||||
Impedance(Ω) | 75+/-2 | ||||||
SRL(≥dB) | 20 | ||||||
Velocity of Propagation | 66% | ||||||
Attenuation (≤dB/100n) | 50MHz | 2.91 | 2.00 | 1.44 | |||
100MHz | 6.73 | 5.25 | 3.20 | ||||
200MHz | 12.47 | 10.00 | 6.23 | ||||
400MHz | 16.73 | 13.61 | 8.53 | ||||
500MHz | 19.52 | 14.43 | 9.97 | ||||
800MHz | 22.87 | 16.08 | 11.97 | ||||
1000MHz | 26.64 | 21.49 | 14.27 | ||||
Details Images
What is Coax cable and how is it used?
· Coax cable is a specific type of multi-conductor cable that carries an internal conductor that is surrounded by an insulating layer which is then surrounded by a conducting shield. This arrangement can vary with some coax cables having more layers and becoming quite complex.
· The basic concept is that coax cable, also known as coaxial cable, has an inner conductor that carries the signal while the outer conductor prevents signal leakage. The space between the two conductors is occupied by a dielectric insulation where the electric and magnetic fields are restricted.
· To combat this, coax cable is used as it is designed to block out interference while restricting the intended signal to the
dielectric material. As complex as it may sound, coax cable is very common and not difficult at all to work with.
· To combat this, coax cable is used as it is designed to block out interference while restricting the intended signal to the
dielectric material. As complex as it may sound, coax cable is very common and not difficult at all to work with.
* Are you a manufacture or a trading company?
Sanyuan cable Company is a professional cable manufacturer with 23 years production experience.
* Whether these products quality assures?
Most of cables are certificated. Also, we have strict QC,all products are 100% tested before delivery.Quality is assured.
* When I want customized products,how to do?
We have Equipped with professional equipment,technicians & skilled employees, OEM & Customized service is welcome.Drawing/Samples are required.
* Can you send a sample for us to test?
1, If we have inventory and total amount is small,it's free.
2, If we don't have inventory,sample and freight cost have to be paid by your esteemed company.But we will return the sample cost to you when we receiving your initial order.
* If I want to purchase,how to pay?
Generally we do T/T in 30% deposit before production,70% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.
* After I pay,what about the lead time and shipping method?
Goods can be delivered by air,by express or by sea;International Express as FedEx,UPS,DHL,TNT;You can choose the best the best way as you wish.As for the Lead time,10~20 days.
