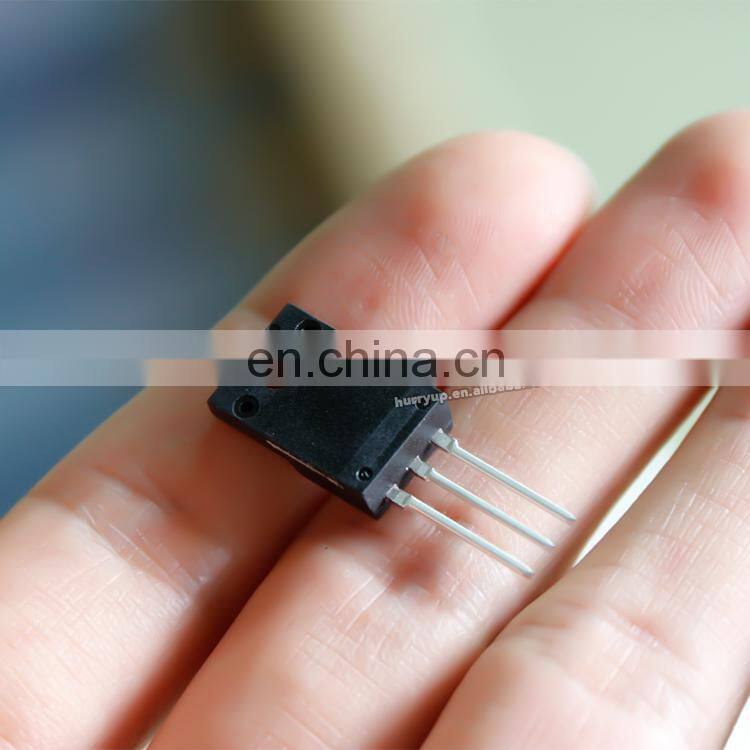

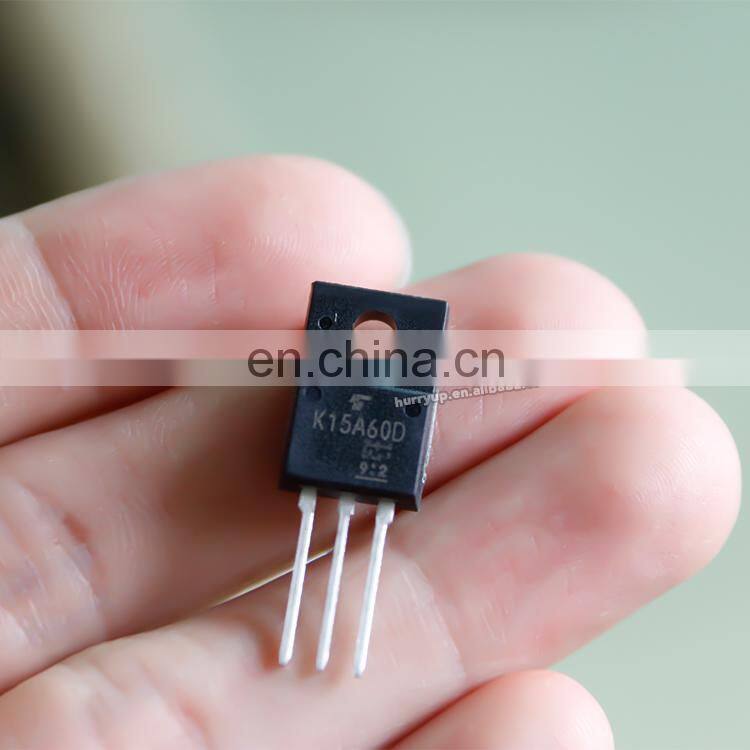

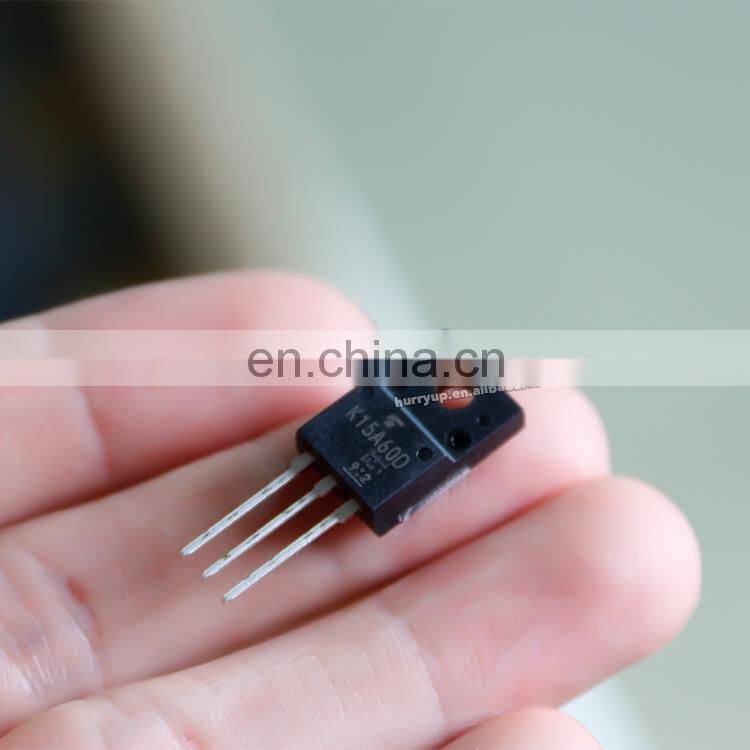

New & Original TK15A60D K15A60D Switching Voltage Regulator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
New & Original Flash Memory Chip W25Q128JVSIQ W25Q128JVSQ, 25Q128JVSQ 25Q128JVSIQ 2031
-
IC Chip ATMEL ATMEGA1284P U-TW 35452B 2022U2M, ATMEGA1284P-AU Processor
-
New Original Accelerometer Speed Sensor ADXL355BEZ-RL7 ADXL355BEZ ADXL355B ADXL355
-
New Original MSOP8 Silk Screen J5A RF Detector Chip AD AD8314ARMZ-REEL7 AD8314ARMZ AD8314ARMZ AD8314
-
New & Original LFCSP-48 RF Chip AD9864BCPZ AD9864
-
Operational Amplifier TSSOP14 ADA4096-4ARUZ-R7 ADA4096-4ARUZ ADA4096
Product Description
Why Choose Us
Description | ||
Application Scope | Switching Voltage Regulators | |
Polarity | N-ch | |
Generation | π-MOSⅦ | |
Internal Connection | Single | |
RoHS Compatible Product(s) (#) | Available | |
Assembly bases | Malaysia | |
Package Information | ||
Toshiba Package Name | TO-220SIS | |
Package Image | ||
JEITA | SC-67 | |
Pins | 3 | |
Mounting | Through Hole | |
Width×Length×Height (mm) | 10.0×15.0×4.5 | |
Absolute Maximum Ratings | ||||||
Characteristics | Symbol | Rating | Unit | |||
Drain-Source voltage | VDSS | 600 | V | |||
Gate-Source voltage | VGSS | +/-30 | V | |||
Drain current | ID | 15 | A | |||
Power Dissipation | PD | 50 | W | |||
Electrical Characteristics | ||||||||
Characteristics | Symbol | Condition | Value | Unit | ||||
Gate threshold voltage (Max) | Vth | - | 4 | V | ||||
Drain-Source on-resistance (Max) | RDS(ON) | |VGS|=10V | 370 | mΩ | ||||
Input capacitance (Typ.) | Ciss | - | 2600 | pF | ||||
Total gate charge (Typ.) | Qg | VGS=10V | 45 | nC | ||||
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
