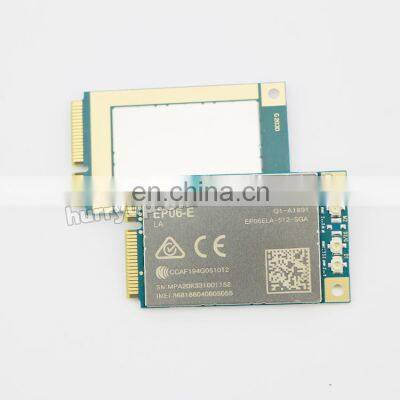

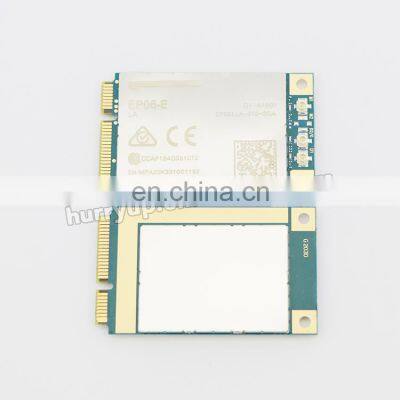

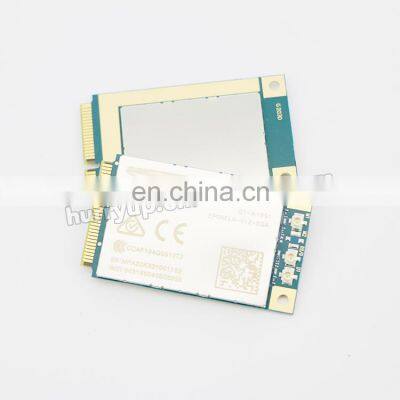

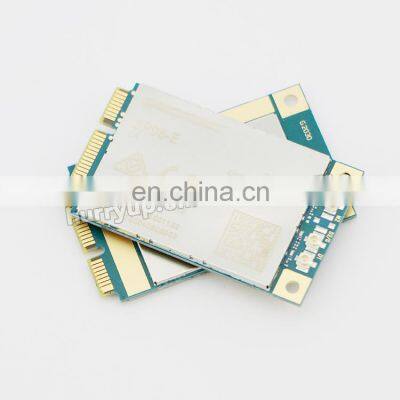

LTE Category 6 Module EP06, LTE-A Module EP06-E EP06ELA-512-SGA
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EG25-G Mini PCIe Module, IoT/M2M Optimized LTE Cat 4 Module EG25NegotiableMOQ: 1 -
Cheapest GSM GPRS Module SIM800CNegotiableMOQ: 1
-
5G Module RM500Q-AE, 5G 4G 3G Module RM500QAE Support Multi GNSS 2.5Gbps/900Mbps 5G Sub-6GHz RM500QNegotiableMOQ: 1
-
300Mbps/50Mbps 4G LTE Cat.6 Module EM7430, APAC Region Support GPS/GLONASS/Beidou/Galileo EM7430 M2M Module DW5816eNegotiableMOQ: 1
-
150Mbps/50Mbps SIMCOM SIM7600G-H 4G LTE Cat4 Module Global Band SIM7600 SIM7600G SIM7600G-H R2NegotiableMOQ: 1
Description
Overview
EP06 is a series of LTE category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 300Mbps downlink and 50Mbps uplink.
Designed in the Mini PCIe form factor, EP06 series contains 2 variants (EP06-E and EP06-A) for different target regions and both variants nearly cover all the main stream carriers worldwide.
EP06 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, set top box, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Key Benefits
● LTE-A Cat 6 module with Mini PCIe form factor, optimized for M2M and IoT applications
● Support LTE-A carrier aggregation
● Worldwide LTE-A and UMTS/HSPA(+) coverage
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
● Feature refinements: supports DFOTA and DTMF
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Frequency |
EP06-E |
EP06-A |
||
LTE-FDD |
B1/B3/B5/B7/B8/B20/B28/B32② |
B2/B4/B5/B7/B12/B13/B25/B26/B29②/B30/B66 |
||
LTE-TDD |
B38/B40/B41 |
|||
LTE 2×CA |
B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32②; B38+B38; B40+B40; B41+B41 |
B2+B2/B5/B12/B13/B29②; B4+B4/B5/B12/B13/B29②; B7+B5/B7/B12/B26; B25+B5/B12/B25/B26; B30+B5/B12/B29②; B66+B5/B12/B13/B29②/B66 |
||
UMTS/WCDMA |
B1/B3/B5/B8 |
B2/B4/B5 |
||
Embedded GNSS |
Y |
Y |
||
PCIe Interface |
Optional |
Optional |
||
USB 3.0 |
Y |
Y |
||
Region |
EMEA/APAC①/Brazil |
North America |
||
Certification |
Carrier: Deutsche Telekom*/ Telstra Regulatory: GCF/ CE/ NCC/ RCM |
Carrier: Verizon/ AT&T/ Sprint/ Rogers Regulatory: GCF/ FCC/ PTCRB/ IC |
||
Notes: ① Excluding Japan and CMCC. ② LTE-FDD B29 and B32 support receiving only, and are only for secondary component carrier in 2×CA. * Under Development. |
||||
