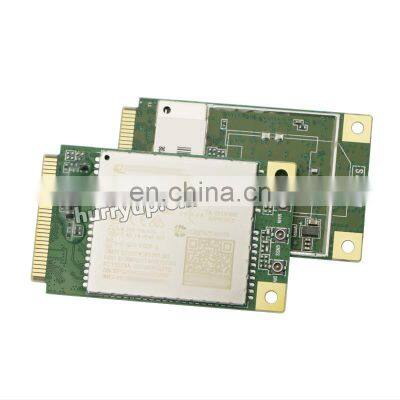

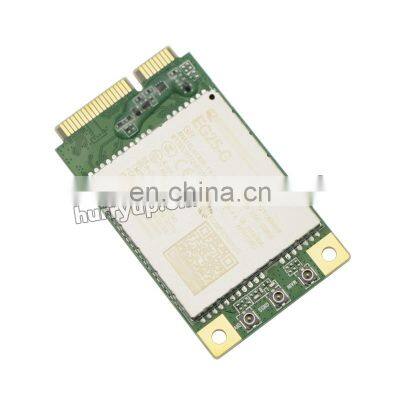

EG25-G Mini PCIe Module, IoT/M2M Optimized LTE Cat 4 Module EG25
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheapest GSM GPRS Module SIM800CNegotiableMOQ: 1 -
5G Module RM500Q-AE, 5G 4G 3G Module RM500QAE Support Multi GNSS 2.5Gbps/900Mbps 5G Sub-6GHz RM500QNegotiableMOQ: 1
-
300Mbps/50Mbps 4G LTE Cat.6 Module EM7430, APAC Region Support GPS/GLONASS/Beidou/Galileo EM7430 M2M Module DW5816eNegotiableMOQ: 1
-
150Mbps/50Mbps SIMCOM SIM7600G-H 4G LTE Cat4 Module Global Band SIM7600 SIM7600G SIM7600G-H R2NegotiableMOQ: 1
-
150Mbps/50Mbps LTE Cat4 Module EC25 EC25-E, Mini PCIe Form Factor 4G Module EC25EFA EC25-EFA EC25EFA-512-STDNegotiableMOQ: 1
Description
Overview
EG25-G Mini PCIe is an LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink.
EG25-G Mini PCIe is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EG25-G Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.
Key Benefits
● LTE category 4 module optimized for broadband IoT applications
● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
● Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
SPEC:
Frequency Bands
EG25-G Mini PCIe:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Data
LTE:
LTE-FDD: Max 150Mbps (DL)/Max 50Mbps (UL)
LTE-TDD: Max 130Mbps (DL)/Max 30Mbps (UL)
UMTS:
DC-HSDPA: Max 42Mbps (DL)
HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
GSM:
EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Voice
Speech Codec Modes:
HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic:
Echo Cancellation/Noise Suppression
Audio:
Digital Audio and VoLTE (Voice over LTE)
(Optional)
Interfaces
USB x 1: USB 2.0 with High Speed up to 480Mbps
PCM x 1: Digital Audio through PCM (Optional)
I2C x 1
(U)SIM x 1: 1.8V/3.0V (U)SIM Interface
UART × 1: Main UART
LED_WWAN# for Network Status Indication
W_DISABLE# for Disabling RF Function
PERST# for Module Resetting
Main, Rx-diversity and GNSS Antenna Connectors
Enhanced Features
eCall*
DTMF
Audio Playback/Audio Recording
(U)SIM Card Detection
QuecFile*
(U)SIM Card Connector (Optional)①
QuecLocator®
Downlink MIMO (Supports Rx-diversity Antenna)
DFOTA:
Delta Firmware Upgrade Over-The-Air
GNSS:
GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS
(Optional)
Software Features
USB Serial Driver:
Windows 7/8/8.1/10,
Linux 2.6~5.4,
Android 4.x/5.x/6.x/7.x/9.x
GNSS Driver:
Android 4.x/5.x/6.x/7.x/8.x/9.x
RIL Driver:
Android 4.x/5.x/6.x/7.x/8.x/9.x
NDIS Driver:
Windows 7/8/8.1/10
MBIM Driver:
Windows 8/8.1/10, Linux 3.18~5.4
GobiNet Driver:
Linux 2.6~5.4
QMI_WWAN Driver:
Linux 2.6~5.4
Protocols:
TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/
SMTP/MQTT/CMUX/HTTPS/FTPS/SMTPS/SSL/
MMS*/FILE*
General Features
Operation Temperature Range: -35°C ~ +75°C
Extended Temperature Range: -40°C ~ +80°C
Dimensions: 51.0mm x 30.0mm x 4.9mm
Weight: Approx. 9.8g
Mini PCIe Package
Supply Voltage: 3.0V~3.6V, 3.3V Typ.
3GPP E-UTRA Release 11
Bandwidth: 1.4/3/5/10/15/20MHz
3GPP TS27.007 and Enhanced AT Commands
www.hurryup.en.china.cn
Approvals
Carrier:
Deutsche Telekom (Europe)
Verizon/AT&T/U.S. Cellular/T-Mobile*/Sprint*
(North America)
Telus/Rogers* (Canada)
Regulatory:
GCF (Global)
CE (Europe)
FCC/PTCRB (North America)
IC (Canada)
Anatel (Brazil)
IFETEL (Mexico)
SRRC/CCC/NAL (China)
KC (South Korea)
NCC (Taiwan, China)
JATE/TELEC (Japan)
RCM (Australia & New Zealand)
FAC* (Russia)
NBTC* (Thailand)
IMDA (Singapore)
ICASA (South Africa)
Others:
RoHS
WHQL
* Under Development
① There are two types of EG25-G Mini PCIe,
with or without (U)SIM card connector.
