Description

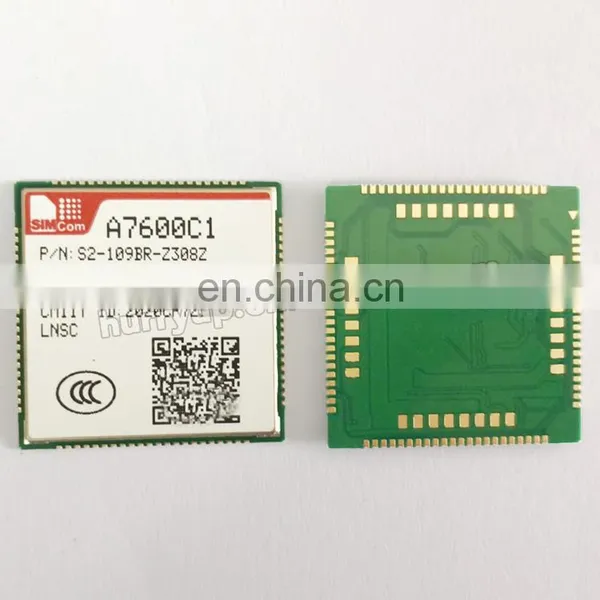

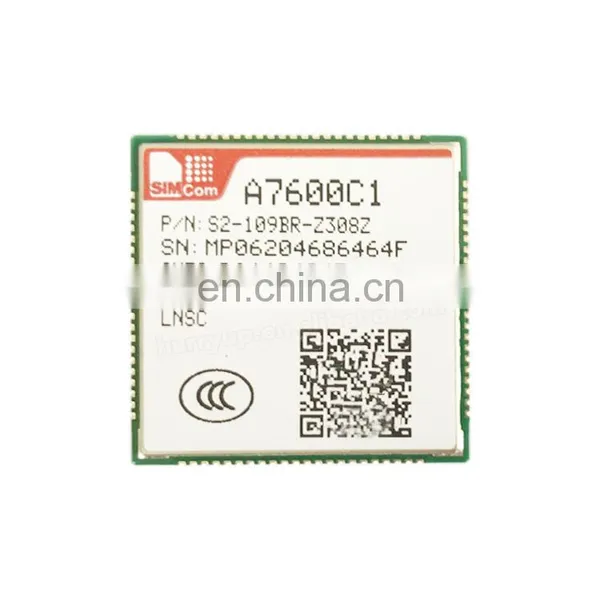

A7600C1 A7600C1 is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/GSM*/GPRS*/EDGE*. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. A7600C1 adopts LCC+LGA form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs. A7600C1 supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. Meanwhile A7600C1 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc. Product Advantages ◆ LCC+LGA form factor with abundant interfaces ◆ Suitable for China LTE and GSM networks ◆ Abundant software functions: FOTA, LBS, SSL ◆ Offer high cost-performance
General Features
Data Transfer
Frequency Bands:
LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B3/B5/B8
GSM/GPRS/EDGE 900/1800 MHz
Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V
Control Via AT Commands:
Operation temperature: -40℃ ~ +85℃
Dimensions: 30.0*30.0*2.5mm
Weight:4.6±0.1g
LTE Cat 1:
Uplink up to 5Mbps
Downlink up to10Mbps
EDGE: Uplink/Downlink up to 236.8Kbps
GPRS: Uplink/Downlink up to 85.6Kbps
Certifications
Other Features
3C/SRRC/NAL
RoHS # /REACH #
USB Driver for Microsoft Windows 7/8/10
USB Driver for Linux /Android
RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
Firmware update via USB/FOTA
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTP/DNS
RNDIS/PPP/ECM
SMS
SSL
Wifi-scan*
Interfaces
USB2.0
UART
(U)SIM card(1.8V/3V )
PCM*
MMC/SD
Keypad*
LCM*
Camera*
ADC
I2C
GPIO
Antenna: Primary
