Home > Products > GPS+GSM/LTE Antenna > 3 in 1 850/900/1800/1900/2100MHz GSM GPS Wifi Antenna, 2G GPS WiFi Antenna

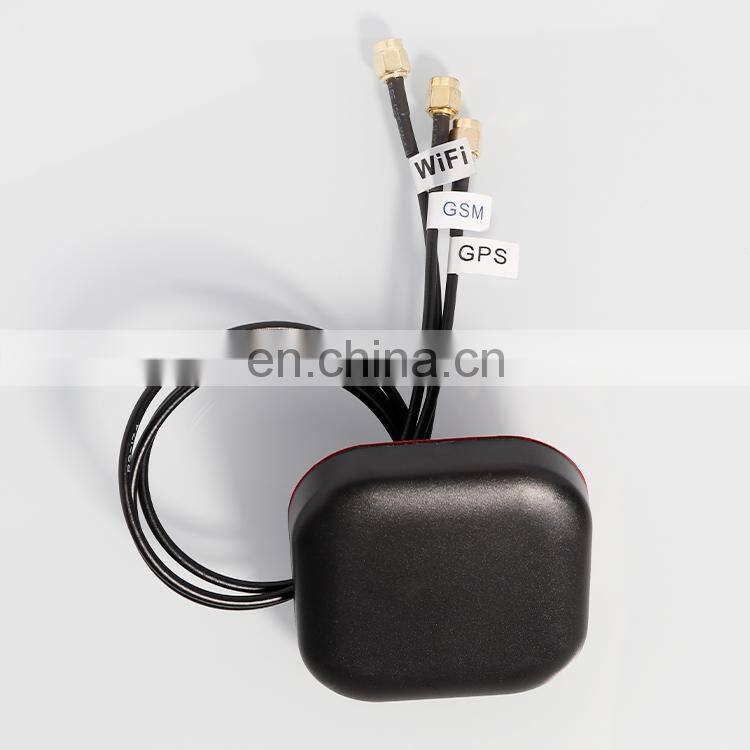

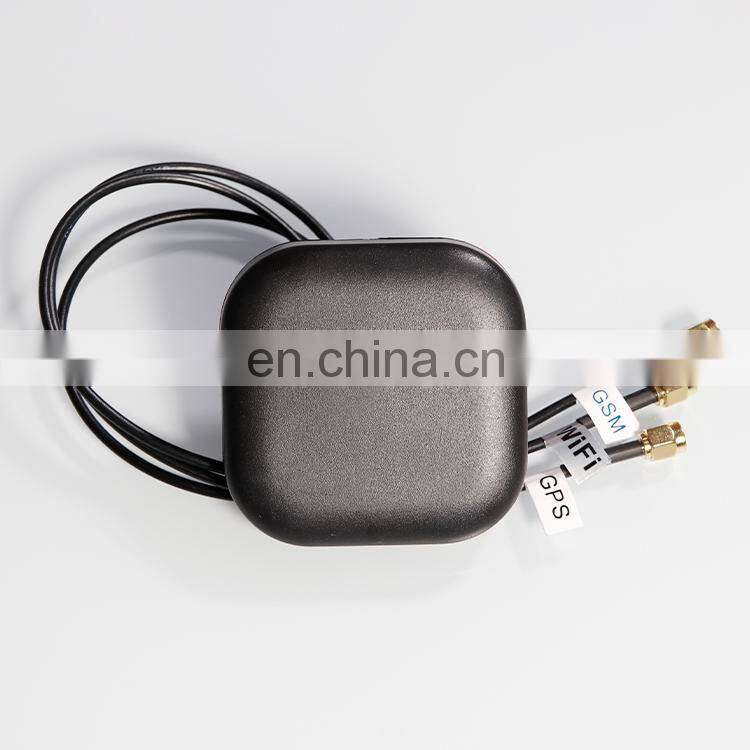

3 in 1 850/900/1800/1900/2100MHz GSM GPS Wifi Antenna, 2G GPS WiFi Antenna
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
120x26.8mm 690~960MHz&1710~2690MHz 4G GPS Antenna, Support GPS Galileo Glonass Beidou Compatible with 2G 3G 4G GNSS LTE Antenna
-
3 in 1 Screw Mounting 3G 4G WiFi Antenna, 100cm RG174 Cable SMA Male Connector Multi-Frequency 2.4G WiFi 3G 4G LTE Antenna
-
3 Meters LMR100 Cable SMA Male Connector GNSS 4G Antenna, GPS+Glonass+Galileo+Beidou SMA GNSS LTE Antenna
-
3 Meters LMR100 Cable Fakra Connector GNSS 4G Antenna, GPS+Glonass+Galileo+Beidou Fakra GNSS LTE Antenna
-
7x1.2x2.8cm GPS GSM Antenna, Waterproof Adhesive/Magnetic Mounting GSM+GPS Antenna
-
Screw Mounting 3 Meters RG174 Cable SMA Male Connector 2 in 1 GSM GPS Antenna
Product Description
Description
（i）Dielectric Antenna
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance（Ω）：50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
Polarization：RHCP
（ii）GSM Antenna
Center Frequency（MHz）：850/900/1800/1900/2100
VSWR：2.0:1
Impedance（Ω）：50
Typical Gain：2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
（iii）Wifi Antenna
Frequency（MHz）：2400-2500
VSWR ≤1.5
Gain（dBi）：2.15
Impedance（Ω）：50
Polarization：Vertical
（iv）LNA/Filter
LNA Gain(Without Cable) ：28 dBi Typical
Noise Figure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current（mA）：11 Max
（v）Mechanical
Weight（gram ）＜240
Size（mm）：70×70×14
Cable GPS（m）：RG174 2,5 etc.
GSM（m）：RG174 2,5 etc.
Wifi（m）：RG174 2,5 etc.

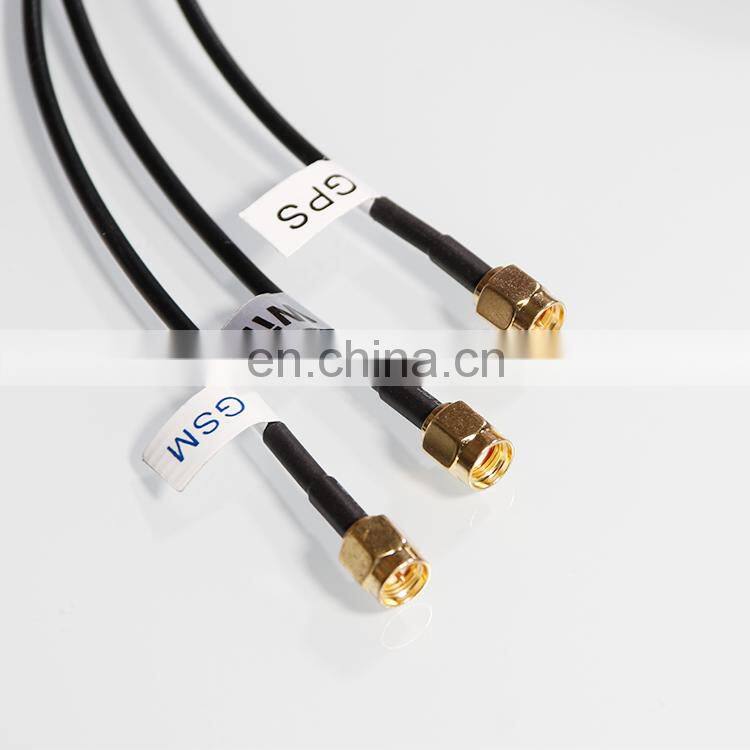

Connector GPS：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX/FAKRA etc.
GSM：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX/FAKRA etc.
Wifi：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX/FAKRA etc.

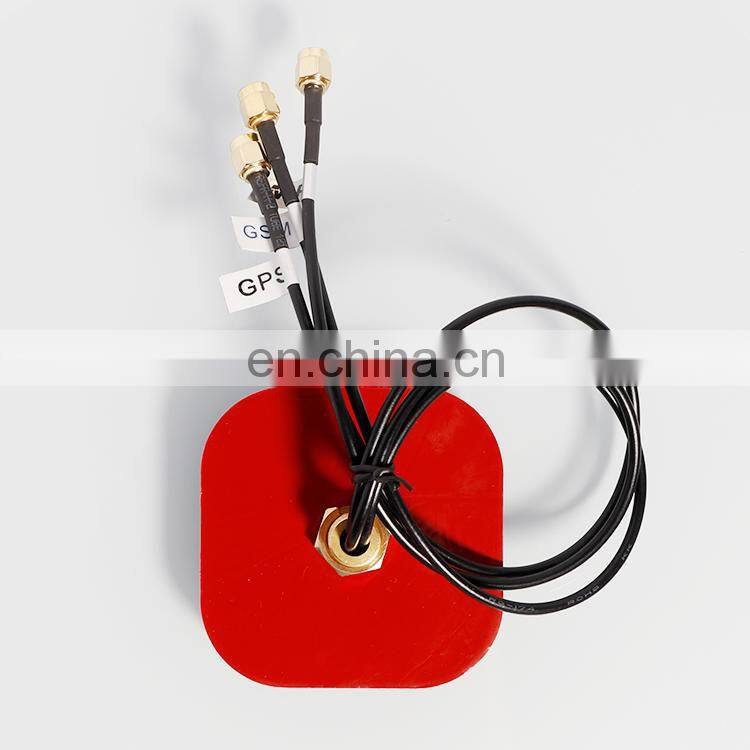

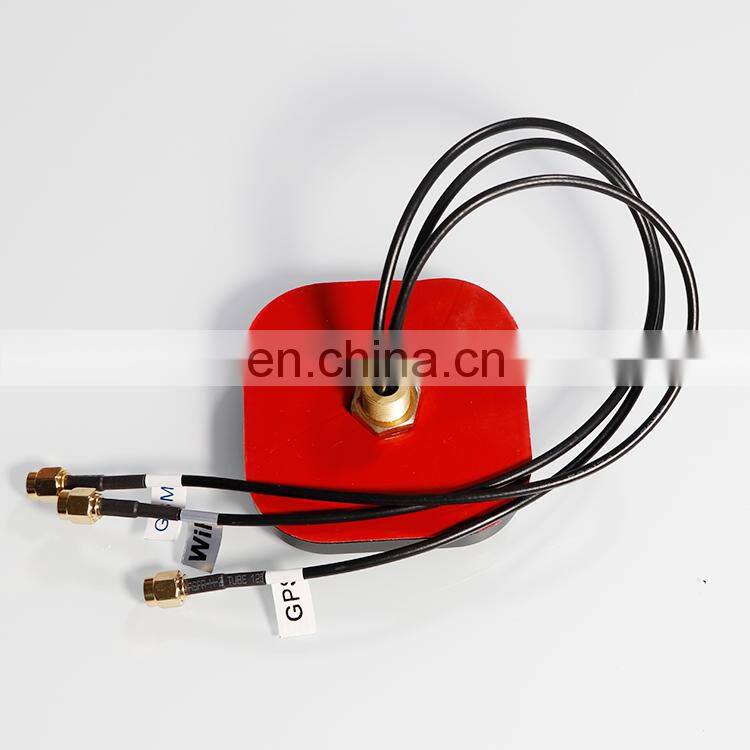

Mounting：Screw(Hole/Roof)/Magnetic/adhesive
Housing：Black
（vi）Environmental
Working Temp：-40℃~+85℃
Storage Temp：-45℃~+100℃
Vibration：Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity：Humidity95%~100%RH
Weatherproof：100%Waterproof
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
