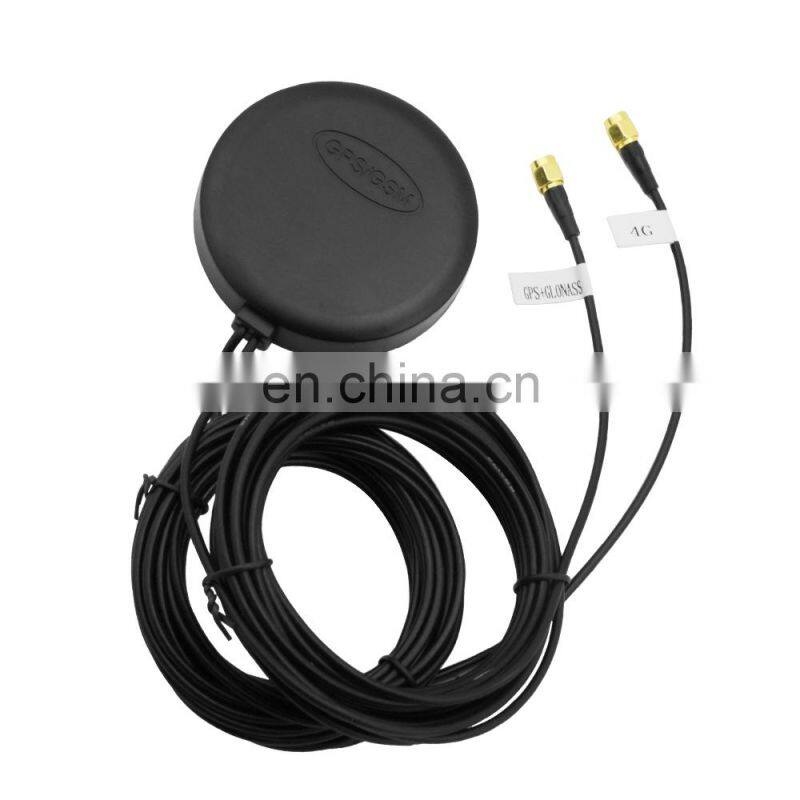

IP67 4G GPS GLONASS combo antennas Active External combined antennas With SMA Male
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Dual band supply cable car gps tracker 3G GPS combo antenna
-
Dual Band GSM 3G Car GPS Antenna Active External Lowrance GPS Antenna With SMA Male Connector
-
Small Size Car Navigation GPS GLONASS GSM WIFI 3G 4G Combo Antenna
-
Embedded GSM module GPRS modem gps gsm antenna
-
GPS 3G GSM Combo Antenna with RG174 Cable SMA Male Connector
-
Waterproof GPS Active Antenna 4G GPS Antenna, GPS Cellular Antenna 3-5VDC
Product Description
Description
(i)Dielectric Antenna
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization:RHCP
(ii)LTE Antenna
Frequency(MHz):690-960/1710-2700
VSWR ≤2.0
Gain(dBi):3
Max Input power(W):60
Input Impedance(Ω):50
Polarization :Vertical
(iii)LNA/Filter
LNA Gain (Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1590 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max

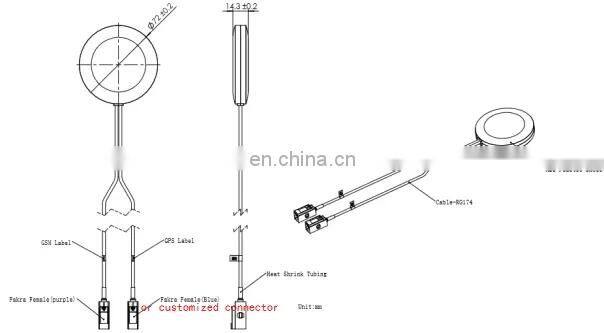

(iv)Mechanical
Weight(gram )<240
Size(mm):96×36×15
Cable GPS/GLONASS(m):RG174 2,5 etc.
LTE(m):RG174 2,5 etc.

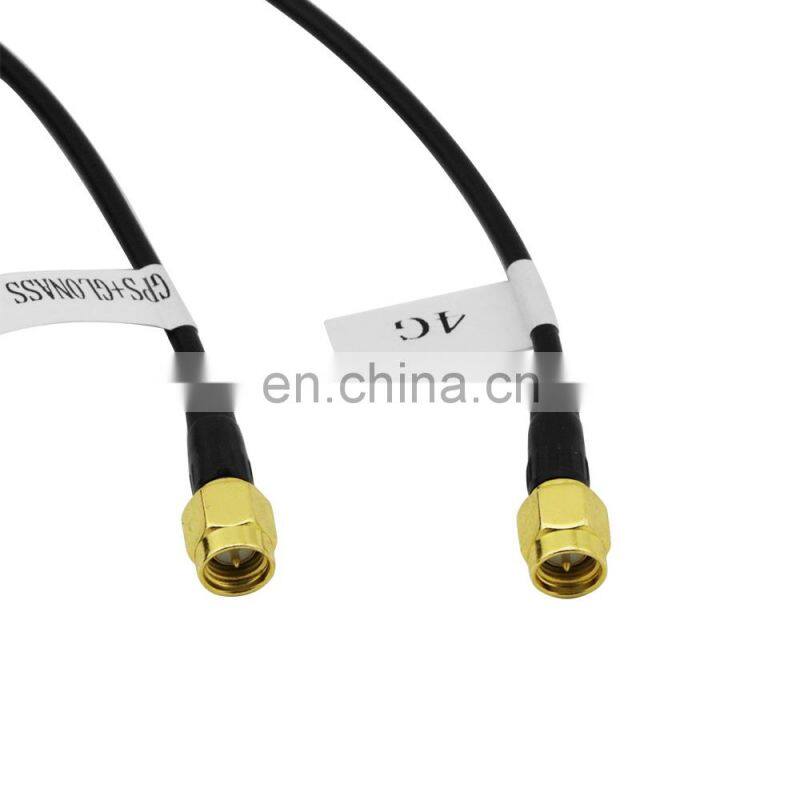

Connector GPS/GLONASS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
LTE:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.

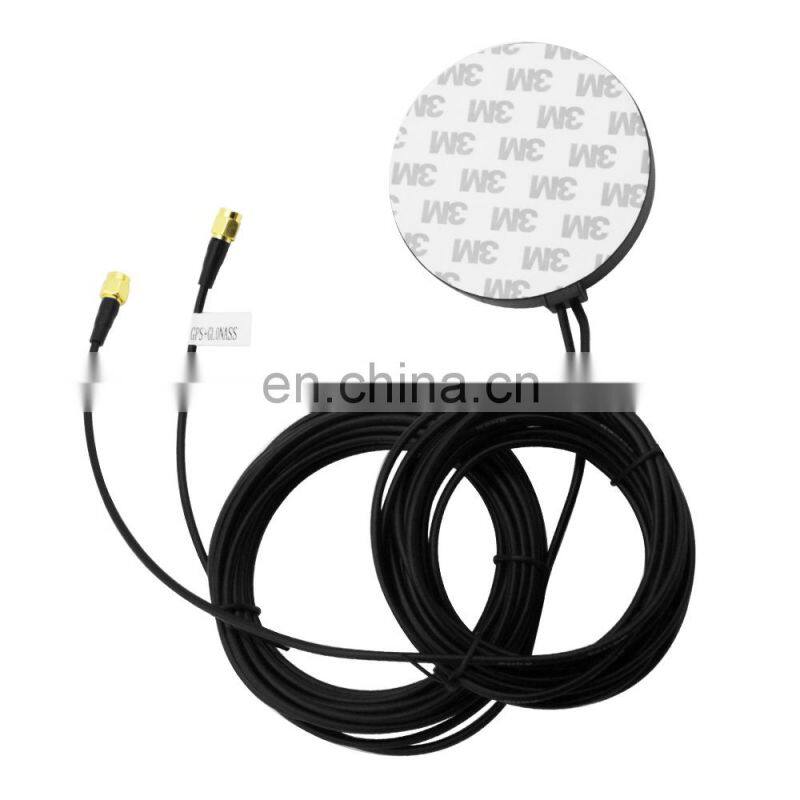

Mounting:Adhesive/Magnetic
Housing:Black
(v)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
Center Frequency(MHz):1590
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane
Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)
Polarization:RHCP
(ii)LTE Antenna
Frequency(MHz):690-960/1710-2700
VSWR ≤2.0
Gain(dBi):3
Max Input power(W):60
Input Impedance(Ω):50
Polarization :Vertical
(iii)LNA/Filter
LNA Gain (Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1590 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0
DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current(mA):11 Max
(iv)Mechanical
Weight(gram )<240
Size(mm):96×36×15
Cable GPS/GLONASS(m):RG174 2,5 etc.
LTE(m):RG174 2,5 etc.
Connector GPS/GLONASS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
LTE:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Adhesive/Magnetic
Housing:Black
(v)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
