Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 2.4Gbps/1Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module Which Supports R16 5G NSA/SA SIMCom SIM8262E-M2 SIM8262E
2.4Gbps/1Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ Module Which Supports R16 5G NSA/SA SIMCom SIM8262E-M2 SIM8262E
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.4Gbps/1Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ GNSS Module Support R16 5G NSA/SA SIMCom SIM8262A-M2 SIM8262ANegotiableMOQ: 1 -
1.5Gbps/1Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ GNSS R15 5G Module SIMCom SIM8210CNegotiableMOQ: 1
-
1.5Gbps/1Gbps Multi-Band 5G NR/LTE-FDD/LTE-TDD GNSS Module SIMCom SIM8210C-M2 SIM8210CNegotiableMOQ: 1
-
Multi-Band LWPA NB-IoT Module SIMCom Y7080ENegotiableMOQ: 1
-
300Mbps/50Mbps LTE Cat.6 Smart Module With Android System SIMCom SIM8970EU SIM8970NA SIM8970NegotiableMOQ: 1
Description
SIM8262E-M2
● The SIM8262E-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.
● It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.
● The SIM8262E-M2 adopts M2 form factor. AT commands of the SIM8262E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.
● It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
● Standard M.2 interface
● High throughput data communication
● AT commands of the SIM8262E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules
General Features |
Software Features |

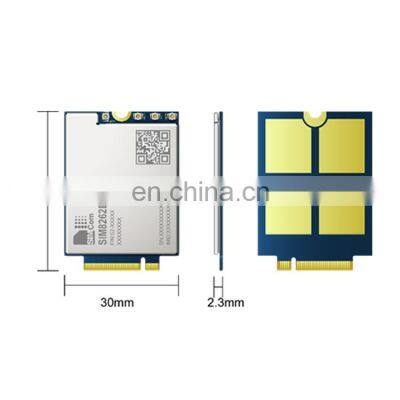

Form Factor: M.2 Dimensions(mm): 42.0*30.0*2.3 Frequency Bands: 5G Sub-6G: n1,n3,n5,n7,n8,n18,n20,n26,n28,n38,n40,n41,n48,n66,n77,n78,n79 LTE-FDD: B1,B3,B4,B5,B7,B8,B18,B19,B20,B26,B28,B32,B66 LTE-TDD: B38,B39,B40,B41,B42,B43,B48 WCDMA: B1,B5,B8 GNSS: GPS/GLONASS/Beidou/Galileo/QZSS Temperature: -30℃ ~ +70℃ |
Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 TLS: ● File System: ● FOTA: ● Android RIL: Android 6/7/8/9 USB Driver: Microsoft Windows Win7/Win8/Win10/Linux/Android d MBIM: Win8/Win10 NDIS: Linux/Win7/Win8/Win10 Firmware Upgrade: USB |
Electrical Features |
Data Transfer |
Supply Voltage(V): 3.135 ~ 4.4 |
Sub-6G SA: 2.4Gbps(DL)/1Gbps(UL) Sub-6G NSA: 3.4Gbps(DL)/600Mbps(UL) LTE: 1.6Gbps(DL)/200Mbps(UL) HSPA+: 42Mbps (DL)/5.76Mbps(UL) (UL) |
Interfaces |
Certifications |
SIM Card: 1.8V/2.95V USB: ● PCM: ● I2C: ● Diversity Receiver: ● |
Regulatory: CE(RED)*/FCC*/RoHS*/REACH* |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
