300Mbps/50Mbps LTE Cat.6 Smart Module With Android System SIMCom SIM8970EU SIM8970NA SIM8970
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCom Smart Module SIM8918 Series SIM8918CE SIM8918E SIM8918EA SIM8918SA SIM8918NA SIM8918WNegotiableMOQ: 1 -
L1+L5 Dual-Band GNSS Module GPS GLONASS Beidou Galileo QZSS Module SIMCom SIM68MDNegotiableMOQ: 1
-
L1+L5 Dual-Band GNSS Module Support GPS GLONASS BeiDou Galileo QZSS SIMCom SIM68ATNegotiableMOQ: 1
-
L1+L5 Dual-Band GNSS Module Support GPS GLONASS BeiDou Galileo QZSS SIMCom SIM66MDNegotiableMOQ: 1
-
GNSS Module Support GPS GLONASS BDS Galileo QZSS SIMCom SIM65MNegotiableMOQ: 1
Description
SIM8970-Series
● The SIM8970 series is the LTE Cat 6 smart module with Android system, it adopts Qualcomm 8-core 64-bit ARM V-8 processor, with frequency up to 2.0GHz and AdrenoTM 610 GPU. It supports multiple high resolution camera and high definition touch display, and has powerful high data transfer and multimedia processing capability. With smart module operation system and high performance advantage, the module is ideal for rapid development of multimedia wireless communication products and applications.
● The SIM8970 series highly integrates wireless communication, short distance communication and multiple satellite positioning receiver function. MIMO technology is used to support LTE Cat 6 and 2 × 20MHz carrier aggregation.It supports multiple communication modes such as GSM/GPRS/EDGE, WCDMA/HSPA+, LTE-FDD and LTE-TDD. It supports GNSS multi-mode satellite positioning and short distance communication including Wi-Fi 802.11 a/b/g/n/ac and BT5.x BLE
● The SIM8970 series has abundant interfaces, it can be connected with camera, display screen, audio, sensors and other equipments. It supports multi-dimensional data collection and man-machine interaction. The interfaces including MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand smart module applications, and make the module suitable for smart POS, advertising media, automotive electronics, smart diagnostics, smart security devices and industry.
Product Advantages
● Cat 6 / Wi-Fi / BT
● Support 4K@30fps video recording and playing
● Built in charging management function, supporting QC3.0
● Integrate GNSS function, supports rapid accurate positioning under different environment
● 4-lane MIPI_ DSI(up to 2520*1080 @60fps) and DP over USB Type-C for Dual Independent Display
● Can carry 4 cameras. The main camera can support up to 25MP pixels, and the secondary camera can support up to 16MP pixels
Product Details
Frequency Bands
SIM8970EU:
LTE-FDD B1/B3/B5/B7/B8/B20/B28
LTE-TDD B38/B40/B41
WCDMA B1/B5/B8
GSM 900/1800
2CA B1-B1,B3-B3,B1-B3,B38-B38,B40-B40,B41-B41
SIM8970NA:
LTE-FDD B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE-TDD B41
WCDMA B2/B4/B5
2CA 2C,5B,7C,12B,66B,66C,41C2A-2A,4A-4A,5A-5A,7A-7A,12A-12A,25A-25A,66A-66A,41A-41A,2A-4A,2A-66A
SIM8070(No 4G) 2.4G /5G 802.11 a/b/g/n/ac BT 5.x BLE
Data Transfer
LTE:50Mbps(UL)
300Mbps(DL)
HSPA+:5.76Mbps(UL)
42 Mbps (DL)
UMTS 384Kbps(UL/DL)
EDGE 236.8Kbps(UL/DL)
GPRS 85.6Kbps (UL/DL)
Interface
LCM:
4-lane MIPI_DSI
FHD 2520 * 1080 @ 60fps
DP1.4 over USB Type-C for Dual Independent Display
Capacitive Touch Panel
Camera
3 groups of Mipi_ CSI
Combined dphy 1.2 / cphy 1.0
Configurable to 3 or 4 cameras up to 25MP pixels
Audio
2 channel digital mic interface
3 channel analog audio input & output
4 digital microphones
USB Compliant with USB 3.1/2.0
UART *6
I2C *9
SPI *4
ADC *2
UIM Card *2, dual cards dual standby
GPIO ≥*40
Charging QC3.0
Antenna Main & Diversity & GNSS & Wi-Fi/BT
LCM:
4-lane MIPI_DSI
FHD 2520 * 1080 @ 60fps
DP1.4 over USB Type-C for Dual Independent Display
Capacitive Touch Panel
Camera
3 groups of Mipi_ CSI
Combined dphy 1.2 / cphy 1.0
Configurable to 3 or 4 cameras up to 25MP pixels
Audio
2 channel digital mic interface
3 channel analog audio input & output
4 digital microphones
USB Compliant with USB 3.1/2.0
UART *6
I2C *9
SPI *4
ADC *2
UIM Card *2, dual cards dual standby
GPIO ≥*40
Charging QC3.0
Antenna Main & Diversity & GNSS & Wi-Fi/BT
General Feature
WLAN 2.4G /5G 802.11 a/b/g/n/ac
BT BT 5.x BLE
GNSS BeiDou/GPS/GLONASS
Supply Voltage 3.4V ~ 4.4V
Memory 64GB eMMC + 4GB LPDDR4x
128GB UFS + 64GB LPDDR4x
Temperature Range -30℃ ~ +75℃

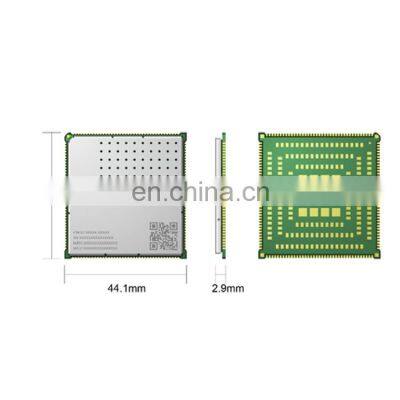

Dimensions 44.1*45.6*2.9mm
Form Factor LCC+LGA
Weight Approx. 13.5g
Certifications
RoHS/REACH/CE
Media & Software Feature
USB Drive Win7/Win8/Win10
Operating System Android 10/11
Video encoding and decoding
Encode: 4K30 HEVC/H264/VP8/MPEG4 Decode: 4K30 8-bit: H.264/VP8/VP9 4K30 10-bit: HEVC Wireless display(decode + encode): 4Kp30 Dec
+ 1080p30 Enc
Audio encoding and decoding
G.711, G.729A/AB; EVRC, EVRC-B, EVRC-WB; AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR; GSM-EFR/-FR/-HR; MP3; AAC; He-AAC v1, v2; WMA 9/Pro;
Dolby AC-3, eAC-3, DTS-HD, FLAC, APE, ALAC, AIFF
Firmware Upgrade USB/OTA/TF card
WLAN 2.4G /5G 802.11 a/b/g/n/ac
BT BT 5.x BLE
GNSS BeiDou/GPS/GLONASS
Supply Voltage 3.4V ~ 4.4V
Memory 64GB eMMC + 4GB LPDDR4x
128GB UFS + 64GB LPDDR4x
Temperature Range -30℃ ~ +75℃
Dimensions 44.1*45.6*2.9mm
Form Factor LCC+LGA
Weight Approx. 13.5g
Certifications
RoHS/REACH/CE
Media & Software Feature
USB Drive Win7/Win8/Win10
Operating System Android 10/11
Video encoding and decoding
Encode: 4K30 HEVC/H264/VP8/MPEG4 Decode: 4K30 8-bit: H.264/VP8/VP9 4K30 10-bit: HEVC Wireless display(decode + encode): 4Kp30 Dec
+ 1080p30 Enc
Audio encoding and decoding
G.711, G.729A/AB; EVRC, EVRC-B, EVRC-WB; AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR; GSM-EFR/-FR/-HR; MP3; AAC; He-AAC v1, v2; WMA 9/Pro;
Dolby AC-3, eAC-3, DTS-HD, FLAC, APE, ALAC, AIFF
Firmware Upgrade USB/OTA/TF card
