GPS Module SIMCom SIM28ML
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New&Original SIMCom SIM39EA GPS Antenna Module, GPS Module With AntennaNegotiableMOQ: 1 -
150Mbps/50Mbps LTE Cat.4 4G Module EC25-A Mini PCIeNegotiableMOQ: 1
-
GPS GNSS Module Support GPS GLONASS Galileo/Beidou QZSS Compatible With L80 L80-R GNSS Module LC86 LC86L LC86LC LC86CNegotiableMOQ: 1
-
850/900/1800/1900MHz GPRS/GSM Module SIMCom R800CNegotiableMOQ: 1
-
GPS+GLONASS+BeiDou+Galileo+QZSS GNSS Module GPS L76 L76-M33NegotiableMOQ: 1
Description

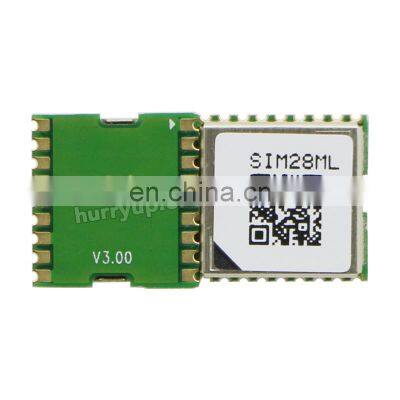

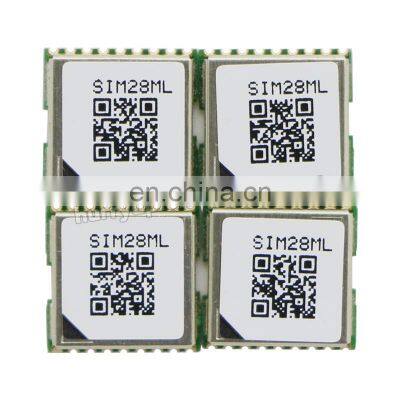

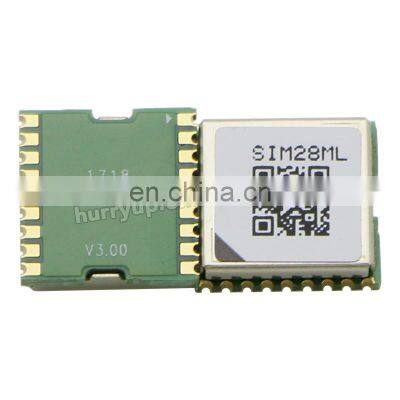

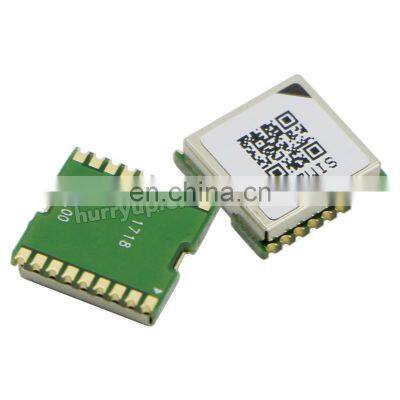

SIMCOM GPS Module SIM28ML
SIMCom presents a small, high performance and reliable GPS module-SIM28ML. This is a standalone L1 frequency GPS module in a SMT type and it is designed with MTK high sensitivity navigation engine, which allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.
Mechanical data
•Dimensions 10.1*9.7*2.5mm
•Weight 0.5g
Features
•Support EPOTM orbit prediction
•Support EASYTM self-generated orbit prediction
•Support Jamming Removing
•Low-noise amplifier has been integrated
Electrical data
•Power supply 2.8~4.3V
•Backup power 2.0~4.3V
•Power consumption
Acquisition 17mA
Tracking 16mA
Backup 8uA
•Antenna type Active and passive
•Antenna power External
Interfaces
•Serial interfaces
•Digital I/O
UART
GPIO
TIMEMARK (PPS)
•Protocols
NMEA
PMTK
Performance data
•Receiver type:22 tracking/66 acquisitionchannel GPS receiver
•Max update rate 5Hz
•Sensitivity1
Tracking:-165 dBm
Reacquisition:-160 dBm
Cold starts:-148 dBm
•Time-To-First-Fix2
Cold starts 32 s (typical)
Warm starts 3s
Hot starts <1s
EPO Assist 13s（CTTFF)
• Accuracy
Automatic Position3 2.5m CEP
Speed4 0.1m/s
•Operation temperature -40℃~+85 ℃
Certifications
•CE
•ROHS
•REACH
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
-----------------------
1.Demonstrated in liberary
2.All SV @ –130 dBm
3.50% 24 hr static, -130dBm
4.50%@ 30m/s
5. @3.3V with a passive antenna
•Dimensions 10.1*9.7*2.5mm
•Weight 0.5g
Features
•Support EPOTM orbit prediction
•Support EASYTM self-generated orbit prediction
•Support Jamming Removing
•Low-noise amplifier has been integrated
Electrical data
•Power supply 2.8~4.3V
•Backup power 2.0~4.3V
•Power consumption
Acquisition 17mA
Tracking 16mA
Backup 8uA
•Antenna type Active and passive
•Antenna power External
Interfaces
•Serial interfaces
•Digital I/O
UART
GPIO
TIMEMARK (PPS)
•Protocols
NMEA
PMTK
Performance data
•Receiver type:22 tracking/66 acquisitionchannel GPS receiver
•Max update rate 5Hz
•Sensitivity1
Tracking:-165 dBm
Reacquisition:-160 dBm
Cold starts:-148 dBm
•Time-To-First-Fix2
Cold starts 32 s (typical)
Warm starts 3s
Hot starts <1s
EPO Assist 13s（CTTFF)
• Accuracy
Automatic Position3 2.5m CEP
Speed4 0.1m/s
•Operation temperature -40℃~+85 ℃
Certifications
•CE
•ROHS
•REACH
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
-----------------------
1.Demonstrated in liberary
2.All SV @ –130 dBm
3.50% 24 hr static, -130dBm
4.50%@ 30m/s
5. @3.3V with a passive antenna
