850/900/1800/1900MHz GPRS/GSM Module SIMCom R800C

850/900/1800/1900MHz GPRS/GSM Module SIMCom R800C thumbnail-1
850/900/1800/1900MHz GPRS/GSM Module SIMCom R800C thumbnail-2
850/900/1800/1900MHz GPRS/GSM Module SIMCom R800C photo-1
850/900/1800/1900MHz GPRS/GSM Module SIMCom R800C photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Hurryup Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description

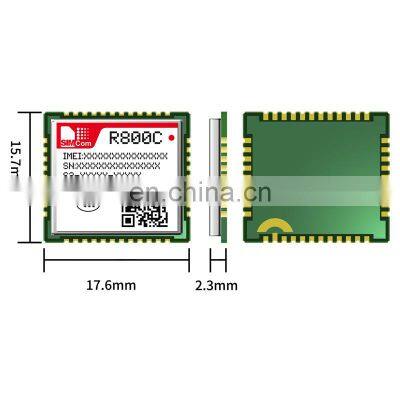

GSM/GPRS Module R800C is a dual-band GSM/GPRS module that supports GPRS data transmission rate up to 85.6kbps, with powerful expansion capabilities and rich interfaces, including UART, USB2.0, GPIO, etc. This module provides great flexibility and easy integration capabilities for customers' applications. Product advantage ● Very small size dual-band GSM/GPRS module ● LCC package, compatible with SIM800C block package ● Very low power consumption ● Built-in TCP/UDP network protocol General characteristics • Supported frequency band: 900/1800MHz • GPRS multi-slot class: 12/10 • Size: 17.6*15.7*2.3mm • Weight: 1.3±0.1g • Supply voltage: 3.4 ~ 4.4V • Operating temperature: -40℃ ~85℃ • GPRS mobile station class B • Meet GSM phase 2/2+ standard: Class 4 (2W @ 850/900MHz) – Class 4 (2W @ 900MHz) – Class 1 (1W @ 1800MHz) • Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT command set) • Low power consumption data transmission • GPRS class 12: Uplink/Downlink up to 85.6Kbps • Support PBCCH • Coding schemes CS 1, 2, 3, 4 • PPP-stack • Support USSD SMS • Peer-to-peer MO and MT • SMS broadcast • Text and PDU modes Software features • 0710 MUX protocol • Built-in TCP/UDP protocol • FTP/HTTP/MQTT/NTP • Base Station Location* • SSL/TLS* • TTS* • EAT* hardware interface • Analog voice interface • Serial • SIM card (1.8V/3V) • Support RTC • Analog voice • ADC • GPIO • Antenna: GSM Certification • 3C/SRRC/NAL
• CE/FCC
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products? A1. Minimum order quantity starts from ONE piece. Q2. What's the quality of your products? A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products. Q3. Is this product free of shipping or free samples? A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
