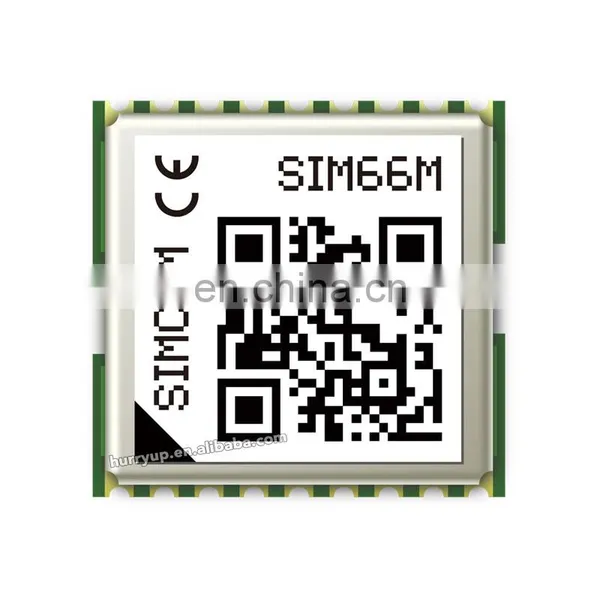

SIMCom SIM66M GNSS Module Integrated With GPS GLONASS Galileo

SIMCom SIM66M GNSS Module Integrated With GPS GLONASS Galileo thumbnail-1
SIMCom SIM66M GNSS Module Integrated With GPS GLONASS Galileo thumbnail-2
SIMCom SIM66M GNSS Module Integrated With GPS GLONASS Galileo photo-1

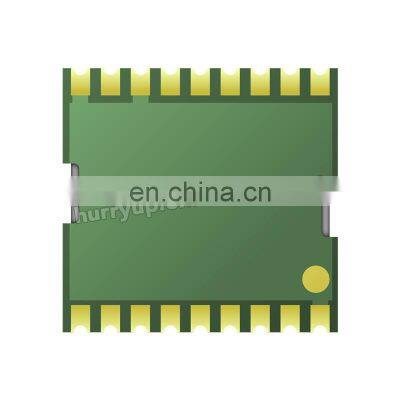

SIMCom SIM66M GNSS Module Integrated With GPS GLONASS Galileo photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Hurryup Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description
SIM66M SIM66M is a high performance and  reliable GNSS module. It is a GNSS module integrated with GPS, GLONASS& Galileo*  system in a LCC type with unicorecomm's high sensitivity navigation engine, which allows customer to achieve  industry's high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption. Product Advantages - Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS) - Support Jamming Removing - Low-noise amplifier has been integrated
Mechanical data
Interfaces
• Dimensions : 10.1*9.7*2.5mm
• Weight : 0.46g±0.01g
Serial interfaces：UART PPS
Digital I/O：BLK input
Protocols：NEMA
Performance data
Features
Receiver type：46tracking/64
acquisition-channel GNSS receiver
Max. update rate：1Hz
Sensitivity¹：
Tracking：-160dBm
Reacquisition：-158dBm
Cold starts：-147dBm
Time-To-First Fix²：
Cold starts：29s
Hot starts：<2s
Accuracy：
Automatic Position³：<2.5m CEP
Speed⁴：0.1m/s
Operation temperature5：-40℃~+85 ℃
Support GPS/GLONASS/Galileo*
(L1 Band Receiver 1575.42MHz)

Support SBAS ranging
(WAAS, EGNOS, GAGAN, MSAS)
Support Jamming Removing
Low-noise amplifier has been integrated
Electrical data
Certifications
Power supply：3.2V~4.0V
Backup Power：1.4V~3.6V
Power consumption2,6：
Acquisition：27mA
Tracking：28mA
Backup：60uA
Antenna type：Active and passive
Antenna power：External or internal VCC_RF
• CE*
• RoHS/REAC
