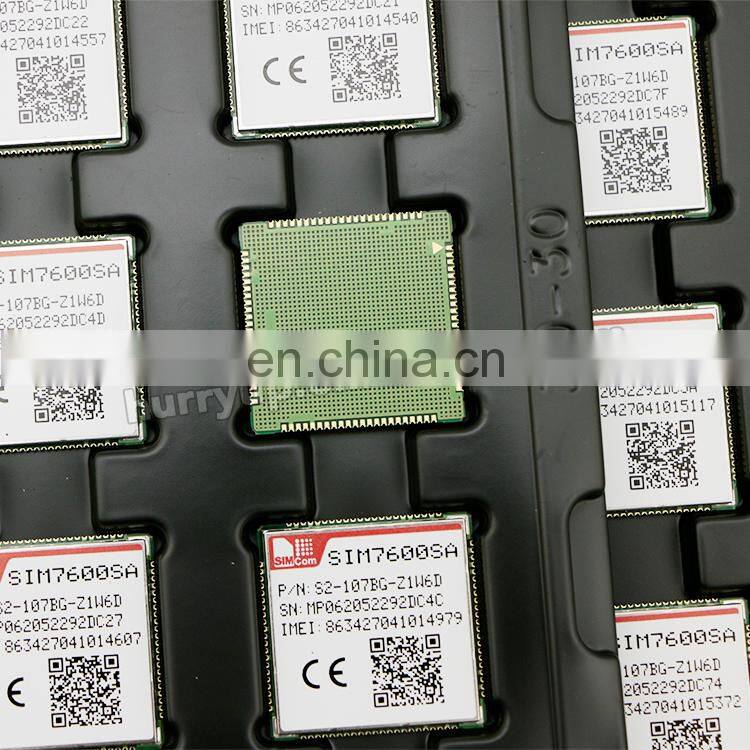

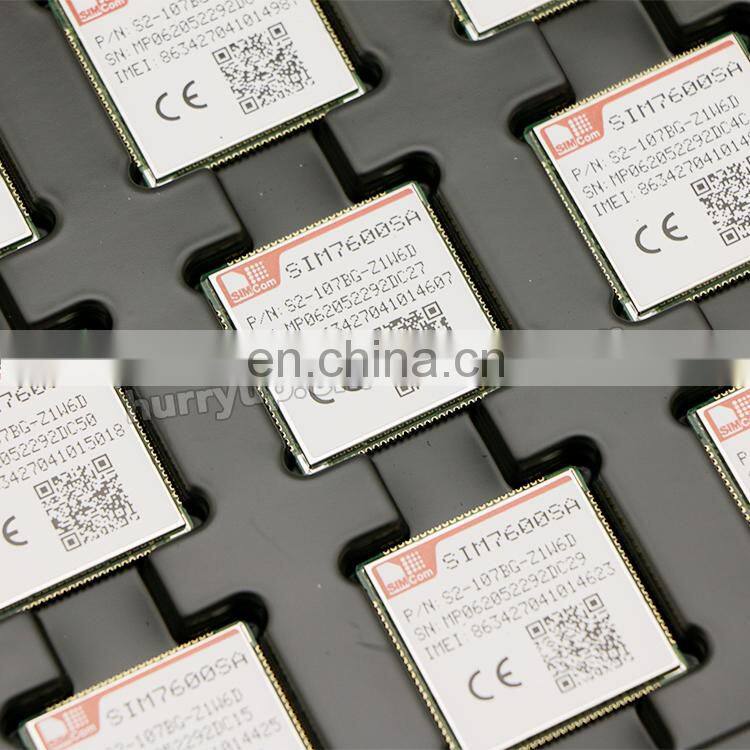

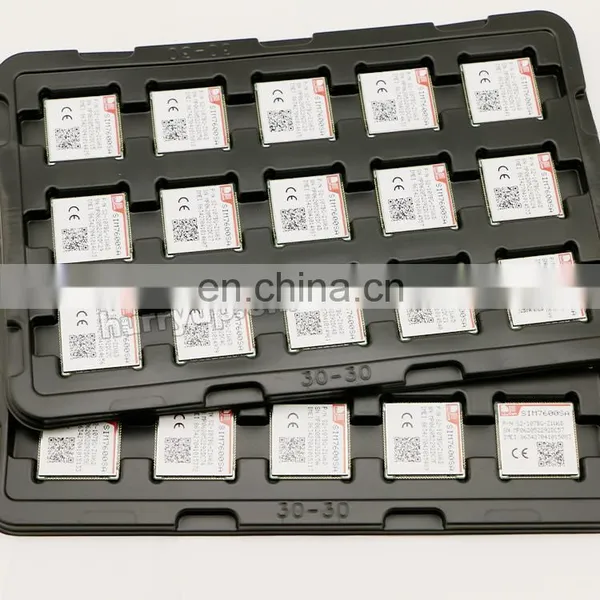

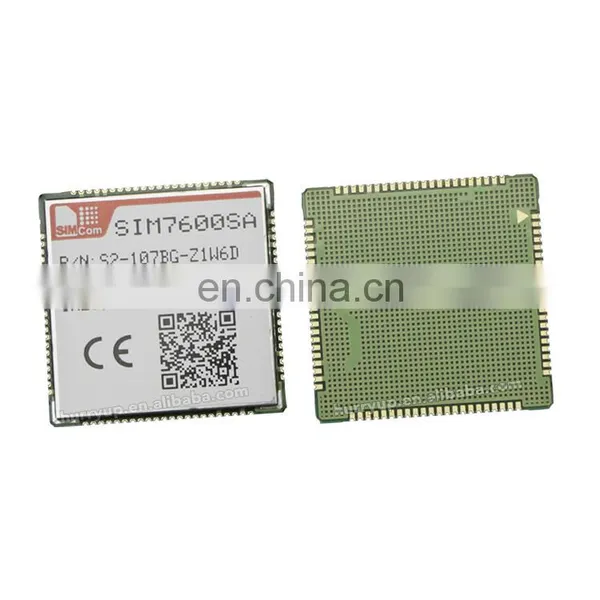

Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 10Mbps/5Mbps 4G LTE Cat.1 Module SIMCom SIM7600SA
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCom SIM66M GNSS Module Integrated With GPS GLONASS GalileoNegotiableMOQ: 1 -
SIMCom SIM68D L1+L5 Dual Band GNSS Module GPS/GLONASS/BeiDou/Galileo/QZSSNegotiableMOQ: 1
-
GPS GNSS Module NEO-M8N-0-10 NEO-M8M-0-10 NEO-M8N NEO-M8MNegotiableMOQ: 1
-
SIM7090 LPWA Module Supports Cat-M/Cat-NB Wireless Communication Modes SIM7090GNegotiableMOQ: 1
-
SIMCom SIM68M GPS GLONASS GNSS ModuleNegotiableMOQ: 1
Description
• SIM7600X is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/WCDMA/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT1up to 10Mbps for downlink and 5Mbps for uplink data transfer.
• Designed in the compact and unified form factor, SIM7600X is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600X-H module, which allows customer to design their application once for different technology and benefit from great development time-saving.
General features
Variant for EMEA/Korea/Thailand
SIM7600E:
• LTE-TDD B38/B40/B41
• LTE-FDDB1/B3/B5/B7/B8/B20
• UMTS/HSPA+ B1/B5/B8
• GSM/GPRS/EDGEB3/B8
Variant for North America
SIM7600A:
• LTE-FDDB2/B4/B12
• UMTS/HSPA+ B2/B5
Variant for Australia/New Zealand/South America
SIM7600SA:
• LTE-TDDB40
• LTE-FDDB1/B2/B3/B4/B5/B7/B8/B28
• UMTS/HSPA+ B1/B2/B5/B8
• GSM/GPRS/EDGE850/900/1800/1900MHz
Specifications for Data transfer
• LTE CAT1
-Uplink up to 5Mbps
-Downlink up to 10Mbps
• HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
• WCDMA
-Uplink/Downlink up to 384Kbps
• EDGE
-Uplink/Downlink up to 236.8Kbps
• GPRS
-Uplink/Downlink up to 85.6Kbps
Variant for EMEA/Korea/Thailand
SIM7600E:
• LTE-TDD B38/B40/B41
• LTE-FDDB1/B3/B5/B7/B8/B20
• UMTS/HSPA+ B1/B5/B8
• GSM/GPRS/EDGEB3/B8
Variant for North America
SIM7600A:
• LTE-FDDB2/B4/B12
• UMTS/HSPA+ B2/B5
Variant for Australia/New Zealand/South America
SIM7600SA:
• LTE-TDDB40
• LTE-FDDB1/B2/B3/B4/B5/B7/B8/B28
• UMTS/HSPA+ B1/B2/B5/B8
• GSM/GPRS/EDGE850/900/1800/1900MHz
Specifications for Data transfer
• LTE CAT1
-Uplink up to 5Mbps
-Downlink up to 10Mbps
• HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
• WCDMA
-Uplink/Downlink up to 384Kbps
• EDGE
-Uplink/Downlink up to 236.8Kbps
• GPRS
-Uplink/Downlink up to 85.6Kbps
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• USB Audio and VoLTE
• FOTA
Interfaces
• USB2.0 with High speed up to 480Mbps
• UART
• GPIO
• Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
• (U)SIM card (1.8V/3.0V)
• Digital Audio through PCM
• MMC/SD
• ADC
• GNSS: GPS/GLONASS/Beidou/Galileo*
Certifications(Plan)
• RoHS Compliant
• CE(SIM7600E/SIM7600SA* )
• FCC/PTCRB/AT&T* (SIM7600A)
• ACMA* (SIM7600SA)
*Under Development/Testing
• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• USB Audio and VoLTE
• FOTA
Interfaces
• USB2.0 with High speed up to 480Mbps
• UART
• GPIO
• Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
• (U)SIM card (1.8V/3.0V)
• Digital Audio through PCM
• MMC/SD
• ADC
• GNSS: GPS/GLONASS/Beidou/Galileo*
Certifications(Plan)
• RoHS Compliant
• CE(SIM7600E/SIM7600SA* )
• FCC/PTCRB/AT&T* (SIM7600A)
• ACMA* (SIM7600SA)
*Under Development/Testing
