EC21-AUX IoT/M2M-Optimized LTE Cat 1 Module 10Mbps/5Mbps, GNSS Optional GSM UMTS LTE Module EC21 AUX

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

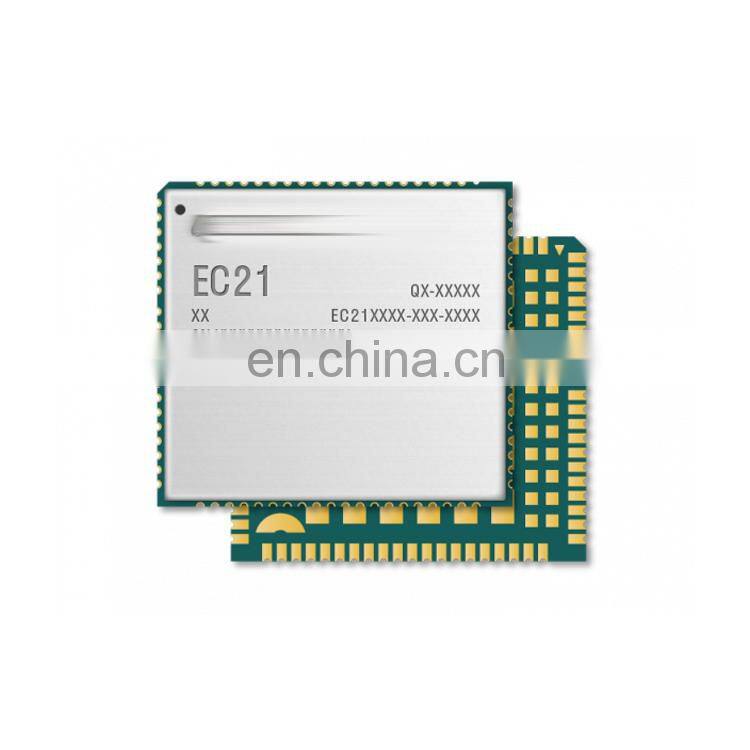

LTE EC21-AUX ● LTE category 1 module ● 32.0mm × 29.0mm × 2.4mm ● LCC form factor ● Max. downlink 10Mbps / uplink 5Mbps ● Extended temperature range of -40°C to +85°C

Overview ● The EC21-AUX is an LTE category 1 module in an LCC form factor measuring 32.0mm x 29.0mm x 2.4mm, which meets the 3GPP Release 12 standard. The EC21-AUX is compatible with UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC25, EC20 R2.0, EC20 R2.1, EG25-G and EG21-G modules. It is therefore backward-compatible with existing EDGE and GSM/GPRS networks, enabling easy migration between LTE and 2G or 3G. The EC21-AUX is optimized for networks in Australia, New Zealand and Latin America. ● The EC21-AUX provides cost-effective, low-power LTE connectivity, delivering maximum downlink rates of 10Mbps and uplink rates of 5Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. This makes the series ideal for IoT applications which are not reliant on high-speed connectivity but do require the longevity and reliability of LTE networks. ● The EC21-AUX supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo), and the integrated GNSS greatly simplifies product design, and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, and security systems.

Key Features ● Compatible with UMTS/HSPA+ UC20 and UC200T modules, and multi-mode LTE Standard EC25, EC20 R2.0, EC20 R2.1, EG25-G and EG21-G modules ● Supports Qualcomm® IZat™ location technology Gen8C Lite ● Supports DFOTA ● Supports DTMF ● Supports MIMO ● Multi-constellation GNSS receiver

Variants for EMEA/Korea/Thailand ● EC21-E: LTE FDD: B1/B3/B5/B7/B8/B20 WCDMA: B1/B5/B8 GSM: B3/B8 ● EC21-EU: LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 ● EC21-EC: LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8

Variants for North America ● EC21-A: LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 ● EC21-V: LTE FDD: B4/B13

Variants for Australia/New Zealand/Taiwan/Brazil ● EC21-AU: LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 ● EC21-AUT: LTE FDD: B1/B3/B5/B7/B28 WCDMA: B1/B5 ● EC21-AUV: LTE FDD: B1/B3/B5/B8/B28 WCDMA: B1/B5/B8

Variant for Japan ● EC21-J: LTE FDD: B1/B3/B8/B18/B19/B26

Variant for Korea ● EC21-KL: LTE FDD: B1/B3/B5/B7/B8

Variant for China ● EC20-CEL: LTE FDD: B1/B3/B5

Why Choose Us

FAQ

Q1. What is the minimum order quantity for your products? A1. Minimum order quantity starts from ONE piece. Q2. What's the quality of your products? A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products. Q3. Is this product free of shipping or free samples? A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
