Product Description

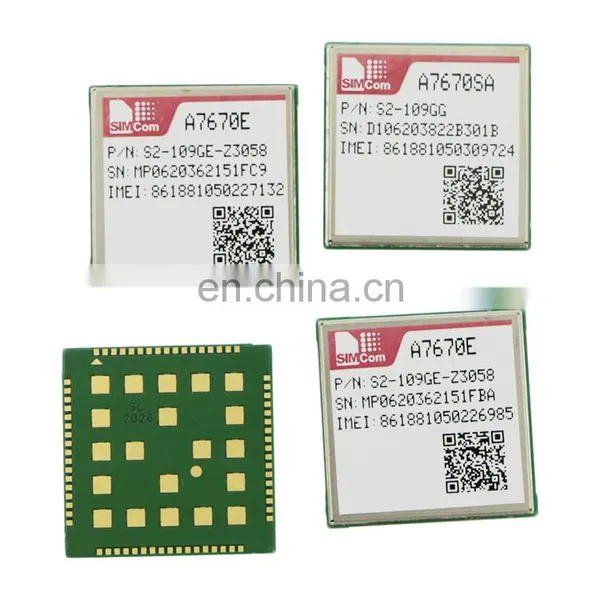

A7670X
The A7670X is Multi-Band LTE-FDD/LTE-TDD/GSM/ GPRS/EDGE module solution in a SMT type which supports LTE CAT1 up to 10Mbps data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
The package of A7670X is LGA. The package of A7670X is compatible with SIM7070 Series. This also minimize the investments of customers, and enables a short time-to-market.
It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
- Small Size LTE Cat1 Module.
- LGA package with rich interfaces.
- Suitable for LTE and GSM networks.
- Rich software functions: FOTA, LBS, SSL.
- The package of A7670X is compatible with SIM7070 Series.
Frequency Bands |
Data Transfer |
• A7670C: LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 GSM 900/1800MHz • A7670E: LTE-FDD B1/B3/B5/B7/B8/B20 GSM 900/1800MHz • A7670SA: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900MHz • Temperature:-40℃ ~ +85℃ |
• LTE(Mbps):10(DL)/5(UL) GPRS/EDGE(Kbps):236.8(DL)/236.8(UL) |
Interfaces |
Software Features |
•SIM Card:1.8V/3.0V |
•Protocol:TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS •Android RIL:Android 5.0/6.0/7.0/8.0/9.0 •USB Driver:Microsoft Windows2000/XP/Vista/ Win7/Win8/Win10/Linux/Android Firmware Upgrade:USB/FOTA |
Electrical Features |
Certification |
Supply Voltage:3.4V~ 4.2V Power Consumption(mA)-LTE:TBD Power Consumption(mA)-GSM,BS_PA_MFRMS=2:TBD |
A7670C • CCC*/TA*/CTA* A7670E • CE-RED*/RoHS*/ REACH* A7670SA • CE-RED*/RCM*/FCC*/Anatel*/RoHS*/ REACH* |
