Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > SIMCOM SIM7912G SIM7912 M2 Type LTE Cat12 Module, 4G LTE Module LTE SIM7912G-M2
SIMCOM SIM7912G SIM7912 M2 Type LTE Cat12 Module, 4G LTE Module LTE SIM7912G-M2
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIMCOM LTE Cat.6 Module A7906E A7906, SIMCOM A7906E-M2 Multi-Band LTE-FDD/LTE-TDD/HSPA+ ModuleNegotiableMOQ: 1 -
Sierra 4G LTE MC7304 Wireless Quad-band Embedded ModulesNegotiableMOQ: 1
-
SIERRA EM7455 FDD/TDD LTE Cat6 4G M2 Module M.2 LTE 4G Card For LaptopNegotiableMOQ: 1
-
Sierra MC7455 M2M Module Optimized 4G LTE Cat-6 IoT Connectivity With 3G Fallback for the Americas and EMEANegotiableMOQ: 1
-
2.5Gbps/900Mbps 5G Module RM500Q-GL, New and Original Module 5G Sub-6GHz RM500Q GLNegotiableMOQ: 1
Description

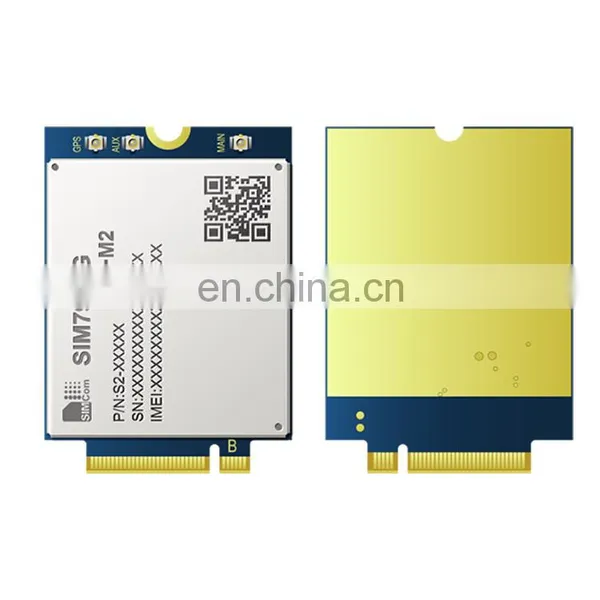

SIMCom SIM7912G-M2 LTE Cat 12 Module
• SIM7912G-M2 is the LTE Cat 12 module which supports wireless communication modes of LTETDD/LTE-FDD/HSPA+. It supports maximum 600Mbps downlink rate and 75Mbps uplink rate.

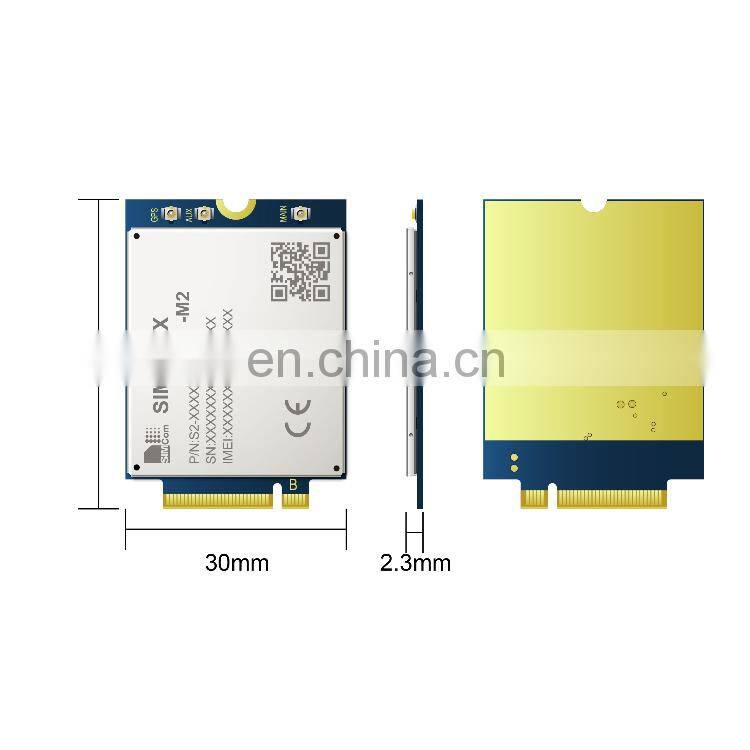

• SIM7912G-M2 adopts M.2 form factor. It is easy for customers to integrate.
• SIM7912G-M2 integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600/SIM7906 series modules.
• Meanwhile SIM7912G-M2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Key Benefits
• M.2 interface with strong compatibility
• Suitable for LTE, HSPA+ networks with global coverage
• Abundant software functions: FOTA, SSL, TLS
• Multi-constellation GNSS receiver support
• AT commands of SIM7912G-M2 are compatible with the SIM7500/SIM7600/SIM7906 series modules
General Features |
Interfaces |
• Supply voltage range: 3.135V~ 4.4V; Typ: 3.7V • Control Via AT Commands • Operation temperature: -30℃ to +70℃ • Dimensions: 42.0*30.0*2.3mm • Weight: 6.1g • LTE-TDD/LTE-FDD/WCDMA • Support DL 3XCA • GNSS (GPS;GLONASS and BeiDou) |
• USB3.0 x1 (high-speed) • USB2.0 x1 (high-speed) • UART x1 (4-wire UART ) • SIM card x1 (1.8V and 3V) • PCIE x1 • PCM x1 • I2C x1 • GPIO x1 • Antenna x3 |
Data |
Certification |
• Uplink up to 50Mbps • Downlink up to 600Mbps |
• RoHSREACHJATETelecRCM |
Other Features |
|
• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10 • USB Driver for Linux /Android • RIL supporting for Android 2.3/4.0/5.0/6.0/7.0* • MBIM to Win8 • Firmware update via USB • FOTA* • TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS • SSL3.0/TLS1.0/TLS1.2* (* under development) |
Frequency |
||
LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66 |
|
LTE-TDD |
B38/B39/B40/B41 |
|
DL 2XCA |
B1+3/5/18/19/20/26;B2+2/4/5/12/13/17/29/30/66;B3+3/5/7/8/19/20/28;B4+4/5/12/13/1 7/29/30;B5+7/30/66;B7+7/20/28;B12+30;B13+66;B20+B32;B29+30;B38+38;B39+39; B39+41;B40+40;B41+41;B66+66/12/29/30/5; (Note: B29; B32 is only for secondary component carrier) |
|
DL 3XCA |
DL inter-band 3CA: B1+3+5/8/19/20/28;B1+7+20;B2+4+5;B2+4+13; B2+5+30; B2+12+30;B2+29+30 ;B3+7+20; B3+7+28 ; B3+7+8;B4+5+30; B4+12+30; B4+29+30 ; B5+66+2; B13+66+2;B66+12+30;B66+29+30;B66+5+30; DL 2 intra-band plus inter-band 3CA: B2+2+5; B2+2+13 ;B3+3+7; B3+7+7; B3+3+20 ;B3+3+28;B3+3+1;B4+4+5; B4+4+13; B7+7+28;B5+66+66; B13+66+66; B66+66+2;B39+B39+B41; B39+B41+B41; DL 3 intra-band 3CA: B40+40+40; B41+41+41; B66+66+66 |
|
WCDMA |
B1/B2/B3/B4/B5/B8/B9/B19 |
|
