SIMCOM LTE Cat.6 Module A7906E A7906, SIMCOM A7906E-M2 Multi-Band LTE-FDD/LTE-TDD/HSPA+ Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sierra 4G LTE MC7304 Wireless Quad-band Embedded ModulesNegotiableMOQ: 1 -
SIERRA EM7455 FDD/TDD LTE Cat6 4G M2 Module M.2 LTE 4G Card For LaptopNegotiableMOQ: 1
-
Sierra MC7455 M2M Module Optimized 4G LTE Cat-6 IoT Connectivity With 3G Fallback for the Americas and EMEANegotiableMOQ: 1
-
2.5Gbps/900Mbps 5G Module RM500Q-GL, New and Original Module 5G Sub-6GHz RM500Q GLNegotiableMOQ: 1
-
5G Module RM500Q-GL 2.5Gbps/900Mbps, RM500Q GL 5G Sub-6GHz M.2 ModuleNegotiableMOQ: 1
Description
A7906E-M2
● The A7906E-M2 is Multi-Band LTE-FDD/LTE-TDD/HSPA+ module solution in a M.2 type which supports LTE CAT6 up to 300Mbps data transfer.
● It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
● The package of A7906E-M2 is M.2,TYPE 3042-S3-B. AT commands of A7906E-M2 are mostly compatible with SIM7500/SIM7600/SIM7906/SIM7912 Series modules. This also minmize the investments of customers, and enables a short time-to-market.
● It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Product Advantages
● Standard M.2 interface.
● High throughput data communication.
● The AT commands of A7906E-M2 are mostly compatible with SIM7500/SIM7600/SIM7906/SIM7912 Series modules.
General Features |
Other Features |

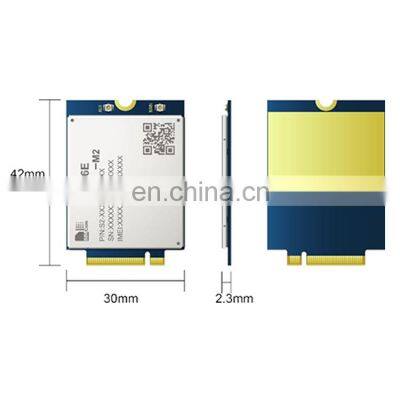

• Supply voltage range: 3.135V~ 4.4V, Typ: 3.7V • Control Via AT Commands • Operation temperature: -30℃ to +70℃ • Dimensions: 42.0*30.0*2.3mm • Weight: 6.3g • LTE-TDD/LTE-FDD/WCDMA • Support DL 2XCA |
• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10 • USB Driver for Linux /Android • RIL supporting for Android 6/7/8/9* • Firmware update via USB • TCP*/IP*/IPV4*/IPV6*/Multi-PDP*/DNS* • SSL3.0*/TLS1.0*/TLS1.2* • FOTA* |
Data |
Interfaces |
• Uplink up to 50Mbps • Downlink up to 300Mbps |
• USB2.0 x1 • UART x1 (4-wire UART ) • SIM card x1 (1.8V and 3V) • PCIE x1 • I2C x1 • Antenna x2 |
Frequency |
||
FDD-LTE |
B1/B3/B5/B7/B8/B20/B28/B32 |
|
TDD-LTE |
B38/B39/B40/B41 |
|
DL 2XCA |
B1+B1/B5/B8/B20; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B39+B39; B40+B40; B41+B41;(Note:B32 is only for secondary component carrier) |
|
WCDMA |
B1/B5/B8 |
|
