Description

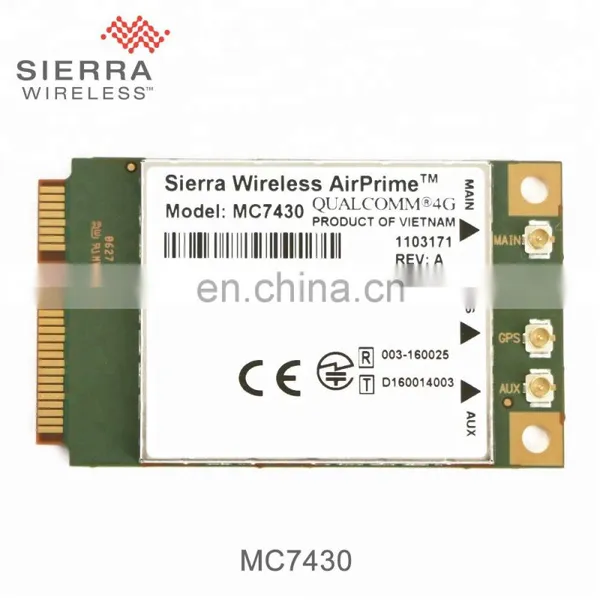

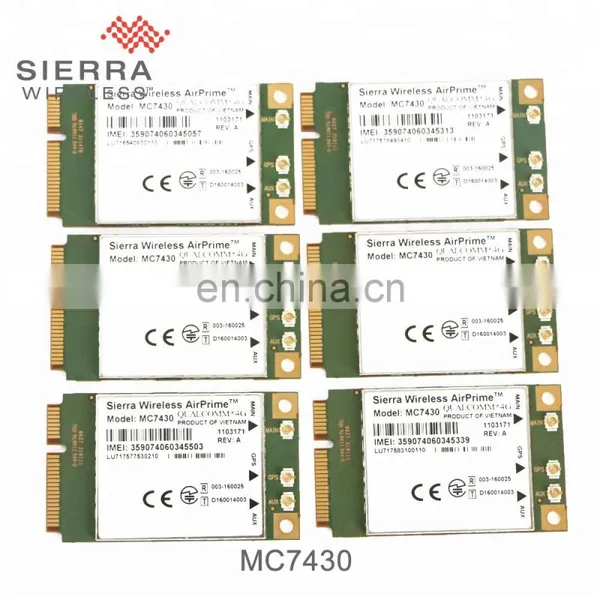

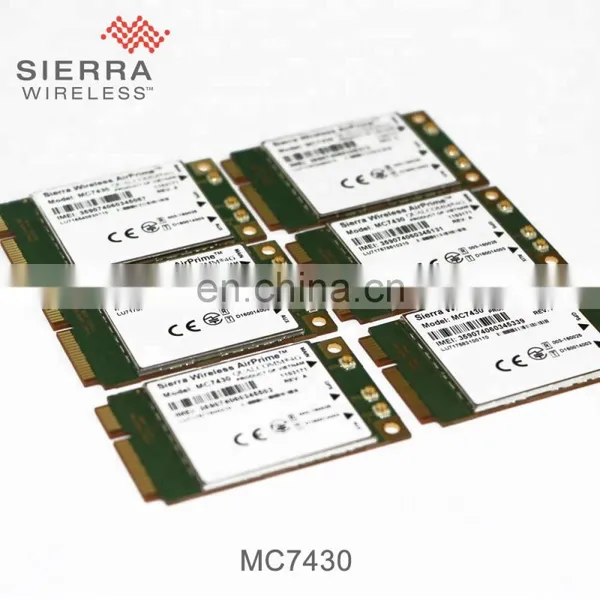

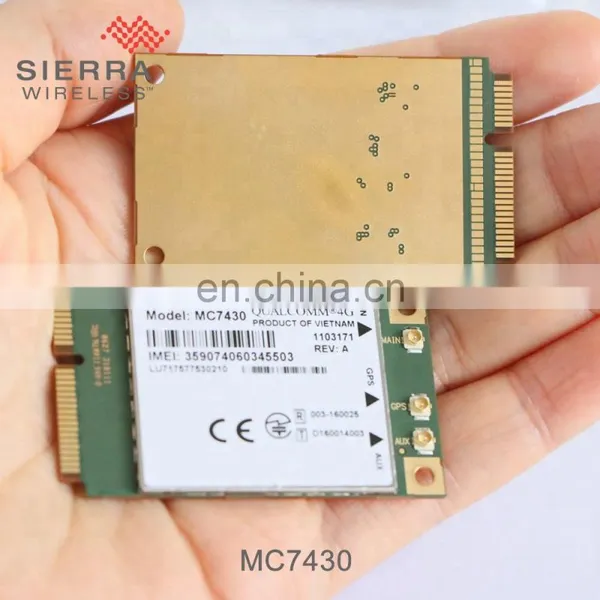

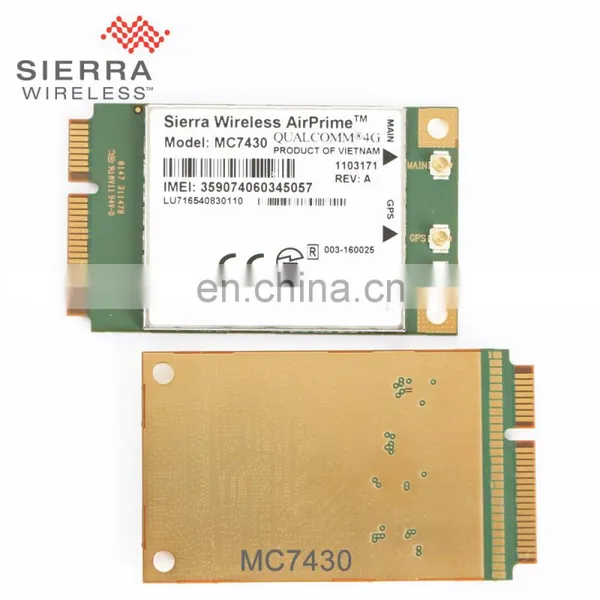

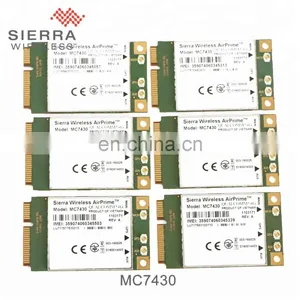

• Sierra AirPrime MC7430 PCI Express Mini Card is a compact, lightweight, wireless LTE-Advanced and UMTS based modem. It provides LTE-FDD, LTE-TDD, DC-HSPA+, TD-SCDMA, HSPA+, HSDPA, HSUPA, WCDMA, and GNSS connectivity for networking, and M2M applications over several radio frequency bands and supports 3G roaming.
• Sierra MC7430 is a 4G-LTE cat 6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Asia Pacific (APAC). Support for Carrier Aggregation (CA) and MIMO. Fall back to 3G-HSPA+DC with Rx diversity. A GNSS receiver is integrated.
Sierra Wireless AirPrime MC7430 Technical Specifications:
• Form factor: PCIe Mini Card
• Chipset: Qualcomm MDM9230
• Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS
• Support 4G bands: B1 (2100), B3 (1800), B5 (850), B7 (2600), B8 (900), B18 (850), B19 (850), B21 (1500), B28 (700), B38 (2600/TDD), B39 (1900/TDD), B40 (2300/TDD), B41 (2500/TDD)
• Support 3G bands: B1 (2100), B5 (850), B6 (800), B8 (900), B9 (1700), B19 (800), B39 (1900/TD-SCDMA)
• Support LTE Peak Data rate: DL 300 Mbps, UL 50 Mbps
• GNSS (GPS, Glonass, Beidou, Galileo*): Qualcomm
• Regulatory: JRF/JPA, NCC, CE,GCF
• Dimensions: 51 x 30 x 2.5 mm
• Supply Voltage: 3.3 V nominal
• Operating Temperature: -40°C to +85°C
• Supported Carriers: docomo, Telstra(Planned: KDDI, Softbank)
- Control, Software and Features
• Control options: AT Commands, QMI SDK, MBIM
• For optimum control the QMI SDK is recommended
• Drivers: Android, Linux, Windows
• Switch networks anytime with up to three different certified firmware variants on board.
- Connectors
• System connector: 52 position Mini PCIe
• Antenna RF connector: 3x U.FL (Main RF, Aux RF, GPS with DC bias)
- Interfaces
• 1x USB 3.0 and USB 2.0 High Speed
• 1x Wake host
• 1x Wireless disable
• 1x System RESET
• 3x Antenna Control (muxed with GPIO 1-3)
• 1x Dynamic Power Control, DPR (muxed with GPIO 4)
• 4x GPIO (muxed with Antenna control or DPR)
• 1x LED driver output
• 2x SIM interface: 1.8/3V
• 1x Digital Audio
- Audio
• Optional
• Digital audio: PCM/I2S
• 4G: VoLTE
• 3G: Circuit Switched Fall Back (CSFB voice)
