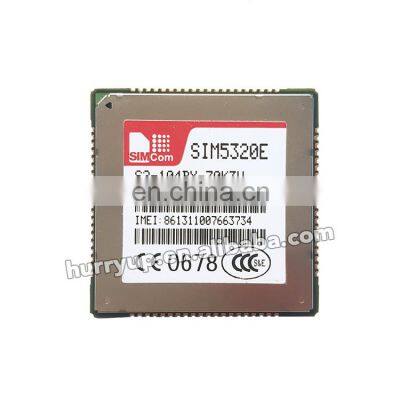

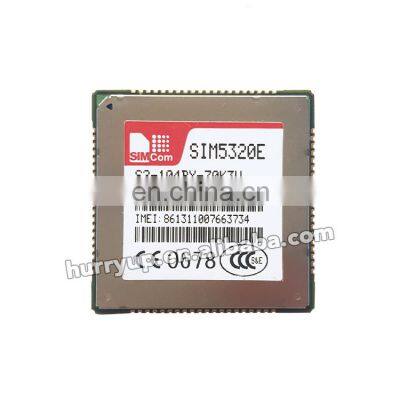

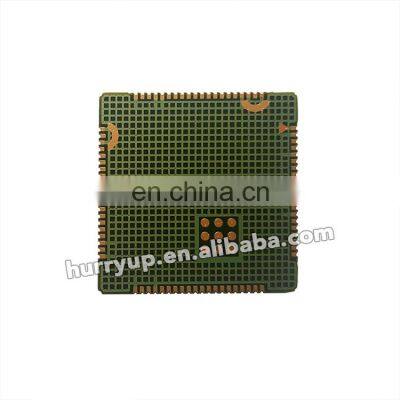

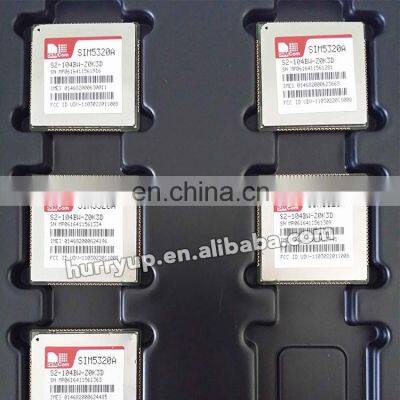

3G/HSDPA SIM 5320 Module With GPS/A-GPS
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EG91-E LTE Cat-1 Module, EG91 4G Module for IoT and M2M ApplicationNegotiableMOQ: 1 -
EG91-EX 4G LTE Module for EMEA Region LTE Cat-1 EG91NegotiableMOQ: 1
-
EG91-NA 4G LTE Module, EG91 Cellular Module for IoT ApplicationNegotiableMOQ: 1
-
BG96 LTE Cat M1 & Cat NB1 & EGPRS ModuleNegotiableMOQ: 1
-
EG91-NA 4G LTE Module, EG91 M2M IoT Module for North America RegionNegotiableMOQ: 1
Description
• The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer.
• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer's application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.
General features
SIM5320A: Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
SIM5320E: Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
SIM5320J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• WCDMA 3GPP release 5
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer's application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.
General features
SIM5320A: Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
SIM5320E: Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
SIM5320J: Dual-Band UMTS/HSDPA 850(800)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• WCDMA 3GPP release 5
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.3V~ 4.2V
• Extended Operation temperature: -30 to +85
• Dimension: 30 * 30* 2.9g
• Weight: 5.6
Specifications for GPS
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
Support embedded Script Language
• LUA Script Language
Specifications for Data transfer
HSDPA
- Max. 3.6Mbps(DL)
WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
EDGE Class:
- Max. 236.8Kbps(DL), Max. 118Kbps(UL)
GPRS
- Max. 85.6Kbps(DL), Max. 42.8Kbps(UL)
CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Specifications for Network Identity and Time zone (NITZ)
• Support in GSM and WCDMA
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista
• USB Driver for Windows CE/Mobile
• USB Driver for Linux 2.6
• Firmware update via USB
• MMS
• TCP/IP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• FOTA
• eCall Reday
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• PCM
• Supply voltage range: 3.3V~ 4.2V
• Extended Operation temperature: -30 to +85
• Dimension: 30 * 30* 2.9g
• Weight: 5.6
Specifications for GPS
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
Support embedded Script Language
• LUA Script Language
Specifications for Data transfer
HSDPA
- Max. 3.6Mbps(DL)
WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
EDGE Class:
- Max. 236.8Kbps(DL), Max. 118Kbps(UL)
GPRS
- Max. 85.6Kbps(DL), Max. 42.8Kbps(UL)
CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
Specifications for Network Identity and Time zone (NITZ)
• Support in GSM and WCDMA
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista
• USB Driver for Windows CE/Mobile
• USB Driver for Linux 2.6
• Firmware update via USB
• MMS
• TCP/IP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• FOTA
• eCall Reday
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad
• Constant current sink
• GPIO
• RTC
• ADC
• PCM
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
