SIM800 SIMCom GSM GPRS Module Quad Band 850/900/1800/1900MHz
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price Of Gsm Gps Receiver Module Sim900 Ds Mobile Phone Gps ModuleNegotiableMOQ: 1 -
SIM800A GSM/GPRS Module SIMCOM 2G ModuleNegotiableMOQ: 1
-
SIMCom SIM800C-DS Qual Band GSM/GPRS Module, With LCC and LGA PadsNegotiableMOQ: 1
-
SIMCom 850/900/1800/1900mhz Quad-band GSM GPRS Module SIM800FNegotiableMOQ: 1
-
SIM900TE-C SIMCOM SIM900 ModuleNegotiableMOQ: 1
Description

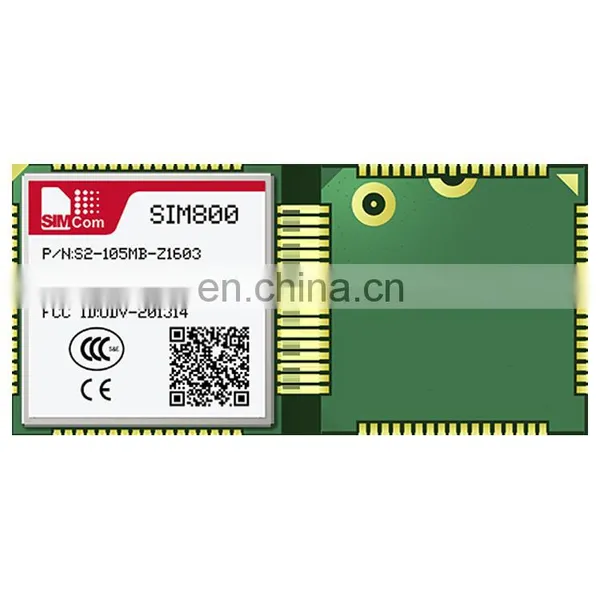

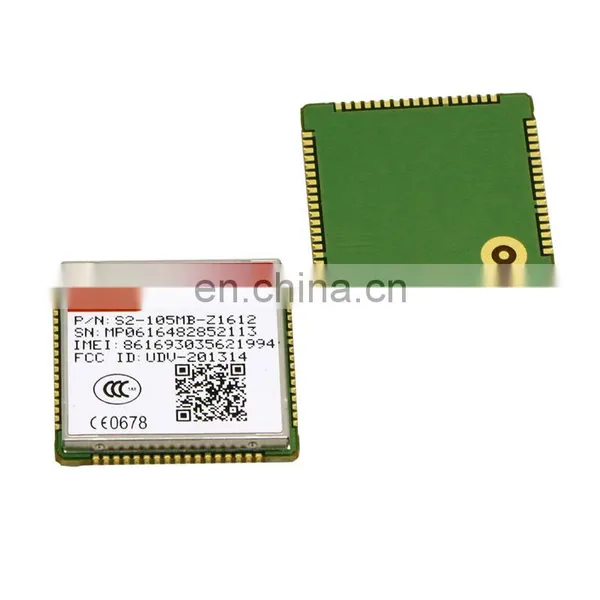

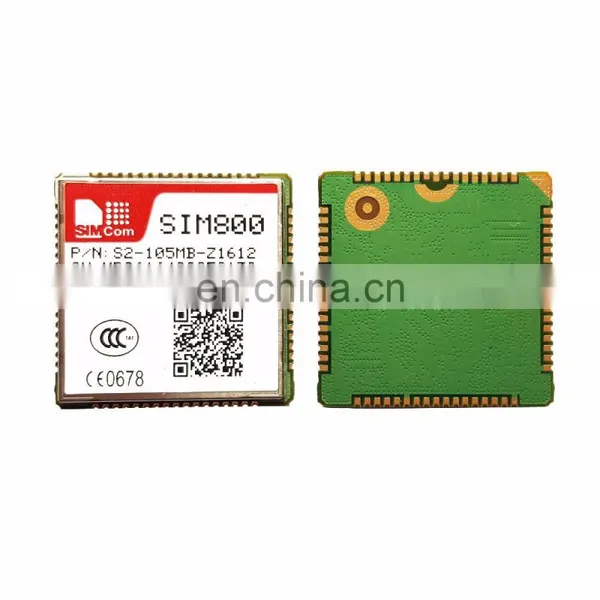

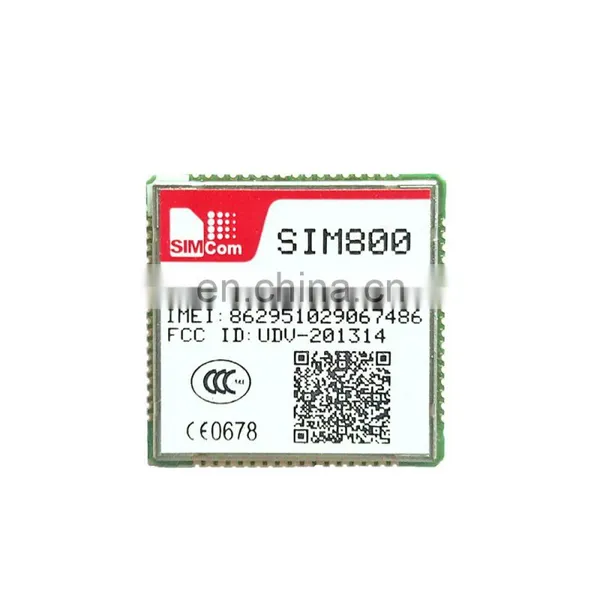

SIM800 SIMCom GSM GPRS Module Quad Band 850/900/1800/1900MHz
• SIM800 is a complete Quad-band GSM/GPRS solution in a SMT type which can be embedded in the customer applications.
• SIM800 support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.
• With tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
•Audio Record
•TTS (optional)
•Embedded AT (optional)
•Java (optional)
Specifications for voice
•Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•Hands-free operation
（Echo suppression）
Interfaces
•68 SMT pads including
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad Compatibility
•AT cellular command interface
Certifications
•CE
•GCF
•FCC
•TA
•CTA
•CCC
•ROHS
•REACH
• SIM800 support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption.
• With tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: compliant with 3.0+EDR
•Dimensions: 24*24*3mm
•Weight: 3.14g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: compliant with 3.0+EDR
•Dimensions: 24*24*3mm
•Weight: 3.14g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•DTMF
•Jamming Detection
•Audio Record
•TTS (optional)
•Embedded AT (optional)
•Java (optional)
Specifications for voice
•Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•Hands-free operation
（Echo suppression）
Interfaces
•68 SMT pads including
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad Compatibility
•AT cellular command interface
Certifications
•CE
•GCF
•FCC
•TA
•CTA
•CCC
•ROHS
•REACH
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
